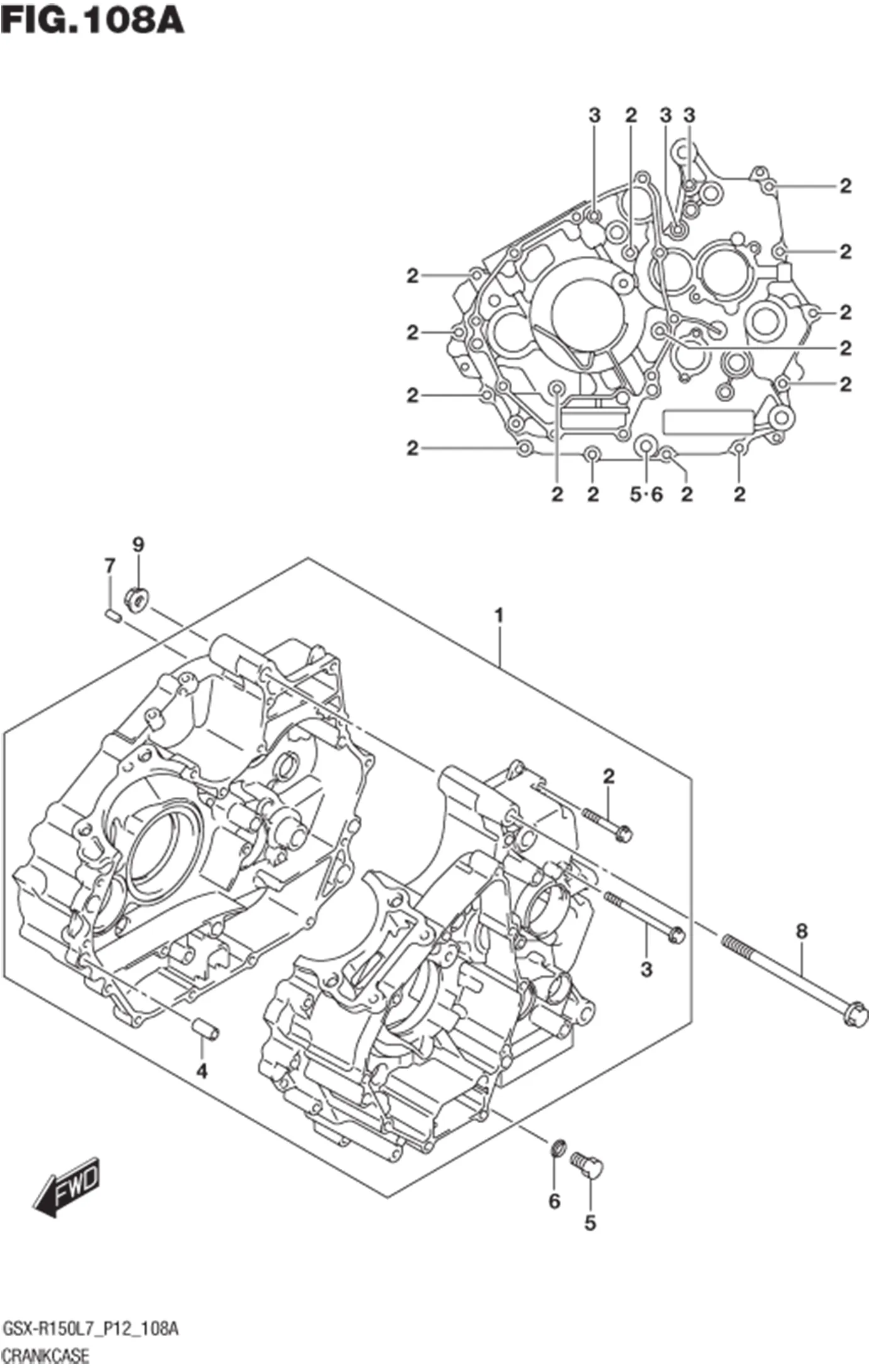

FIG.108A (1-B-5) CRANKCASE

FIG.108A (1-B-5) CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
26531-57B00-000 1 Rp459.500
DISCONTINUE
SUB: 26411-57B00-000		 1 -
DISCONTINUE
SUB: 29642-78ED0-000		 1 -
DISCONTINUE
SUB: 29641-57B00-000		 1 -
DISCONTINUE
SUB: 29723-57B00-000		 1 -
29643-85FA0-000 1 Rp169.000
29722-85FA0-000 1 Rp273.000
29645-85FA0-000 1 Rp149.000
DISCONTINUE
SUB: 29644-65D30-000		 1 -
11300-12K00-000 CRANKCASE ASSY 1 Rp1.941.000
26534-57B00-000 1 Rp464.500
26532-57B00-000 1 Rp337.000
26533-57B00-000 1 Rp598.500
DISCONTINUE
SUB: 26521-57B00-000		 1 -
26581-57B00-000 2 Rp144.000
08319-3110A-000 NUT 2 Rp4.500
09103-10723-000 BOLT (L140) 2 Rp24.000
11313-25G00-000 JET, T/M OIL GALLERY 1 Rp10.500
01500-1016A-000
SUB: 01500B1016AN000		 BOLT 1 Rp7.500
09206-10014-000 PIN (6.4X10X20) 2 Rp3.000
10 DISCONTINUE
SUB: 29986-57B00-000		 BOLT 2 -
11 09168-10L02-000
SUB: 09168B10L02N000		 GASKET, OIL DRAIN (NA) 1 Rp2.500
16 29721-85FA0-000 PISTON, 2ND BRAKE 1 Rp318.500
19 29731-57BT0-000 O RING SET, FWD CLUTCH 1 Rp142.000
20 29732-57BT0-000 O RING SET, DIRECT CLUTCH 1 Rp131.500
21 29733-57BT0-000 O RING SET, 2ND BRAKE 1 Rp138.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
