DT40W 40WR 40WK E13

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER FIG 2 CRANKSHAFT FIG 3 INLET CASE FIG 4 CARBURETOR (DT40W,40WR)FIG 5 CARBURETOR (DT40WK)FIG 6 OIL SEAL HOUSING FIG 7 EXHAUST TUBE FIG 8 FUEL PUMP (DT40W,40WR)FIG 9 FUEL PUMP (DT40WK)FIG 10 WATER PUMP FIG 11 RECOIL STARTER FIG 12 THROTTLE CONTROL (DT40W,40WR)FIG 13 THROTTLE CONTROL (DT40WK)FIG 14 CLUTCH FIG 15 TRANSMISSION FIG 16 STARTING MOTOR FIG 17 MAGNETO FIG 18 IGNITION FIG 19 ELECTRICAL FIG 20 IGNITION SWITCH FIG 21 CLAMP BRACKET FIG 22 SWIVEL BRACKET FIG 23 DRIVE SHAFT HOUSING FIG 24 GEAR CASE FIG 25 LOWER COVER FIG 26 ENGINE COVER FIG 27 ENGINE COVER (MODEL:02%10)FIG 27A ENGINE COVER (*)FIG 28 TILLER HANDLE FIG 29 FUEL TANK (DT40WK/PLASTIC/12L)FIG 30 FUEL TANK (PLASTIC/25L)FIG 31 REMOCON CABLE HOLDER (DT40WR)FIG 32 REMOTE CONTROL (DT40WR,MODEL:01%03)FIG 33 REMOTE CONTROL (DT40WR,MODEL:04%)FIG 34 OPT : STARTING MOTOR FIG 35 OPT : METER FIG 36 OPT : ELECTRICAL (MANUAL STARTER)FIG 37 OPT : ELECTRICAL (ELECTRIC STARTER)FIG 38 OPT : REMOTE CONTROL FIG 39 OPT : TILLER HANDLE FIG 40 OPT : REMOCON PARTS FIG 41 OPT : GASKET SET

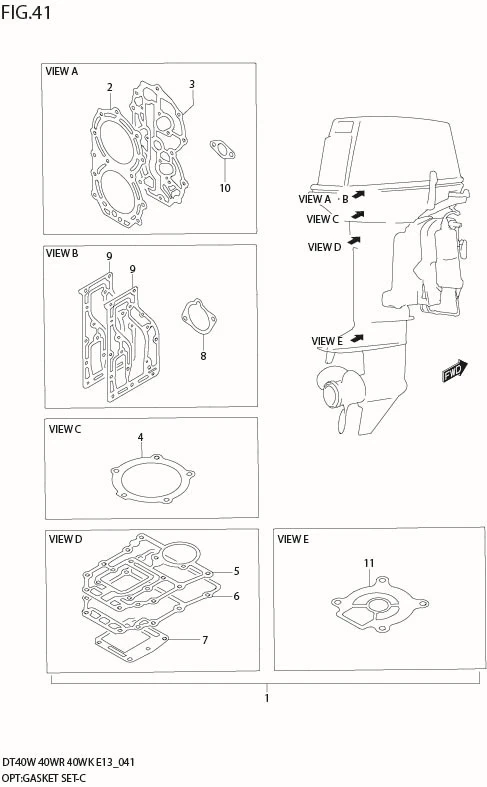

FIG 41 OPT : GASKET SET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11410-94827-000 SUB: 11410-94824-000	GASKET SET	1	Rp1.115.000
2	11141-94450-000 SUB: 11141-94441-000	?GASKET	1	Rp220.500
3	11162-92L00-000 SUB: 11162-94410-000	?GASKET	1	Rp92.500
4	11413-94411-000	?GASKET	1	Rp94.500
5	11433-94412-000	?GASKET	1	Rp361.000
6	11434-94411-000	?GASKET	1	Rp442.000
7	14212-94413-000	?GASKET	1	Rp45.000
8	13855-95210-000	?GASKET	1	Rp30.000
9	14151-94412-000 SUB: 14151-94411-000	?GASKET	2	Rp195.000
10	DISCONTINUE SUB: 16731-95310-000	?GASKET	1	-
11	17472-96304-000 SUB: 17472-96303-000	?GASKET	1	Rp24.000
12-13	99011-94469-040	MANUAL	1	-	DT40WK,MODEL:02
12-14	99011-944B0-040	MANUAL	1	Rp122.000	DT40WK,MODEL:03
12-15	99011-944B1-040	MANUAL	1	Rp122.000	DT40WK,MODEL:04
12-16	99011-944B2-040	MANUAL	1	Rp122.000	DT40WK,MODEL:05
12-17	99011-944B3-040	MANUAL	1	Rp122.000	DT40WK,MODEL:06
12-18	99011-944B4-040	MANUAL	1	Rp122.000	DT40WK,MODEL:07
12-19	99011-944B5-040	MANUAL	1	Rp150.500	DT40WK,MODEL:08
12-20	99011-944B6-040	MANUAL	1	Rp150.500	DT40WK,MODEL:09
12-21	99011-944B7-040	MANUAL	1	Rp150.500	DT40WK,MODEL:10
12-22	99011-944B8-040	MANUAL	1	Rp150.500	DT40WK:110001%
12-22	99011-944B8-040	MANUAL	1	Rp150.500	DT40WK:110001%
12-12	99011-94468-040	MANUAL	1	Rp122.000	DT40WK,MODEL:01
12-11	99011-944A9-060	MANUAL	1	Rp150.500	DT40W(WR):110001%
12-10	99011-944A8-060	MANUAL	1	Rp150.500	DT40W,MODEL:10
12-9	99011-944A7-060	MANUAL	1	Rp150.500	DT40W,MODEL:09
12-8	99011-944A6-058	MANUAL	1	Rp150.500	DT40W,MODEL:08
12-7	99011-944A5-040	MANUAL	1	Rp150.500	DT40W,MODEL:07
12-6	99011-944A3-040	MANUAL	1	Rp122.000	DT40W,MODEL:06
12-5	99011-944A2-040	MANUAL	1	Rp122.000	DT40W,MODEL:05
12-4	99011-944A1-040	MANUAL	1	Rp122.000	DT40W,MODEL:04
12-3	99011-944A0-040	MANUAL	1	Rp122.000	DT40W,MODEL:03
12-2	99011-94499-040	MANUAL	1	-	DT40W,MODEL:02
12-1	99011-94498-040	MANUAL	1	Rp122.000	DT40W,MODEL:01
