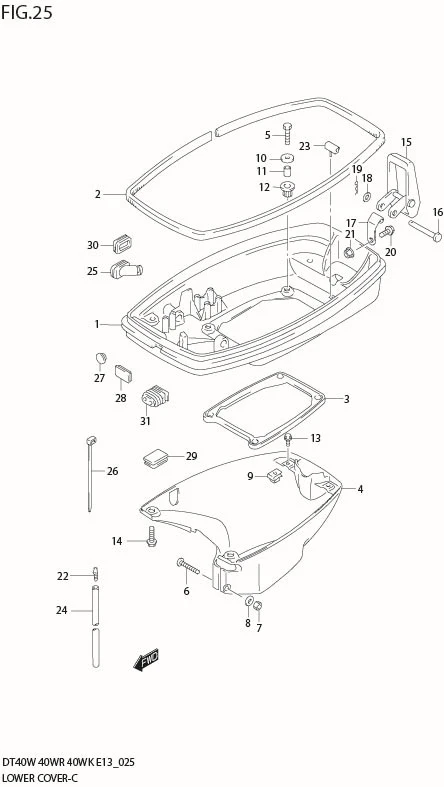

FIG 25 LOWER COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	61111-94452-0EP	COVER	1	Rp4.385.000	MODEL:02%
1-1	DISCONTINUE SUB: 61111-94451-0ED	COVER	1	-
2	61112-94412-000	RUBBER	1	Rp485.000
3	DISCONTINUE SUB: 61113-94400-000	SEAL	1	-
4-1	DISCONTINUE SUB: 61131-94402-0ED	COVER	1	-
4-2	61131-94403-0EP SUB: 61131-94402-0EP	COVER	1	Rp1.737.000	MODEL:02%
5	09116-06232-000 SUB: 09100-06121-000	BOLT (6X30)	4	Rp17.500
6	DISCONTINUE SUB: 09125-05129-000	SCREW (5X45)	1	-
7	DISCONTINUE SUB: 09159-05042-000	NUT	1	-
8	09160-05029-000	WASHER (5.5X12X0.8)	1	Rp14.000
9	09148-06017-000	NUT	2	Rp15.500
10	09160-06104-000	WASHER (6.5X24X2.0)	4	Rp18.000
11	09180-06295-000	SPACER	4	Rp21.000
12	09320-10035-000	CUSHION	4	Rp20.500
13	09136-06145-000	SCREW	2	Rp11.500
14	DISCONTINUE SUB: 29103-93J00-000	BOLT	2	-	?09103-06152
15	61610-90L00-000 SUB: 61610-93901-000	FASTENER	1	Rp198.000
16	61616-93EL0-000 SUB: 61616-93E00-000	PIN	1	Rp59.000
17	61642-90L00-000 SUB: 61642-93902-000	HOLDER	1	Rp69.500
18	09161-04012-000	WASHER	1	Rp15.500
19	09385-04003-000	PIN	1	Rp18.000
20	09103-06093-000 SUB: 29103-93J10-000	BOLT (6X20)	1	Rp13.000	?09103-06093
21	08310-00067-000	NUT	1	Rp13.000
22	61155-94400-000	TUBE	1	Rp26.500
23	DISCONTINUE SUB: 61138-94410-000	COVER	3	-
24	09352-50006-600 SUB: 09352-50903-600	HOSE	1	Rp46.000	L:600!50
25	33811-94400-000	GROMMET	1	Rp38.500
26	09407-19401-000 SUB: 09407-25402-000	CLAMP	1	Rp31.500
27	09250-12006-000	CAP	1	Rp9.500	OIL LAMP HOLE
28-1	39669-94400-000	PLUG	1	Rp37.500	ELECTRIC STARTER
28-2	39669-94400-000	PLUG	2	Rp37.500	MANUAL STARTER
29	09250-33001-000	CAP	1	Rp25.000	IGN SW HOLE
30	63625-94300-000	CAP	1	Rp21.000	DT40WR
31	63625-96301-000 SUB: 63625-96300-000	GROMMET	1	Rp25.500	DT40W
