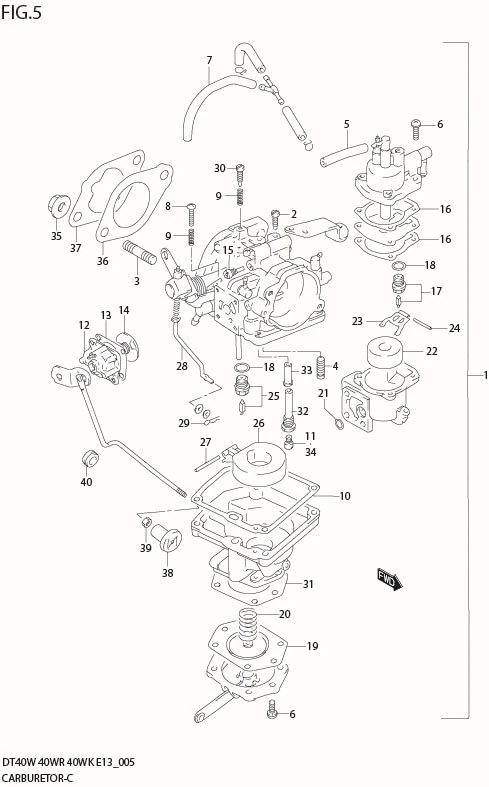

FIG 5 CARBURETOR (DT40WK)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 13200-944D0-000	CARBURETOR	1	-	?13200-94462
2	DISCONTINUE SUB: 09492-65002-000	?JET	1	-	FOR GASOLINE
3	01411-0820A-000 SUB: 01411-08207-000	?STUD BOLT	1	Rp11.500
4	DISCONTINUE SUB: 13443-94350-000	?VALVE	1	-
5	DISCONTINUE SUB: 13652-94350-000	?HOSE	2	-	!13651-95300
6	DISCONTINUE SUB: 13249-93900-000	?SCREW	10	-
7	DISCONTINUE SUB: 13651-95300-000	?HOSE	1	-
8	DISCONTINUE SUB: 13534-96300-000	?SCREW	1	-
9	DISCONTINUE SUB: 13268-96111-000	?SPRING	2	-
10	DISCONTINUE SUB: 13245-94350-000	?GASKET	1	-
11	DISCONTINUE SUB: 09491-38008-000	?JET	1	-
12	DISCONTINUE SUB: 13419-94400-000	?COVER	1	-
13	DISCONTINUE SUB: 13418-94360-000	?GASKET	1	-	?13418-67110
14	DISCONTINUE SUB: 13415-94350-000	?DISC	1	-
15	DISCONTINUE SUB: 09492-75001-000	?JET	1	-	FOR KEROSENE
16	DISCONTINUE SUB: 13265-94360-000	?GASKET	2	-	FOR GASOLINE
17	DISCONTINUE SUB: 13370-94350-000	?NEEDLE VALVE ASSY	1	-	FOR GASOLINE
18	13392-58600-000	?PACKING	2	Rp13.000
19	DISCONTINUE SUB: 13450-94350-000	?DIAPHRAGM ASSY	1	-
20	DISCONTINUE SUB: 13441-94350-000	?SPRING	1	-
21	DISCONTINUE SUB: 13521-78100-000	?O RING	1	-
22	DISCONTINUE SUB: 13270-94350-000	?FLOAT	1	-	FOR GASOLINE
23	DISCONTINUE SUB: 13282-94350-000	?ARM	1	-
24	DISCONTINUE SUB: 13254-98410-000	?PIN	1	-	FOR GASOLINE
25	DISCONTINUE SUB: 13370-27310-000	?NEEDLE VALVE ASSY	1	-	FOR KEROSENE
26	13250-93012-000	?FLOAT ASSY	1	Rp144.000
27	DISCONTINUE SUB: 13254-98300-000	?PIN	1	-	FOR KEROSENE
28	DISCONTINUE SUB: 13462-94351-000	?ROD	1	-
29	13464-96350-000	?SPRING PIN	1	Rp12.500
30	DISCONTINUE SUB: 13269-98100-000	?SCREW	1	-
31	DISCONTINUE SUB: 13446-94360-000	?GASKET	1	-
32	DISCONTINUE SUB: 13236-94460-000	?NOZZLE	1	-
33	DISCONTINUE SUB: 13237-94460-000	?NOZZLE	1	-
34-1	09491-38007-000	JET	1	Rp56.500	OPT
34-2	DISCONTINUE SUB: 09491-40007-000	JET	1	-	OPT
35	08316-10087-000	NUT	2	Rp17.000
36	13125-95210-000	GASKET	1	Rp37.000
37	DISCONTINUE SUB: 13126-94450-000	PLATE	1	-
38	13631-93501-000	KNOB	1	Rp40.500
39	09140-04007-000	NUT	1	Rp14.000
40	09320-04013-000 SUB: 09320-04009-000	BUSH	1	Rp17.500
