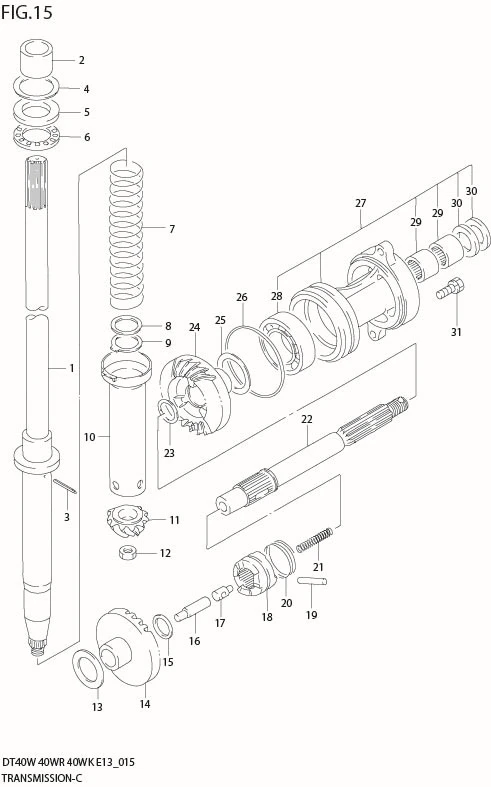

FIG 15 TRANSMISSION

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	57110-94441-000	SHAFT	1	Rp4.072.000	L:816.8
1-1	57110-92L10-000 SUB: 57110-94411-000	SHAFT	1	Rp1.788.000	L:736.8
1-5	57110-94431-000	SHAFT	1	Rp8.192.500	L:972.8
1-3	57110-92L00-000 SUB: 57110-94401-000	SHAFT	1	Rp3.128.000	L:863.8
1-4	DISCONTINUE SUB: 57110-94421-000	SHAFT	1	-	L:923.8
2	57130-94301-000	BUSH	1	Rp78.000
3	09205-03019-000	SPRING PIN (OD:3	1	Rp9.500
4-1	09181-30186-000	SHIM (30X42X0.5)	0	Rp21.500
4-2	09181-30187-000	SHIM (30X42X0.6)	0	Rp21.000
4-3	09181-30188-000	SHIM (30X42X0.7)	0	Rp24.500
4-4	DISCONTINUE SUB: 09181-30190-000	SHIM (30X42X0.8)	0	-
4-5	DISCONTINUE SUB: 09181-30192-000	SHIM (30X42X0.9)	0	-
5	09160-26015-000	WASHER (26.2X42X4.0)	1	Rp197.000
6	09263-25062-000	BEARING	1	Rp657.000
7	09440-30005-000	SPRING	1	Rp64.000
8	09160-24020-000	WASHER (24X33X2.5)	1	Rp44.500
9	09166-25006-000	WASHER	1	Rp45.500
10	57133-94400-000	HOUSING	1	Rp121.000
11	57311-94410-000 SUB: 57311-94402-000	PINION	1	Rp1.075.000
12	09140-12034-000	NUT	1	Rp21.000
13-1	09181-30186-000	SHIM (30X42X0.5)	0	Rp21.500
13-2	09181-30187-000	SHIM (30X42X0.6)	0	Rp21.000
13-3	09181-30188-000	SHIM (30X42X0.7)	0	Rp24.500
13-4	DISCONTINUE SUB: 09181-30190-000	SHIM (30X42X0.8)	0	-
13-5	DISCONTINUE SUB: 09181-30192-000	SHIM (30X42X0.9)	0	-
14	57510-94410-000 SUB: 57510-94402-000	GEAR	1	Rp1.099.500
15	08211-20263-000	THRUST WASHER (20X62X2)	0	Rp18.000
16	57631-95303-000 SUB: 57631-95302-000	ROD	1	Rp113.500
17	57634-88L00-000	PIN	1	Rp86.000
18	57621-87J03-000 SUB: 57621-87J02-000	SHIFTER	1	Rp969.000
19	09202-05022-000	PIN	1	Rp33.000
20	09440-40002-000	SPRING	1	Rp21.000
21-1	DISCONTINUE SUB: 09440-08034-000	SPRING	1	-
21-2	09440-08043-000	SPRING	1	Rp19.500	DT40W(WR):781230%
22	57610-94403-000 SUB: 57610-94402-000	SHAFT	1	Rp1.982.000
23-1	09160-22018-000	WASHER (22.5X28X1.8)	0	Rp24.000
23-2	DISCONTINUE SUB: 09160-22019-000	WASHER (22.5X28X1.9)	0	-
23-3	DISCONTINUE SUB: 09160-22020-000	WASHER (22.5X28X2)	0	-
23-4	DISCONTINUE SUB: 09160-22021-000	WASHER (22.5X28X2.1)	0	-
23-5	DISCONTINUE SUB: 09160-22022-000	WASHER (22.5X28X2.2)	0	-
23-6	DISCONTINUE SUB: 09160-22023-000	WASHER (22.5X28X2.3)	0	-
24	57521-94401-000	GEAR	1	Rp1.060.500
25-1	08221-35455-000	SHIM (35X45X0.5)	0	Rp19.000
25-6	DISCONTINUE SUB: 08211-35451-000	THRUST WASHER (35X45X1.0)	0	-
25-5	DISCONTINUE SUB: 09181-35136-000	SHIM (35X45X0.9)	0	-
25-4	DISCONTINUE SUB: 08221-35456-000	SHIM (35X45X0.8)	0	-
25-3	DISCONTINUE SUB: 09181-35132-000	SHIM (35X45X0.7)	0	-
25-2	09181-35131-000	SHIM (35X45X0.6)	0	Rp19.500
26	09280-75001-000	O RING (D:3.3	1	Rp32.000
27-1	DISCONTINUE SUB: 56120-94321-0ED	HOUSING	1	-	?56120-94320-0ED
27-2	56120-94321-0EP	HOUSING	1	Rp1.820.000	MODEL:02%
28	09262-35070-000	?BEARING	1	Rp319.500	?08113-60070
29	09263-22020-000	?BEARING (22.2X28.5X19)	2	Rp146.500
30	09289-22007-000	?OIL SEAL	2	Rp43.500
31-1	09117-08047-000	BOLT (8X30)	2	Rp44.500
31-2	09116-08122-000	BOLT (8X30)	2	Rp29.000	MODEL:10%
