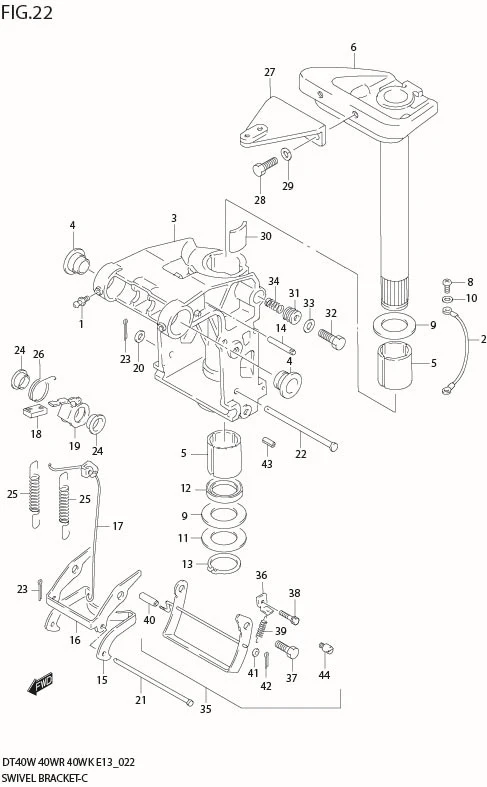

FIG 22 SWIVEL BRACKET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	22511-99011-000	NIPPLE	3	Rp39.500
2	DISCONTINUE SUB: 36894-94401-000	LEAD (SWIVEL TO MOUNT)	1	-
3-2	43111-97E01-0EP	BRACKET	1	Rp2.852.000	MODEL:02%
3-1	43111-97E00-0ED	BRACKET	1	-
4	43211-87JL0-000 SUB: 43211-94401-000	BUSH	2	Rp213.000
5	43711-97E11-000 SUB: 43711-97E00-000	BUSH	2	Rp106.500
6-1	DISCONTINUE SUB: 43750-97E04-0ED	BRACKET	1	-
6-2	43750-97E10-0EP SUB: 43750-97E04-0EP	BRACKET	1	Rp5.167.000	MODEL:02%
8	09125-05050-000 SUB: 29125-93J10-000	SCREW	2	Rp14.000	?09125-05050
9	09160-39001-000	WASHER (39.5X64X1.0)	3	Rp23.000
10	DISCONTINUE SUB: 09161-05114-000	WASHER	2	-	%MODEL:00
11	09181-39001-000	SHIM (39.5X64X0.3)	0	Rp31.500
12	09282-39001-000	SEAL	1	Rp53.000
13	09380-38003-000	CIRCLIP	1	Rp50.500
14	41225-94502-000	PIN	1	Rp44.000
15	DISCONTINUE SUB: 45231-94401-000	ARM	1	-
16	DISCONTINUE SUB: 45241-94400-000	LINK	1	-
17	45250-92L00-000 SUB: 45250-94400-000	LINK	1	Rp67.500
18	DISCONTINUE SUB: 45255-93001-000	RUBBER	1	-
19	DISCONTINUE SUB: 45261-94400-000	LEVER	1	-
20	09160-08091-000	WASHER (8.5X14X1.0)	1	Rp11.000
21	DISCONTINUE SUB: 09200-05015-000	PIN	1	-
22	DISCONTINUE SUB: 09200-08043-000	PIN	1	-
23	09204-01002-000	PIN	2	Rp13.000
24	59315-94J00-000 SUB: 09306-22006-000	BUSH	2	Rp21.500
25	09443-15031-000	SPRING	2	Rp97.500
26	DISCONTINUE SUB: 09448-29018-000	SPRING	1	-
27	43755-97E01-000	ATTACHMENT	1	Rp484.000	DT40WR
28	09100-10316-000 SUB: 09100-10311-000	BOLT (10X25)	2	Rp86.000	?09100-10270
29	09162-10005-000	LOCK WASHER	2	Rp13.000
30	43411-97E00-000	ADJUSTER	1	Rp65.000
31	43412-93901-000 SUB: 43412-93900-000	COVER	1	Rp30.000
32	29101-93J00-000	BOLT	1	Rp21.000	?09100-08224
33	09160-08091-000	WASHER (8.5X16X1.2)	1	Rp11.000
34	29440-93J00-000	SPRING	1	Rp22.500	?09440-11022
35	45700-92L00-000 SUB: 45700-94412-000	SHALLOW WATER DRIVE ASSY	1	Rp1.172.000	OPT
36	45713-94420-000	?STOPPER	1	Rp63.500	OPT
37	09111-10045-000	?BOLT (10X20.8)	2	Rp52.500	OPT
38	09117-06030-000 SUB: 09117-06038-000	?BOLT (6X16)	1	Rp18.000	OPT
39	09443-12039-000	?SPRING	1	Rp34.000	OPT
40	DISCONTINUE SUB: 45255-95500-000	?KNOB	1	-	OPT
41	09160-05029-000	?WASHER (5.5X12X0.8)	1	Rp14.000	OPT
42	09204-01002-000	?PIN	1	Rp13.000	OPT
43	09205-08002-000	?PIN	1	Rp30.500	OPT
44	45331-94610-000	?PIN	1	Rp97.500	OPT
