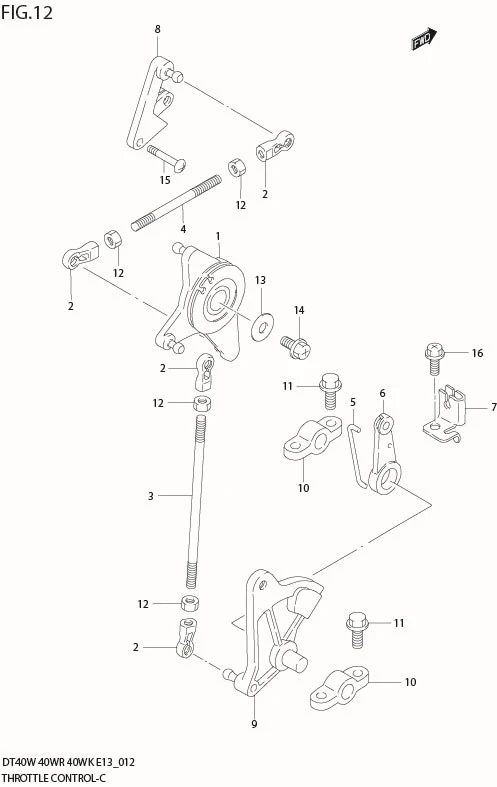

FIG 12 THROTTLE CONTROL (DT40W,40WR)

FIG 12 THROTTLE CONTROL (DT40W,40WR)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 19121-94400-000	LEVER	1	-
2	19131-95502-000	CONNECTOR	4	Rp39.000
3	19135-94400-000	ROD (LEVER TO LIMITER)	1	Rp40.000
4	DISCONTINUE SUB: 19136-95510-000	ROD	1	-
5	DISCONTINUE SUB: 19654-94421-000	ROD (CLUTCH TO NSI LEVER)	1	-
6	DISCONTINUE SUB: 19851-94401-000	LEVER	1	-
7	DISCONTINUE SUB: 19861-96301-000	STAY	1	-
8	19522-94400-000	LEVER	1	Rp48.000
9	DISCONTINUE SUB: 19811-94400-000	LIMITER	1	-
10	DISCONTINUE SUB: 19815-94400-000	HOLDER	2	-
11	09103-06048-000	BOLT (6X20)	4	Rp14.500
12	09140-05005-000	NUT	4	Rp20.000
13	09160-06006-000 SUB: 09160-06084-000	WASHER (6.5X18X1.6)	1	Rp11.000
14	02162-06127-000	BOLT	1	Rp12.500
15	02142-05307-000	SCREW	1	Rp14.000
16	02162-06127-000	BOLT	1	Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
