DT40W 40WR 40WK E13

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDERFIG 2 CRANKSHAFTFIG 3 INLET CASEFIG 4 CARBURETOR (DT40W,40WR)FIG 5 CARBURETOR (DT40WK)FIG 6 OIL SEAL HOUSINGFIG 7 EXHAUST TUBEFIG 8 FUEL PUMP (DT40W,40WR)FIG 9 FUEL PUMP (DT40WK)FIG 10 WATER PUMPFIG 11 RECOIL STARTERFIG 12 THROTTLE CONTROL (DT40W,40WR)FIG 13 THROTTLE CONTROL (DT40WK)FIG 14 CLUTCHFIG 15 TRANSMISSIONFIG 16 STARTING MOTORFIG 17 MAGNETOFIG 18 IGNITIONFIG 19 ELECTRICALFIG 20 IGNITION SWITCHFIG 21 CLAMP BRACKETFIG 22 SWIVEL BRACKETFIG 23 DRIVE SHAFT HOUSINGFIG 24 GEAR CASEFIG 25 LOWER COVERFIG 26 ENGINE COVERFIG 27 ENGINE COVER (MODEL:02%10)FIG 27A ENGINE COVER (*)FIG 28 TILLER HANDLEFIG 29 FUEL TANK (DT40WK/PLASTIC/12L)FIG 30 FUEL TANK (PLASTIC/25L)FIG 31 REMOCON CABLE HOLDER (DT40WR)FIG 32 REMOTE CONTROL (DT40WR,MODEL:01%03)FIG 33 REMOTE CONTROL (DT40WR,MODEL:04%)FIG 34 OPT : STARTING MOTORFIG 35 OPT : METERFIG 36 OPT : ELECTRICAL (MANUAL STARTER)FIG 37 OPT : ELECTRICAL (ELECTRIC STARTER)FIG 38 OPT : REMOTE CONTROLFIG 39 OPT : TILLER HANDLEFIG 40 OPT : REMOCON PARTSFIG 41 OPT : GASKET SET

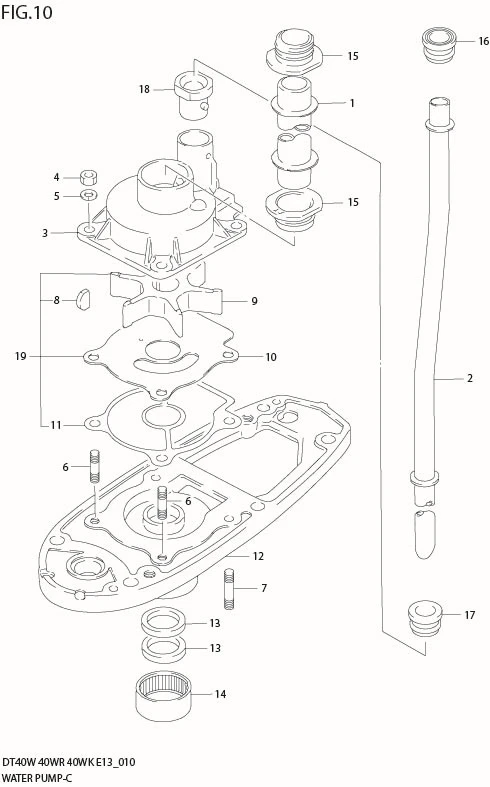

FIG 10 WATER PUMP

FIG 10 WATER PUMP
No No. Part Description Qty Price Per Pcs Remarks
1-2 17431-92L20-000
SUB: 17431-94441-000		 TUBE 1 Rp147.000 L:126
1-3 17431-92L00-000
SUB: 17431-94401-000		 TUBE 1 Rp109.000 L:173
1-4 DISCONTINUE
SUB: 17431-94421-000		 TUBE 1 - L:233
1-5 DISCONTINUE
SUB: 17431-94431-000		 TUBE 1 - L:282
1-1 DISCONTINUE
SUB: 17431-94411-000		 TUBE 1 - L:21
2-1 DISCONTINUE
SUB: 17561-94414-000		 TUBE 1 - L:366
2-2 17561-92L60-000
SUB: 17561-94444-000		 TUBE 1 Rp200.500 L:446
2-3 17561-92L70-000
SUB: 17561-94404-000		 TUBE 1 Rp200.500 L:493
2-4 DISCONTINUE
SUB: 17561-94424-000		 TUBE 1 - L:553
2-5 17561-94434-000 TUBE 1 Rp335.000 L:602
3-1 17410-92L00-000
SUB: 17411-94421-000		 CASE 1 Rp1.101.000
3-2 DISCONTINUE
SUB: 17410-94431-000		 CASE 1 - E40
4 29141-93J00-000 NUT 4 Rp18.500 ?09140-06020
5 29162-93J00-000 LOCK WASHER 4 Rp11.500 ?09162-06006
6 09108-06060-000 STUD BOLT (6X18) 2 Rp17.500
7 09108-06061-000 STUD BOLT (6X35) 2 Rp42.000
8 09420-04006-000 KEY 1 Rp42.000
9 17461-96312-000 IMPELLER 1 Rp253.000
10-1 17471-94401-000 PANEL 1 Rp84.000
10-2 17471-92L00-000
SUB: 17471-94411-000		 PANEL 1 Rp514.000 E40
11 17472-96304-000
SUB: 17472-96303-000		 GASKET 1 Rp24.000
12-1 DISCONTINUE
SUB: 56130-94413-0ED		 HOUSING 1 - ?56130-94411-0ED
12-2 56130-94431-0EP
SUB: 56130-94430-0EP		 HOUSING 1 Rp1.798.000 MODEL:02%
13 09282-17005-000 ?OIL SEAL 2 Rp54.500
14 09263-25025-000 ?BEARING (25X33X15) 1 Rp242.500
15 17432-96301-000
SUB: 17432-96300-000		 GROMMET 2 Rp27.000
16 17563-94400-000 GROMMET 1 Rp37.000
17 17565-94400-000 GROMMET 1 Rp40.500
18 17566-94401-000
SUB: 17566-94400-000		 GROMMET 1 Rp30.500
19 17400-94413-000
SUB: 17400-94412-000		 WATER PUMP KIT 1 Rp1.584.000 OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
