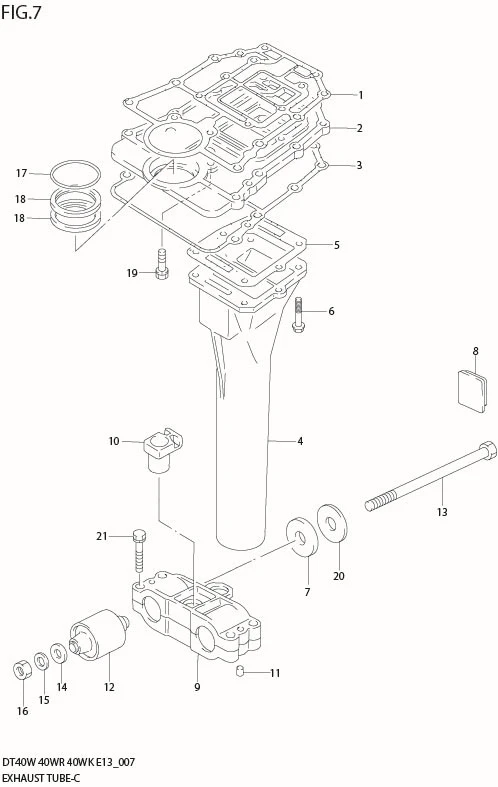

FIG 7 EXHAUST TUBE

FIG 7 EXHAUST TUBE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11433-94412-000	GASKET	1	Rp361.000
2	11431-94406-000	HOUSING	1	Rp1.208.500
3	11434-94411-000	GASKET	1	Rp442.000
4-1	DISCONTINUE SUB: 14211-94451-000	TUBE	1	-	L:300
4-2	DISCONTINUE SUB: 14211-94461-000	TUBE	1	-	L:330
5	14212-94413-000	GASKET	1	Rp45.000
6	29103-94400-000	BOLT (6X35)	6	Rp28.500	?09103-06095
7	54121-94401-000	STOPPER	2	Rp46.000
8	DISCONTINUE SUB: 54125-94400-000	MOUNT	1	-
9	54137-92L00-000 SUB: 54137-94402-000	CASE	2	Rp168.000
10	DISCONTINUE SUB: 54146-94400-000	GUIDE	1	-
11	09202-07001-000	PIN	2	Rp8.000
12	DISCONTINUE SUB: 54130-94411-000	MOUNT	2	-
13	DISCONTINUE SUB: 09100-10217-000	BOLT (10X150)	2	-
14	09160-10148-000	WASHER (10X20X3)	2	Rp19.000	?09160-10081
15	09160-10082-000 SUB: 29160-93J00-000	WASHER (10.5X19X2)	2	Rp12.000
16	09159-10050-000	NUT	2	Rp23.500
17	09280-50008-000	O RING (D:3.1	1	Rp18.500
18	09282-17009-000	OIL SEAL (28X25X6)	2	Rp69.000
19	29116-94400-000	BOLT (6X20)	2	Rp16.000	?09116-06106
20	09160-10080-000	WASHER (10X44X3.0)	2	Rp36.000
21	29117-93J10-000	BOLT (8X45)	4	Rp36.000	?09117-08038

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
