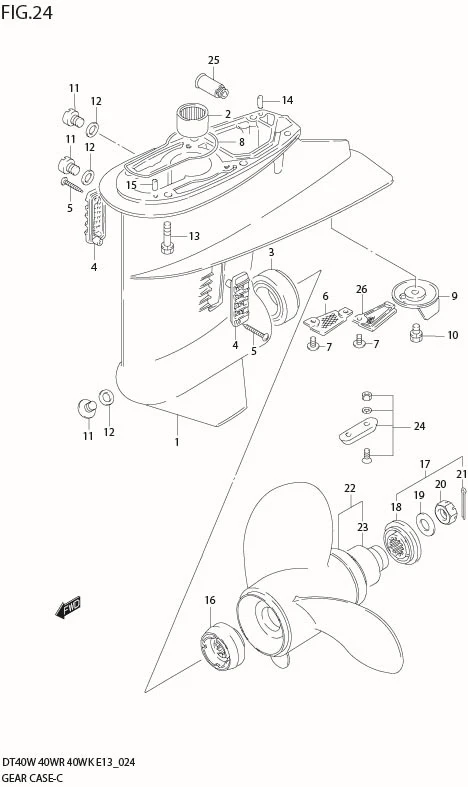

FIG 24 GEAR CASE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	55100-92L20-0EP SUB: 55100-94470-0EP	CASE ASSY	1	Rp14.535.000	MODEL:02%
1-1	55100-92L00-0ED SUB: 55100-94453-0ED	CASE ASSY	1	Rp5.418.500
2	09263-22039-000	?BEARING	1	Rp578.000
3	09265-30004-000	?BEARING	1	Rp458.000
4	17631-96320-000	FILTER	2	Rp64.500
5	03142-04309-000	SCREW	2	Rp17.500
6	17635-87E00-000	FILTER	1	Rp39.000
7	09125-05046-000	SCREW (5X12)	2	Rp14.000
8	55122-88L00-000	RING	1	Rp81.000
9	55125-95500-000	TAB	1	Rp203.000
10	09117-08109-000 SUB: 09117-08037-000	BOLT (8X16)	1	Rp24.500
11	09248-10008-000	PLUG	3	Rp42.500
12	09168-10022-000	GASKET (10X17X1.5)	3	Rp10.500
13-1	09116-08131-000 SUB: 09117-08086-000	BOLT (8X45)	6	Rp40.500	TYPE:S/L/L2
13-2	09116-08131-000	BOLT (8X45)	6	Rp40.500	TYPE:S/L/L2 MODEL:06%
14	09202-06027-000	PIN	1	Rp13.000
15	09202-06025-000	PIN	1	Rp13.000
16	57632-95320-000	STOPPER	1	Rp428.500
17	57630-94301-000 SUB: 57630-94300-000	PROPELLER NUT KIT	1	Rp288.000	OPT
18	57633-94301-000 SUB: 57633-94300-000	?SPACER	1	Rp225.000
19	09160-18028-000	?WASHER (18.5X31X1.0)	1	Rp25.500
20	09141-18005-000	?NUT	1	Rp71.000
21	09204-03003-000	?PIN	1	Rp17.500
22-5	58100-88LB0-019 SUB: 58100-88L40-019	PROPELLER (3X11-1/2X13)	1	Rp2.492.000	S1301
22-8	58100-88L72-019 SUB: 58100-88L70-019	PROPELLER (3X11-1/8X16)	1	Rp1.438.000	S1600
22-7	58100-88LR0-019 SUB: 58100-88L60-019	PROPELLER (3X11-1/4X15)	1	Rp2.587.500	S1500
22-6	58100-88L52-019 SUB: 58100-88L50-019	PROPELLER (3X11-3/8X14)	1	Rp1.438.000	S1400
22-4	58100-88LA0-019 SUB: 58100-88L30-019	PROPELLER (3X11-5/8X12)	1	Rp2.492.000	S1200
22-3	58100-88LE0-019 SUB: 58100-88L20-019	PROPELLER (3X11-1/2X11)	1	Rp2.587.500	S1100
22-2	58100-88L13-019 SUB: 58100-88L10-019	PROPELLER (3X11-1/2X10)	1	Rp1.438.000	S1000
22-1	58100-88L03-019 SUB: 58100-88L00-019	PROPELLER (3X11-1/2X9)	1	Rp1.438.000	S900
23	58120-88L01-000 SUB: 58120-88L00-000	?BUSH	1	Rp396.000
24	55300-95500-000	ZINC	1	Rp187.000	OPT
25	55181-95200-000	ATTACHMENT	1	Rp62.500	OPT
26	17635-87E10-000	PLATE	1	Rp784.500	OPT
27	25700-88L01-000 SUB: 25700-88L00-000	KIT	1	Rp233.500	OPT,NOT SHOWN
