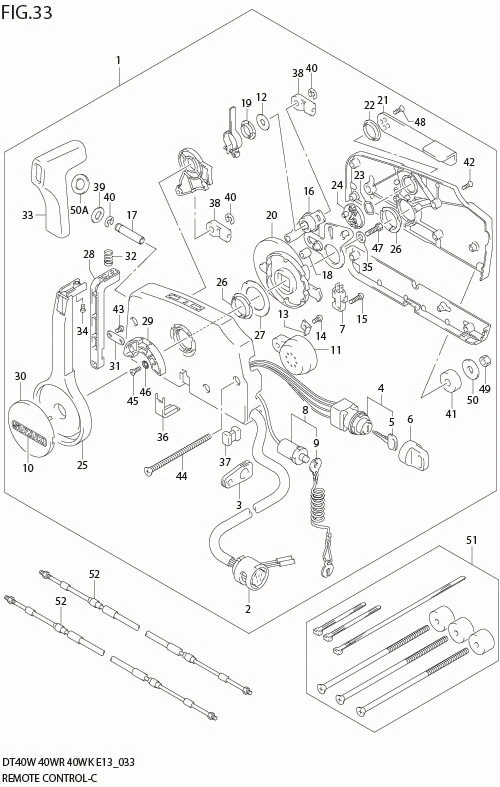

FIG 33 REMOTE CONTROL (DT40WR,MODEL:04%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	67200-97E32-000	REMOTE CONTROL BOX	1	-	!67200-97E42
2	36620-92E20-000	?WIRE ASSY	1	Rp1.804.500
3	36628-92E00-000	?GROMMET	1	Rp42.000
4	DISCONTINUE SUB: 37110-99E00-000	?SWITCH ASSY	1	-
5-1	DISCONTINUE SUB: 37141-99E00-000	??KEY (931)	1	-
5-2	DISCONTINUE SUB: 37141-99E10-000	??KEY (932)	1	-
5-3	DISCONTINUE SUB: 37141-99E20-000	??KEY (933)	1	-
5-4	DISCONTINUE SUB: 37141-99E30-000	??KEY (934)	1	-
5-5	DISCONTINUE SUB: 37141-99E40-000	??KEY (935)	1	-
5-6	DISCONTINUE SUB: 37141-99E50-000	??KEY (936)	1	-
5-7	DISCONTINUE SUB: 37141-99E60-000	??KEY (937)	1	-
5-8	DISCONTINUE SUB: 37141-99E70-000	??KEY (938)	1	-
5-9	DISCONTINUE SUB: 37141-99E80-000	??KEY (939)	1	-
5-10	DISCONTINUE SUB: 37141-99E90-000	??KEY (940)	1	-
5-11	DISCONTINUE SUB: 37141-99EA0-000	??KEY (941)	1	-
5-12	DISCONTINUE SUB: 37141-99EB0-000	??KEY (942)	1	-
6	37143-99E00-000	??CAP	1	Rp26.000
7	DISCONTINUE SUB: 37721-94600-000	?SWITCH	1	-
8	37820-92E05-000 SUB: 37820-92E03-000	?SWITCH ASSY	1	Rp369.500
9	37823-92E02-000 SUB: 37823-92E01-000	??PLATE	1	Rp221.500
10	68165-16B01-13L SUB: 68165-16B00-13L	?EMBLEM	1	Rp47.500
11	DISCONTINUE SUB: 38500-92X50-000	?BUZZER	1	-
12	67212-95600-000	?WASHER	1	Rp25.500
13	67213-92E00-000	?BRACKET	1	Rp35.000
14	DISCONTINUE SUB: 09125-05042-000	?SCREW	1	-	?67214-92E10
15	67296-92E10-000	?SCREW	2	Rp17.000	?67216-94600
16	DISCONTINUE SUB: 67220-95620-000	?PLATE ASSY	1	-
17	67223-99E10-000	?KNOB	1	Rp59.000
18	67229-95600-000	?ROLLER	1	Rp54.500
19	67232-95600-000	?BUSH	1	Rp44.000
20	DISCONTINUE SUB: 67238-87D00-000	?GEAR	1	-
21	67241-99E10-000	?LEVER	1	Rp177.000
22	67243-95600-000	?BUSH	1	Rp30.500
23	67244-95600-000	?WAVE WASHER	1	Rp27.500
24	67245-95600-000	?DRUM	1	Rp194.000
25	67251-99E10-000	?LEVER	1	Rp617.000
26	67252-95600-000	?BUSH	1	Rp37.500
27	67253-95600-000	?WASHER	1	Rp37.500
28	67255-99E00-000	?ARM	1	Rp143.000
29	67256-95600-000	?HOLDER	1	Rp80.500
30	67257-99E00-000	?CAP	1	Rp77.000
31	67258-99E00-000	?BRACKET	1	Rp31.000
32	67259-87D00-000	?SPRING	1	Rp45.500
33	67261-99E00-000	?GRIP	1	Rp354.000
34	67296-94310-000	?SCREW	1	Rp14.500	?67262-95600
35	67264-95600-000	?WASHER	1	Rp22.000
36	67267-95610-000	?COVER	1	Rp44.500
37	67273-95601-000 SUB: 67273-95600-000	?SPACER	1	Rp35.000
38	67275-95600-000	?END	2	Rp70.500
39	67288-92E00-000	?WASHER	1	Rp24.500	?67288-99E00
40	67292-94300-000	?E RING	1	Rp11.000
41	67294-95600-000	?SPACER	3	Rp35.000
42	67296-90J00-000	?SCREW	5	Rp17.000
43	67296-94300-000	?SCREW	2	Rp10.500
44	67296-95600-000	?SCREW	3	Rp47.000
45	67296-95610-000	?SCREW	2	Rp23.500
46	67297-95600-000	?WASHER	2	Rp23.500
47	09100-08232-000	?BOLT	1	Rp29.000
48	DISCONTINUE SUB: 09126-05003-000	?SCREW	2	-
49	09140-06020-000	?NUT	3	Rp13.500
50	09160-06104-000	?WASHER	3	Rp18.000
50A	37859-90J00-000	?SPACER	1	Rp26.500
51	67140-95601-000 SUB: 67140-95600-000	ATTACHMENT	1	Rp351.000	OPT
52-9	67320-93J80-000	CABLE	2	Rp922.000	OPT
52-8	DISCONTINUE SUB: 67320-93J70-000	CABLE	2	-	OPT
52-7	67320-93J60-000	CABLE	2	Rp820.000	OPT
52-6	67320-93J50-000	CABLE	2	Rp767.500	OPT
52-5	67320-93J40-000	CABLE	2	Rp715.000	OPT
52-4	67320-93J30-000	CABLE	2	Rp662.500	OPT
52-3	67320-93J20-000	CABLE	2	Rp613.500	OPT
52-2	67320-93J10-000	CABLE	2	Rp564.500	OPT
52-1	DISCONTINUE SUB: 67320-93J00-000	CABLE	2	-	OPT
