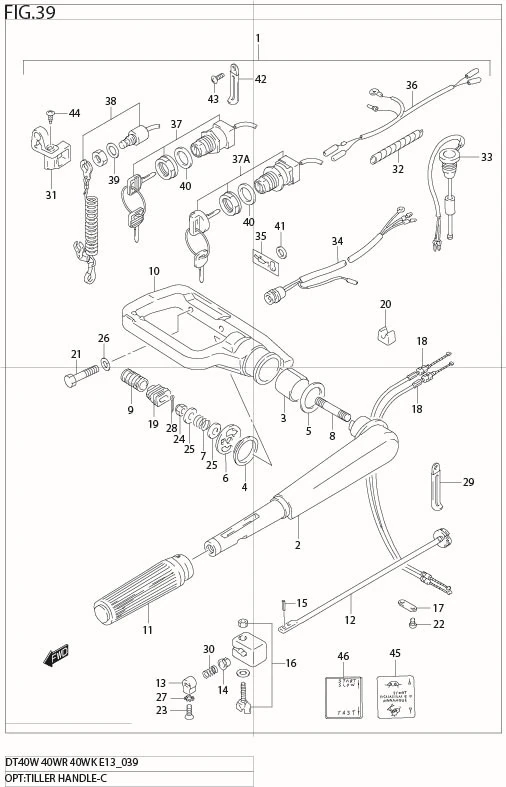

FIG 39 OPT : TILLER HANDLE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	63001-97E30-0EP SUB: 63001-97E02-0EP	HANDLE ASSY	1	Rp4.785.000
1-1	DISCONTINUE SUB: 63001-97E02-0ED	HANDLE ASSY	1	-
1-5	63001-97E30-0EP SUB: 63001-97E07-0EP	HANDLE ASSY	1	Rp4.785.000	MODEL:08%
1-3	63001-97E30-0EP SUB: 63001-97E03-0EP	HANDLE ASSY	1	Rp4.785.000	MODEL:04,05
1-4	63001-97E30-0EP SUB: 63001-97E04-0EP	HANDLE ASSY	1	Rp4.785.000	DT40W(WR):511655%
2-1	DISCONTINUE SUB: 63111-97E04-0ED	?HANDLE	1	-
2-2	63111-97E05-0EP	?HANDLE	1	Rp886.500
3	63115-97E00-000	?BUSH	1	Rp46.000
4	63116-97E00-000	?WASHER	1	Rp89.500
5	63117-97E01-000	?WASHER	1	Rp98.000
6	63125-97E01-000	?PLATE	1	Rp121.000
7	63126-97E01-000	?SPRING	1	Rp86.500
8	09108-10137-000	?BOLT	1	Rp225.000
9	63128-97E00-000	?COVER	1	Rp36.000
10-2	63131-97E03-0EP	?BRACKET	1	Rp2.868.500
10-1	DISCONTINUE SUB: 63131-97E02-0ED	?BRACKET	1	-
11	63210-93E30-000	?GRIP	1	Rp293.000
12	63220-96302-000	?ROD	1	Rp254.500
13	63223-92D00-000	?STOPPER	1	Rp37.500
14	63225-93200-000	?BUSH	1	Rp37.000
15	63227-93200-000	?PIN	1	Rp21.000
16-1	63240-97E20-000 SUB: 63240-97E00-000	?ADJUSTER SET	1	Rp202.000
16-2	63240-97E20-000	?ADJUSTER SET	1	Rp202.000	MODEL:06%
17	63241-92D00-000	?SUPPORT	1	Rp33.000
18	63610-92L00-000 SUB: 63610-94402-000	?CABLE ASSY	2	Rp150.500
19	63625-96301-000 SUB: 63625-96300-000	?GROMMET	1	Rp25.500
20	DISCONTINUE SUB: 63627-94400-000	?GUIDE	1	-
21	DISCONTINUE SUB: 09100-10155-000	?BOLT	2	-
22	09125-05046-000	?SCREW	2	Rp14.000
23	09126-06015-000	?SCREW	1	Rp19.000
24	09159-10050-000	?NUT	1	Rp23.500
25	09160-10082-000 SUB: 29160-93J00-000	?WASHER	2	Rp12.000
26	09162-10005-000	?WASHER	2	Rp13.000
27	09163-06001-000	?WASHER	1	Rp11.000
28	09204-01002-000	?PIN	1	Rp13.000
29	29404-93J21-000 SUB: 29404-93J20-000	?CLAMP	1	Rp18.000	?09404-06433
30	09440-12027-000	?SPRING	1	Rp13.000
31	33816-96300-000	?CLAMP	1	Rp40.500
32	33833-91J00-000	?TUBE	1	Rp47.500	L:250!100
33	DISCONTINUE SUB: 34860-94402-000	?SENSOR ASSY	1	-
34	36360-94400-000	?LAMP ASSY	1	Rp311.500
35	36367-95D10-064	?LABEL	1	Rp24.000
36	36893-94410-000	?WIRE ASSY	1	Rp400.500
37	37110-94462-000	?SWITCH ASSY	1	Rp629.500	!37110-94470
37A	DISCONTINUE SUB: 37110-94470-000	?SWITCH ASSY	1	-	MODEL:04%
38	37820-92E05-000 SUB: 37820-92E03-000	?SWITCH ASSY	1	Rp369.500
39	09160-12067-000	?WASHER	1	Rp19.000
40	09160-25069-000	?WASHER	1	Rp30.500
41	09320-11004-000	?GASKET	1	Rp13.500
42	DISCONTINUE SUB: 29404-93J10-000	?CLAMP	1	-	?09404-06432
43	02142-06127-000	?SCREW	1	Rp10.500
44	DISCONTINUE SUB: 03241-0625A-000	?SCREW	1	-
45	63215-93401-000	MARK	1	Rp22.500	DT40W
46	DISCONTINUE SUB: 63215-93450-000	MARK	1	-	DT40WK
