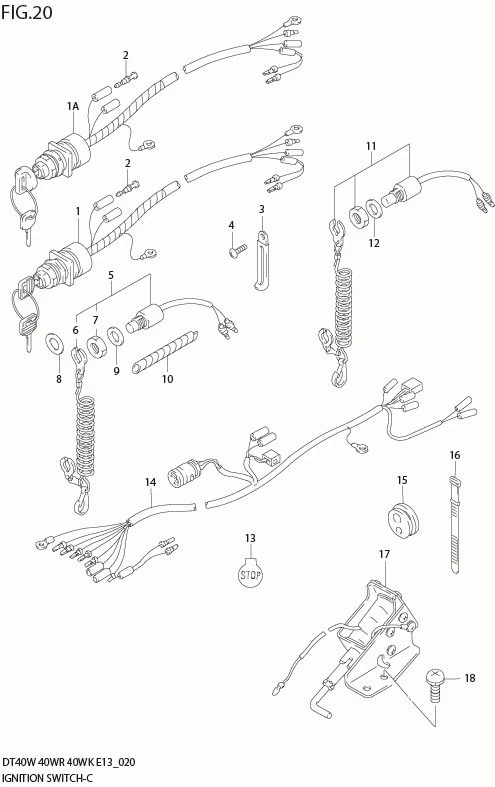

FIG 20 IGNITION SWITCH

FIG 20 IGNITION SWITCH

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1A	DISCONTINUE SUB: 37110-94470-000	SWITCH ASSY	1	-	MODEL:04%
1	37110-94462-000	SWITCH ASSY	1	Rp629.500	ELECTRIC STARTER
2	36615-96300-000	?TERMINAL	2	Rp11.000
3	DISCONTINUE SUB: 29404-93J10-000	CLAMP	1	-	?09404-06432
4	02142-06127-000	SCREW	1	Rp10.500
5	37820-92E05-000 SUB: 37820-92E03-000	SWITCH ASSY	1	Rp369.500	ELECTRIC STARTER
6	37823-92E02-000 SUB: 37823-92E01-000	?PLATE	1	Rp221.500
7	37826-92E00-000	?NUT	1	Rp65.500
8	09160-25069-000	WASHER (25X40X1.1)	1	Rp30.500
9	09160-12067-000	WASHER (12.5X23X1.0)	1	Rp19.000
10	33833-91J00-000	TUBE (L:250)	1	Rp47.500	L:250!100
11	37830-95D04-000 SUB: 37830-95D02-000	SWITCH ASSY	1	Rp491.500	MANUAL STARTER
12	09160-12067-000	WASHER	1	Rp19.000	MANUAL STARTER
13	37835-95D00-000	LABEL	1	Rp13.000
14	36610-94411-000	HARNESS ASSY	1	Rp649.500	DT40WR
15	36612-94421-000	GROMMET	1	Rp74.500	DT40WR
16	09407-12402-000	CLAMP	1	Rp20.500	DT40WR
17	38600-94400-000	SOLENOID ASSY	1	Rp726.500	DT40WR
18	02112-35127-000	SCREW	2	Rp9.500	DT40WR

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
