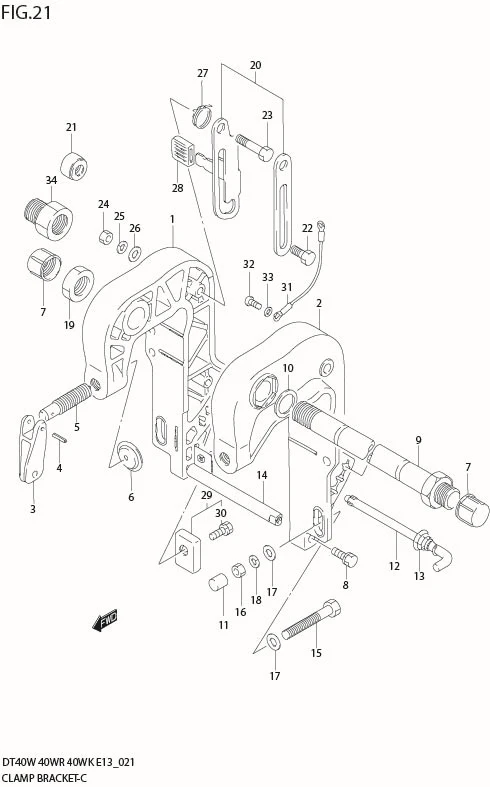

FIG 21 CLAMP BRACKET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	41111-94491-0EP SUB: 41111-94490-0EP	BRACKET	1	Rp1.651.000	MODEL:02%
1-1	DISCONTINUE SUB: 41110-94421-0ED	BRACKET	1	-
2-2	41121-94491-0EP SUB: 41120-94442-0EP	BRACKET	1	Rp2.717.500	MODEL:02%05
2-3	41121-94491-0EP SUB: 41121-94490-0EP	BRACKET	1	Rp2.717.500	DT40W(WR):511655%
2-1	41121-94490-0ED SUB: 41120-94441-0ED	BRACKET	1	Rp1.424.500
3-1	DISCONTINUE SUB: 41212-93001-0ED	HANDLE	2	-
3-2	41212-93001-0EP	HANDLE	2	Rp1.068.000	MODEL:02%
4	09205M06016-000 SUB: 09205-06007-000	SPRING PIN	2	Rp4.500
5	41211-94302-000 SUB: 41211-95250-000	SCREW	2	Rp167.500
6	41213-94J01-000 SUB: 41213-98100-000	PLATE	2	Rp38.000
7	41151-94500-000	CAP	2	Rp23.000
8	09117-08071-000	BOLT (8X35)	2	Rp52.000
9	DISCONTINUE SUB: 41130-94341-000	SHAFT	1	-
10	DISCONTINUE SUB: 09160-22033-000	WASHER (22.5X38X1.0)	1	-
11	41153-96300-000	CAP	2	Rp17.500
12	45420-92L00-000 SUB: 45420-94311-000	PIN	1	Rp275.500
13	09441-17002-000	?SPRING	1	Rp18.000
14	41310-94400-000	ROD	1	Rp209.500
15	DISCONTINUE SUB: 09100-08239-000	BOLT (8X90)	2	-
16	09140-08023-XC0	NUT	2	Rp22.500	?09140-08016
17	09160-08081-000	WASHER (8.5X23X1.5)	4	Rp17.500
18	29162-93J10-000	LOCK WASHER	2	Rp16.000	?09162-08007
19	09159-22006-000	NUT	1	Rp186.500	?09159-22003
20	DISCONTINUE SUB: 41200-94400-000	ARM ASSY	1	-
21	DISCONTINUE SUB: 41161-94400-000	SEAL	1	-	DT40WR
22	09111-10067-000 SUB: 09111-10032-000	BOLT (10X20.4)	2	Rp52.500
23	09111-10069-000 SUB: 09111-10033-000	BOLT (10X54.5)	2	Rp147.000
24	09140-10031-000 SUB: 29141-93J20-000	NUT	2	Rp14.500	?09140-10031
25	09162-10005-000	LOCK WASHER	2	Rp13.000
26	09160-10082-000 SUB: 29160-93J00-000	WASHER (10.5X19X2.0)	2	Rp12.000
27	DISCONTINUE SUB: 09448-29009-000	SPRING	1	-
28	41225-94400-000	RUBBER	1	Rp30.000
29	55320-95311-000	ZINC SET	1	Rp119.500
30	09116-06094-000	?BOLT (6X15)	1	Rp19.000
31	36894-95201-000	LEAD	1	Rp110.500
32	09125-05050-000 SUB: 29125-93J10-000	SCREW	2	Rp14.000	?09125-05050
33	DISCONTINUE SUB: 09161-05114-000	WASHER	2	-	%MODEL:00
34	41141-94301-000	ATTACHMENT	1	Rp538.500	OPT
