DT40W 40WR 40WK E13

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER FIG 2 CRANKSHAFT FIG 3 INLET CASE FIG 4 CARBURETOR (DT40W,40WR)FIG 5 CARBURETOR (DT40WK)FIG 6 OIL SEAL HOUSING FIG 7 EXHAUST TUBE FIG 8 FUEL PUMP (DT40W,40WR)FIG 9 FUEL PUMP (DT40WK)FIG 10 WATER PUMP FIG 11 RECOIL STARTER FIG 12 THROTTLE CONTROL (DT40W,40WR)FIG 13 THROTTLE CONTROL (DT40WK)FIG 14 CLUTCH FIG 15 TRANSMISSION FIG 16 STARTING MOTOR FIG 17 MAGNETO FIG 18 IGNITION FIG 19 ELECTRICAL FIG 20 IGNITION SWITCH FIG 21 CLAMP BRACKET FIG 22 SWIVEL BRACKET FIG 23 DRIVE SHAFT HOUSING FIG 24 GEAR CASE FIG 25 LOWER COVER FIG 26 ENGINE COVER FIG 27 ENGINE COVER (MODEL:02%10)FIG 27A ENGINE COVER (*)FIG 28 TILLER HANDLE FIG 29 FUEL TANK (DT40WK/PLASTIC/12L)FIG 30 FUEL TANK (PLASTIC/25L)FIG 31 REMOCON CABLE HOLDER (DT40WR)FIG 32 REMOTE CONTROL (DT40WR,MODEL:01%03)FIG 33 REMOTE CONTROL (DT40WR,MODEL:04%)FIG 34 OPT : STARTING MOTOR FIG 35 OPT : METER FIG 36 OPT : ELECTRICAL (MANUAL STARTER)FIG 37 OPT : ELECTRICAL (ELECTRIC STARTER)FIG 38 OPT : REMOTE CONTROL FIG 39 OPT : TILLER HANDLE FIG 40 OPT : REMOCON PARTS FIG 41 OPT : GASKET SET

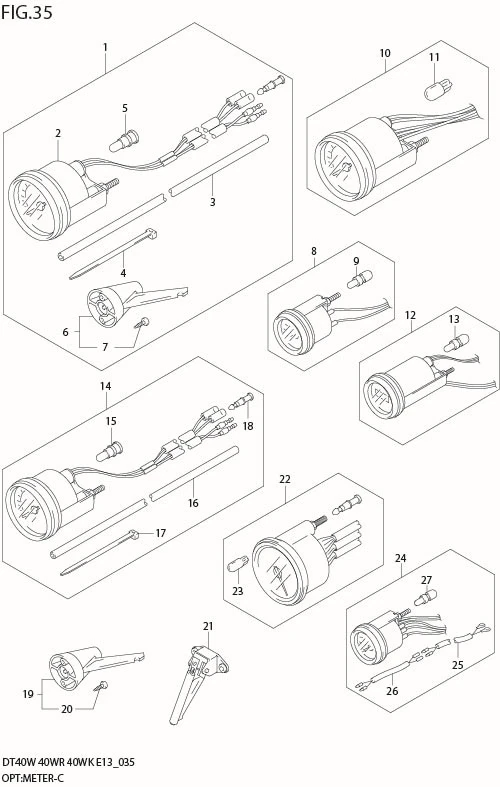

FIG 35 OPT : METER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 34102-92E10-000	SPEEDOMETER SET	1	-	MAX SPEED 80KM/H
1-1	DISCONTINUE SUB: 34102-92E00-000	SPEEDOMETER SET	1	-	MAX SPEED 130KM/H
1-3	34102-92E20-000	SPEEDOMETER SET	1	Rp2.078.500	MAX SPEED 45KNOTS
2-1	DISCONTINUE SUB: 34100-92E00-000	?SPEEDOMETER	1	-
2-2	34100-92E10-000	?SPEEDOMETER	1	Rp1.466.500
2-3	34100-92E20-000	?SPEEDOMETER	1	Rp1.480.500
3	34191-92E00-000	?TUBE	1	Rp244.500
4	09407-14407-000	?BAND	2	Rp18.500
5	09471-12179-000	?BULB	1	Rp25.500
6	DISCONTINUE SUB: 34190-95500-000	?SENDER ASSY	1	-
7	03112-06303-000	??SCREW	2	Rp11.500
8-2	DISCONTINUE SUB: 34600-93J00-000	METER ASSY	1	-	BLACK,MODEL:05%
8-3	34600-93J13-000 SUB: 34600-93J11-000	METER ASSY	1	Rp1.162.000	WHITE,MODEL:05%
8-1	DISCONTINUE SUB: 34600-92E00-000	METER ASSY	1	-
9-1	09471-12180-000	?BULB	1	Rp25.000
9-2	DISCONTINUE SUB: 09471-12103-000	?BULB	1	-	FOR 34600-93J00
10	DISCONTINUE SUB: 34200-92E02-000	TACHOMETER	1	-
11	09471-12179-000	?BULB	1	Rp25.500
12-1	DISCONTINUE SUB: 34500-92E00-000	METER ASSY	1	-
12-2	34500-93J02-000 SUB: 34500-93J00-000	METER ASSY	1	Rp1.918.500	BLACK,MODEL:05%
12-3	34500-93J13-000 SUB: 34500-93J11-000	METER ASSY	1	Rp2.048.500	WHITE,MODEL:05%
13-1	09471-12180-000	?BULB	1	Rp25.000
13-2	DISCONTINUE SUB: 09471-12103-000	?BULB	1	-	FOR 34500-93J00
14-1	34100-93J20-000	SPEEDOMETER ASSY	1	Rp1.301.500	MAX 80KM/H BLACK
14-2	34100-93J31-000	SPEEDOMETER ASSY	1	Rp1.301.500	MAX 80KM/H WHITE
14-3	DISCONTINUE SUB: 34100-93J40-000	SPEEDOMETER ASSY	1	-	MAX 45KNOTS BLACK
14-4	34100-93J53-000 SUB: 34100-93J51-000	SPEEDOMETER ASSY	1	Rp2.246.000	MAX 45KNOTS WHITE
15	09471-12028-000 SUB: 09471-12028L000	?BULB	1	Rp8.000
16	34191-92E00-000	?TUBE	1	Rp244.500
17	09407-14407-000	?BAND	2	Rp18.500
18	36615-96300-000	?TERMINAL	2	Rp11.000
19	DISCONTINUE SUB: 34190-95500-000	SENDER ASSY	1	-	MODEL:05,06
20	03112-06303-000	?SCREW	2	Rp11.500
21	DISCONTINUE SUB: 34190-87D00-000	SENDER ASSY	1	-	MODEL:05%
22-1	34200-93J20-000	TACHOMETER ASSY	1	Rp1.480.500	BLACK,MODEL:05%
22-2	34200-93J34-000 SUB: 34200-93J31-000	TACHOMETER ASSY	1	Rp2.161.000	WHITE,MODEL:05%
23	09471-12028-000 SUB: 09471-12028L000	?BULB	1	Rp8.000
24-1	DISCONTINUE SUB: 34300-93J00-000	GAUGE ASSY	1	-	BLACK,MODEL:05%
24-2	34300-93J11-000	GAUGE ASSY	1	Rp1.267.000	WHITE,MODEL:05%
25	34310-92E00-000	?LEAD	1	Rp702.000
26	34360-92E00-000	?ADAPTER	1	Rp288.000
27	DISCONTINUE SUB: 09471-12103-000	?BULB	1	-
