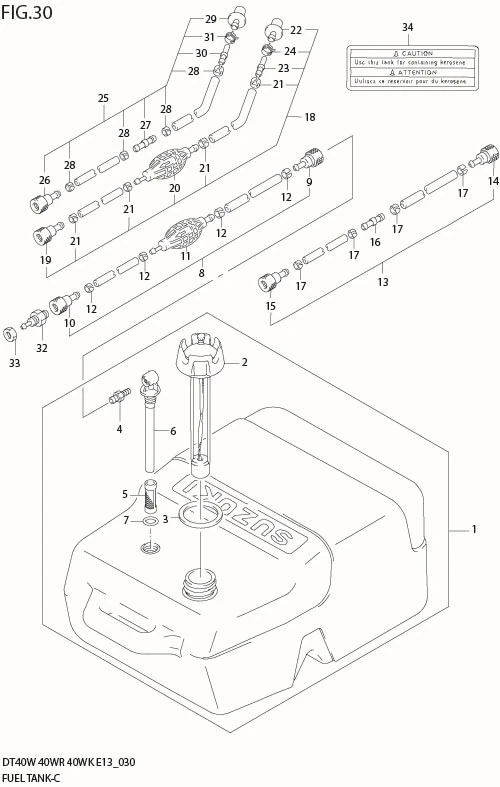

FIG 30 FUEL TANK (PLASTIC/25L)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	65000-94L10-000 SUB: 65000-95D01-000	TANK ASSY	1	Rp1.476.000
2	DISCONTINUE SUB: 65520-95D00-000	?CAP ASSY	1	-
3	65561-95D00-000	?GASKET	1	Rp18.000
4	65740-95D01-000	?PLUG	1	Rp375.500
5	65831-95D00-000	?FILTER	1	Rp90.000
6	DISCONTINUE SUB: 65890-95D00-000	?OUTLET ASSY	1	-
7	DISCONTINUE SUB: 65892-95D00-000	?O RING	1	-
8	65700-87D85-000 SUB: 65700-87D80-000	HOSE	1	Rp2.020.000	?65700-87D19
9	65750-95501-000 SUB: 65750-95500-000	?SOCKET	1	Rp374.000
10	65750-98506-000 SUB: 65750-98505-000	?SOCKET	1	Rp238.500
11	65770-87DL1-000 SUB: 65770-95541-000	?PUMP	1	Rp296.500
12	DISCONTINUE SUB: 65781-98500-000	?CLIP	4	-
13	65700-96362-000	HOSE	1	Rp734.500	FOR KEROSENE
14	65750-95501-000 SUB: 65750-95500-000	?SOCKET	1	Rp374.000
15	65750-98506-000 SUB: 65750-98505-000	?SOCKET	1	Rp238.500
16	DISCONTINUE SUB: 65779-93900-000	?UNION	1	-
17	DISCONTINUE SUB: 65781-98500-000	?CLIP	4	-
18	65700-87D45-000 SUB: 65700-87D44-000	HOSE	1	Rp897.000	E13,N/FUEL TANK
19	65750-98506-000 SUB: 65750-98505-000	?SOCKET	1	Rp238.500
20	65770-87DL1-000 SUB: 65770-95541-000	?PUMP	1	Rp296.500
21	DISCONTINUE SUB: 65781-98500-000	?CLIP	4	-
22	DISCONTINUE SUB: 65830-95500-000	?FILTER	1	-
23	65842-94401-000	?TUBE	1	Rp106.000
24	09401-11423-000	?CLIP	1	Rp19.500
25	65700-94424-000	HOSE	1	Rp734.500	!65700-87D44
26	65750-98506-000 SUB: 65750-98505-000	?SOCKET	1	Rp238.500
27	DISCONTINUE SUB: 65779-93900-000	?UNION	1	-
28	DISCONTINUE SUB: 65781-98500-000	?CLIP	4	-
29	DISCONTINUE SUB: 65830-95500-000	?FILTER	1	-
30	65842-94401-000	?TUBE	1	Rp106.000
31	09401-11423-000	?CLIP	1	Rp19.500
32	65720-985L1-000 SUB: 65720-98520-000	PLUG	1	Rp367.500
33	09140-10032-000	NUT	1	Rp15.000
34	65318-93910-000	MARK	1	Rp28.000	FOR KEROSENE
