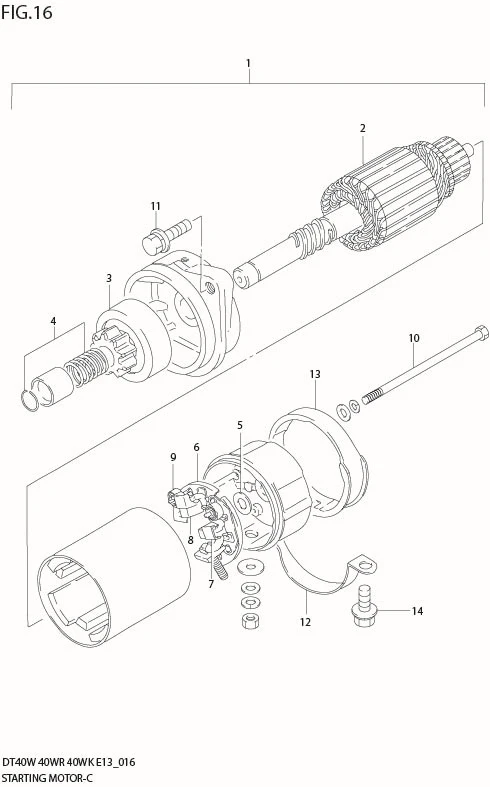

FIG 16 STARTING MOTOR

FIG 16 STARTING MOTOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	31100-94402-000 SUB: 31100-94401-000	MOTOR ASSY	1	Rp6.984.500
2	31310-96300-000	?ARMATURE	1	Rp3.371.000
3	31320-94400-000	?PINION ASSY	1	Rp1.863.500
4	31312-96300-000	?STOPPER SET	1	Rp109.500
5	31360-96300-000	?WASHER	1	Rp104.500
6	31173-89J00-000	?HOLDER ASSY	1	Rp579.000
7	DISCONTINUE SUB: 31131-96300-000	??BRUSH (+)	1	-
8	DISCONTINUE SUB: 31132-96300-000	??BRUSH (-)	1	-
9	31135-89J00-000	??SPRING	2	Rp45.500
10	31281-93340-000	?BOLT	2	Rp34.000
11	01580-08257-000	BOLT	2	Rp20.000
12	31912-94401-000	BAND	1	Rp49.000
13	31918-94402-000 SUB: 31918-94401-000	DAMPER	1	Rp76.500
14	01580-08257-000	BOLT	2	Rp20.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
