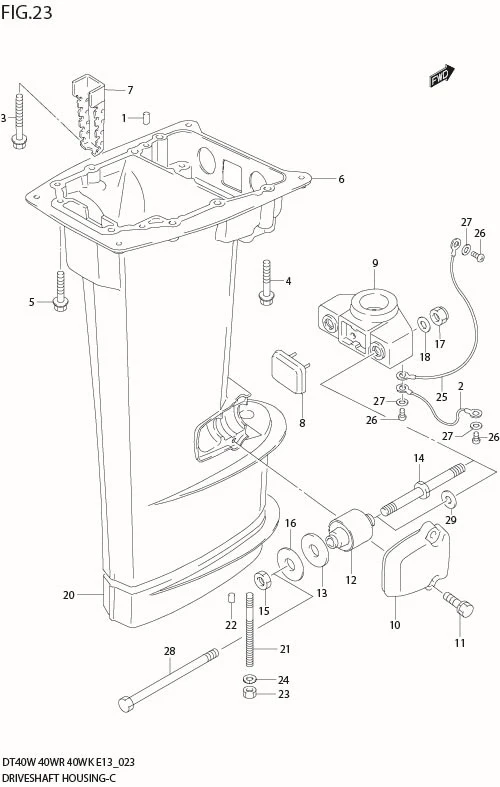

FIG 23 DRIVE SHAFT HOUSING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	09202-06031-000	PIN	2	Rp21.500
2	36894-95201-000	LEAD (L:165)	1	Rp110.500
3	09118-08172-000 SUB: 09118-08098-000	BOLT (8X85)	1	Rp53.000
4	09118-08171-000 SUB: 09118-08109-000	BOLT (8X75)	2	Rp136.000
5	09118-08168-000 SUB: 29118-93J00-000	BOLT (8X50)	6	Rp50.500	?09118-08106
6-9	52110-97E12-0EP	HOUSING	1	Rp3.200.500	TYPE:L2/LL/X
6-8	52110-97E12-0EP SUB: 52110-97E11-0EP	HOUSING	1	Rp3.200.500	TYPE:L2/LL/X
6-7	DISCONTINUE SUB: 52110-97E11-0ED	HOUSING	1	-	TYPE:L2/LL/X
6-6	52110-97E22-0EP	HOUSING	1	Rp3.092.000	TYPE:L
6-5	52110-97E22-0EP SUB: 52110-97E21-0EP	HOUSING	1	Rp3.092.000	TYPE:L
6-4	52110-97E22-0ED SUB: 52110-97E21-0ED	HOUSING	1	Rp3.471.500	TYPE:L
6-3	52110-97E02-0EP	HOUSING	1	Rp2.875.000	TYPE:S
6-2	52110-97E02-0EP SUB: 52110-97E01-0EP	HOUSING	1	Rp2.875.000	TYPE:S
6-1	DISCONTINUE SUB: 52110-97E01-0ED	HOUSING	1	-	TYPE:S
7	11435-94400-000	PLATE	1	Rp35.000
8-1	54151-99E00-000 SUB: 54151-94400-000	MOUNT	1	Rp56.500
8-2	54151-99E00-000	MOUNT	1	Rp56.500	MODEL:06%
9-1	54200-87852-0ED SUB: 54211-87J01-0ED	BRACKET	1	Rp1.012.500
9-2	54200-87852-0EP SUB: 54211-87J01-0EP	BRACKET	1	Rp1.525.000	MODEL:02%
9-3	54211-87J10-0EP	BRACKET	1	Rp695.500	DT40W(WR):510871%
10-1	DISCONTINUE SUB: 54221-94400-0ED	COVER	2	-
10-2	54221-94400-0EP	COVER	1	Rp287.500	MODEL:02%05
10-3	54221-92L00-0EP SUB: 54221-94401-0EP	COVER	1	Rp349.500	DT40W(WR):511655%
11	09117-08104-000	BOLT (8X35)	4	Rp26.000	?09117-08071
12-1	54160-94410-000	MOUNT	2	Rp296.000	S/L
12-2	54160-92L00-000 SUB: 54160-94421-000	MOUNT	2	Rp283.000	L2/LL/X
13	DISCONTINUE SUB: 54165-94400-000	DAMPER	2	-
14	54166-94420-000	BOLT	2	Rp241.000	DT40W(WR):%510870
15	DISCONTINUE SUB: 09140-12029-000	NUT	2	-
16-1	DISCONTINUE SUB: 09160-12065-000	WASHER (12X40X3)	2	-
16-2	09160-13018-000	WASHER (13X40X3)	2	Rp36.000	DT40W(WR):510871%
17	09159-12014-000	NUT	2	Rp37.000
18	09160-12066-000	WASHER (12.5X22X2.5)	2	Rp13.500
20-4	52131-94402-0EP	CASE	1	Rp2.177.000	TYPE:X
20-3	52131-94401-0ED	CASE	1	Rp1.480.500	TYPE:X
20-2	52131-94412-0EP	CASE	1	Rp1.552.000	TYPE:LL
20-1	DISCONTINUE SUB: 52131-94411-0ED	CASE	1	-	TYPE:LL
21-1	09108-08152-000	STUD BOLT (LL)	6	Rp66.000	L:95
21-2	DISCONTINUE SUB: 09108-08153-000	STUD BOLT (X)	6	-	L:145
22	DISCONTINUE SUB: 09202-06023-000	PIN	2	-
23	09140-08023-XC0	NUT (LL/X)	6	Rp22.500	?09140-08016
24	29162-93J10-000	LOCK WASHER (LL/X)	6	Rp16.000	?09162-08007
25	DISCONTINUE SUB: 36894-94401-000	LEAD (L:195)	1	-
26	09125-05050-000 SUB: 29125-93J10-000	SCREW	3	Rp14.000	?09125-05050
27	DISCONTINUE SUB: 09161-05114-000	WASHER	3	-	%MODEL:00
28-1	54166-94431-000 SUB: 54166-94430-000	BOLT	2	Rp189.000	DT40W(WR):510871%
28-2	54166-94431-000	BOLT	2	Rp189.000	MODEL:08%
29	09160-12108-000	WASHER	2	Rp16.000	DT40W(WR):510871%
