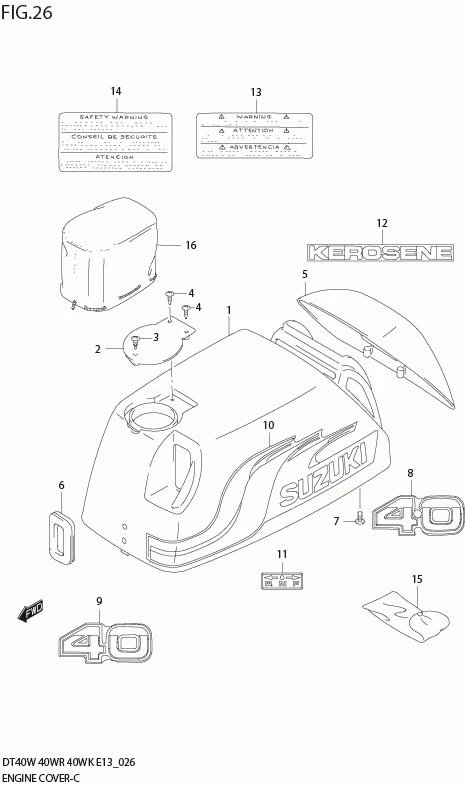

FIG 26 ENGINE COVER

FIG 26 ENGINE COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 61420-94874-0ED	COVER SET	1	-
2	DISCONTINUE SUB: 61481-94431-0ED	?CAP	1	-
3	03242-0510B-000 SUB: 03242-05103-000	?SCREW	1	Rp18.000
4	03241-0512A-000 SUB: 03242-05123-000	?SCREW	2	Rp3.500
5	DISCONTINUE SUB: 61431-94400-019	?HANDLE	1	-
6	61622-95500-000	?SEAL	1	Rp67.000
7	03541-0616A-000 SUB: 03542-06163-000	?SCREW	4	Rp13.500
8	DISCONTINUE SUB: 61435-97E20-000	?MARK	1	-
9	DISCONTINUE SUB: 61435-97E40-000	?MARK	1	-
10-1	61443-97E00-000	?STRIPE	1	Rp364.500
10-2	61453-97E00-000	?STRIPE	1	Rp364.500
11	21131-96010-000 SUB: 21131-96003-000	?MARK	1	Rp12.000
12	61449-94401-000 SUB: 61449-94400-000	MARK	1	Rp62.000	DT40WK
13	DISCONTINUE SUB: 61457-98502-000	MARK	1	-
14	DISCONTINUE SUB: 61458-98502-000	MARK	1	-
15	DISCONTINUE SUB: 09800-01008-000	TOOL SET	1	-
16	DISCONTINUE SUB: 68110-94400-000	COVER	1	-	OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
