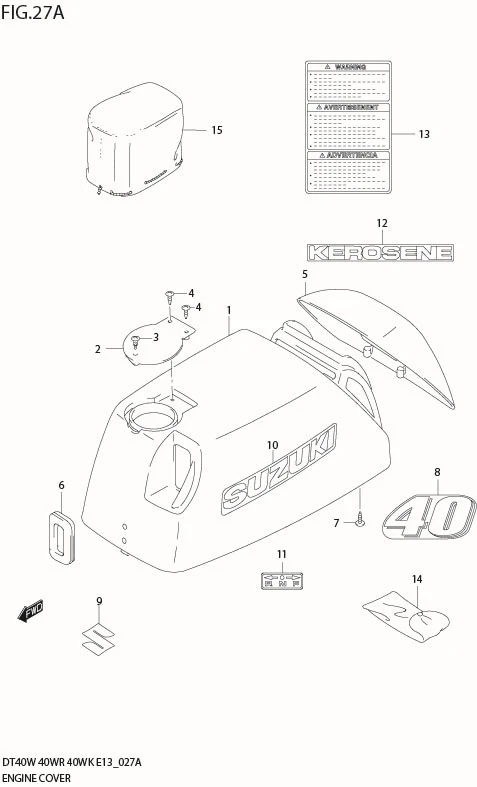

FIG 27A ENGINE COVER (*)

FIG 27A ENGINE COVER (*)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61400-94Y50-0EP	COVER SET	1	Rp6.734.000
2	61481-94431-0EP	?CAP	1	Rp735.000
3	03242-0510B-000 SUB: 03242-05109-000	?SCREW	1	Rp18.000
4	03242-0510B-000 SUB: 03242-05109-000	?SCREW	2	Rp18.000
5	DISCONTINUE SUB: 61431-94400-019	?HANDLE	1	-
6	61622-95500-000	?SEAL	1	Rp67.000
7	03542-06169-000	?SCREW	4	Rp16.000
8	61435-944A1-000 SUB: 61435-944A0-000	?MARK	1	Rp89.000
9	68641-32G00-YD8	?EMBLEM "S"	1	Rp98.000
10	61441-96321-000 SUB: 61441-96320-000	?MARK "SUZUKI"	2	Rp131.000
11	21131-96010-000	?MARK	1	Rp12.000
12	61449-93921-000	MARK	1	Rp81.500	DT40WK
13	DISCONTINUE SUB: 61581-98620-000	LABEL	1	-
14	DISCONTINUE SUB: 09800-01008-000	TOOL SET	1	-
15	DISCONTINUE SUB: 68110-94400-000	COVER	1	-	OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
