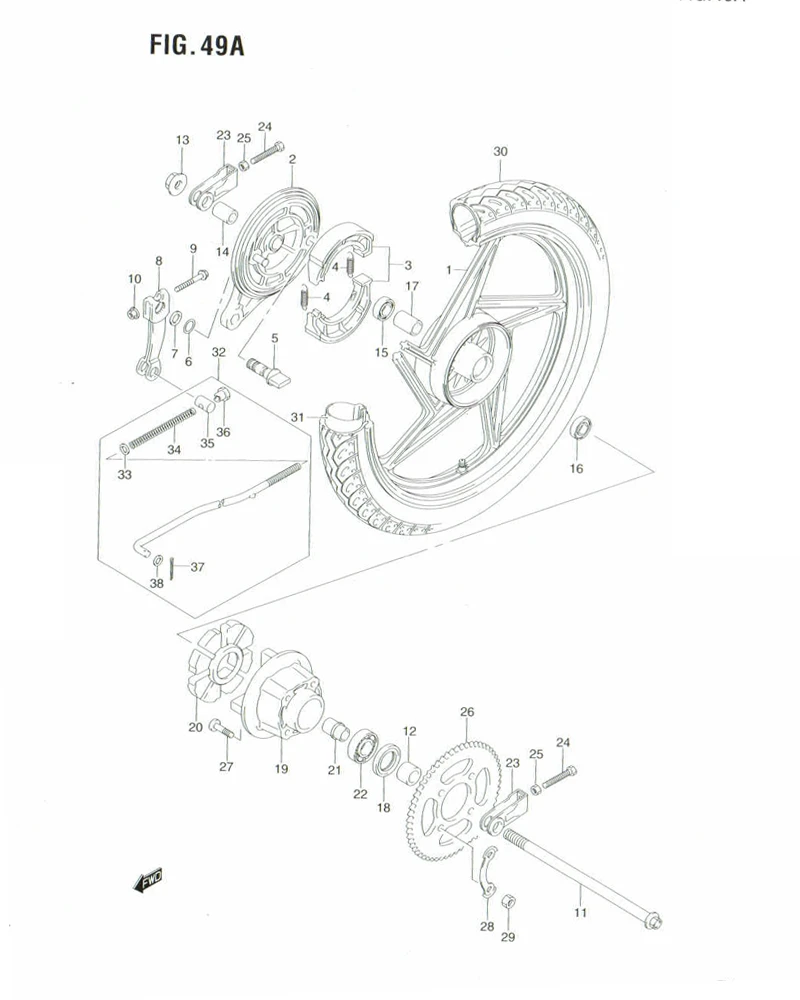

FIG. 49A REAR WHEEL (EN125-2AK6/ZK7)

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 64150-45F70-000	WHEEL, REAR (MT1.85X18)	1	-
2	64210H2D010H000 SUB: 64210-45FA0-000	PANEL, REAR BRAKE ANCHOR	1	Rp246.000
3	54410-07021-000 SUB: 54400-45810-000	SHOE SET, BRAKE	1	Rp85.000
4	55421-45F00-000	SPRING	2	Rp6.500
5	54441-45FC0-000 SUB: 54441-45FA0-000	CAM, BRAKE	1	Rp52.500
6	09280-14011-000	O RING (ID:13.8,D:2.50)	1	Rp7.500
7	09160-14055-000	WASHER	1	Rp16.500
8	64451-45FA0-000	LEVEL, BRAKE CAM	1	Rp58.500
9	01550-0635A-000 SUB: 01550-06353-000	BOLT	1	Rp3.000
10	08316-10068-000	NUT	1	Rp4.500
11	DISCONTINUE SUB: 64711-05330-000	AXLE, REAR	1	-
12	09180-15042-000	SPACER, LH (15X28X19)	1	Rp42.500
13	08319-3114A-000 SUB: 08319-31148-000	NUT	1	Rp53.000
14	09180-15002-000	SPACER, RH (15X22X33)	1	Rp38.500
15	08144-63027-000	BEARING, RH	1	Rp120.500
16	08143-62027-000	BEARING, LH	1	Rp29.500
17	09180-15011-000	SPACER, HUB (15.3X21.7X63)	1	Rp38.500
18	09285-28004-000 SUB: 09285-28001-000	OIL SEAL (28X47X7)	1	Rp106.000
19	DISCONTINUE SUB: 64610-05310-000	DRUM, SPROCKET MOUNTING	1	-
20	64651H38300H000 SUB: 64651-38300-000	SHOCK ABSORBER, WHEEL	1	Rp106.000
21	64733-05301-000	RETAINER, DRUM	1	Rp35.500
22	09262-20069-000	BEARING (20X47X14)	1	Rp154.500
23	61410-36002-000	ADJUSTER, CHAIN	2	Rp98.500
24	DISCONTINUE SUB: 09104-08034-000	BOLT (8X50)	2	-
25	08310-00087-000	BOLT (8X50)	2	Rp16.500
26	64511H2A001H000 SUB: 64511-45F00-000	SPROCKET, REAR (NT:45)	1	Rp151.000
27	09119-08043-000	BOLT (8X33)	4	Rp13.500
28	09169-08012-000	WASHER	2	Rp12.500
29	08310-0008B-000 SUB: 08310-00083-000	NUT	4	Rp15.500
30	DISCONTINUE SUB: 65110-45F20-000	TIRE, REAR, 90/90-18 51P	1	-
31	65200-45F20-000	TUBE ASSY, WHEEL INNER	1	-
32	4330-45F10	ROD ASSY, REAR BRAKE	1	-
33	DISCONTINUE SUB: 08322-01063-000	.WASHER	1	-
34	09440-09004-000	.SPRING	1	Rp12.500
35	09209-11002-000	.PIN	1	Rp7.500
36	09150-06010-000	.NUT	1	Rp4.500
37	04111-2015A-000 SUB: 04111-20158-000	.COTTER PIN	1	Rp4.500
38	DISCONTINUE SUB: 08322-01063-000	.WASHER	1	-
