Thunder 125 EN125-2AK6

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 27 WIRING HARNESS (MODEL K5/K6)FIG. 27A WIRING HARNESS (MODEL K7)FIG. 27B HANDLE SWITCH (MODEL K6)FIG. 27C HANDLE SWITCH (MODEL K7)FIG. 28 FRAMEFIG. 29 STANDFIG. 30 FOOTRESTFIG. 31 FUEL TANKFIG. 32 FUEL COCKFIG. 33 FRAME COVERFIG. 35 FRONT FENDERFIG.36 HANDLEBARFIG. 37 HANDLE LEVER (MODEL K5)FIG. 37A HANDLE LEVER (MODEL K6/K7)FIG. 38 REAR FENDERFIG. 39 LABELFIG. 40 SEATFIG. 41 SEAT TAIL COVER (EN125-2AK5/K6)FIG. 41 SEAT TAIL COVER (EN125-2AK7)FIG. 41B SEAT TAIL COVER (EN125-2AZK7)FIG. 42 FRONT DAMPER (MODEL K5/K6)FIG. 42A FRONT DAMPER (MODEL K7)FIG. 43 STEERING STEMFIG. 44 FRONT WHEEL (EN125-2AK5/K6/ZK7)FIG. 44A FRONT WHEEL (EN125-2AK7)FIG. 45 FRONT CALIPERFIG. 47 REAR SWINGING ARMFIG. 48 CHAIN CASEFIG. 49 REAR WHELL (EN125-2AK5)FIG. 49A REAR WHEEL (EN125-2AK6/ZK7)FIG. 49B REAR WHEEL (EN125-2AK7)

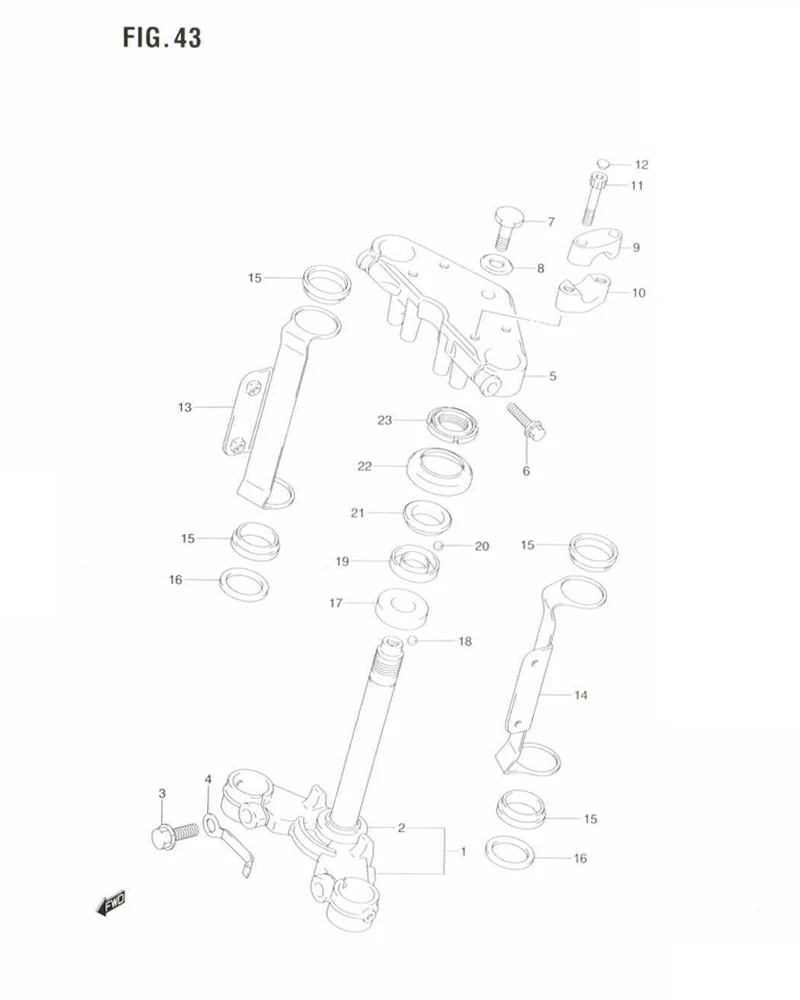

FIG. 43 STEERING STEM

FIG. 43 STEERING STEM
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 51410-45F50-000		 STEM, STEERING 1 -
1-1 DISCONTINUE
SUB: 51410-45F40-000		 STEM, STEERING 1 -
2 51621-33001-000 .RACE, OUTER LOWER 1 Rp79.000
3 01570-1235B-000 BOLT, STEM 2 Rp15.500
4 DISCONTINUE
SUB: 51455-45F10-000		 CLAMP 1 -
5 51311-45F10-000 HEAD, STEERING STEM 1 Rp452.500
6 01580-0840B-000 BOLT, HEAD 2 Rp10.500
7 51351-05300-000 BOLT, STEM HEAD 1 Rp25.500
8 51356-05300-000 WASHER, STEM HEAD 1 Rp12.500
9 56211-45F10-000 HOLDER, HANDLE UPPER 2 Rp36.000
10 56221-45F10-000 HOLDER, HANDLE LOWER 2 Rp38.000
11 07130-0845B-000 BOLT 4 Rp5.500
12 09250-0601 CAP 4 -
13 51530-45F10-000 BRACKET, HEADLAMP RH 1 Rp58.500
14 51540-45F10-000 BRACKET, HEADLAMP LH 1 Rp58.500
15 51553-29312-000
SUB: 51553-29311-000		 DAMPER, HEADLAMP BRACKET 4 Rp10.500
16 51555-45F00-000 SPACER, HEADLAMP BRACKET 2 Rp13.500
17 51611-33002-000 RACE, INNER LOWER 1 Rp82.000
18 06111-08003-000 STEEL BALL, LOWER 18 Rp8.500
19 51611-20002-000 STEEL BALL, LOWER 1 Rp55.500
20 06111-06004-000
SUB: 06111-06003-000		 STEEL BALL, UPPER 22 Rp1.000
21 51621-28000-000 RACE, OUTER UPPER 1 Rp23.000
22 51643-25001-000 DUST SEAL 1 Rp23.000
23 51631-28000-000 NUT, STEERING STEM 1 Rp27.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
