Thunder 125 EN125-2AK6

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 27 WIRING HARNESS (MODEL K5/K6)FIG. 27A WIRING HARNESS (MODEL K7)FIG. 27B HANDLE SWITCH (MODEL K6)FIG. 27C HANDLE SWITCH (MODEL K7)FIG. 28 FRAME FIG. 29 STAND FIG. 30 FOOTREST FIG. 31 FUEL TANK FIG. 32 FUEL COCK FIG. 33 FRAME COVER FIG. 35 FRONT FENDER FIG.36 HANDLEBAR FIG. 37 HANDLE LEVER (MODEL K5)FIG. 37A HANDLE LEVER (MODEL K6/K7)FIG. 38 REAR FENDER FIG. 39 LABEL FIG. 40 SEAT FIG. 41 SEAT TAIL COVER (EN125-2AK5/K6)FIG. 41 SEAT TAIL COVER (EN125-2AK7)FIG. 41B SEAT TAIL COVER (EN125-2AZK7)FIG. 42 FRONT DAMPER (MODEL K5/K6)FIG. 42A FRONT DAMPER (MODEL K7)FIG. 43 STEERING STEM FIG. 44 FRONT WHEEL (EN125-2AK5/K6/ZK7)FIG. 44A FRONT WHEEL (EN125-2AK7)FIG. 45 FRONT CALIPER FIG. 47 REAR SWINGING ARM FIG. 48 CHAIN CASE FIG. 49 REAR WHELL (EN125-2AK5)FIG. 49A REAR WHEEL (EN125-2AK6/ZK7)FIG. 49B REAR WHEEL (EN125-2AK7)

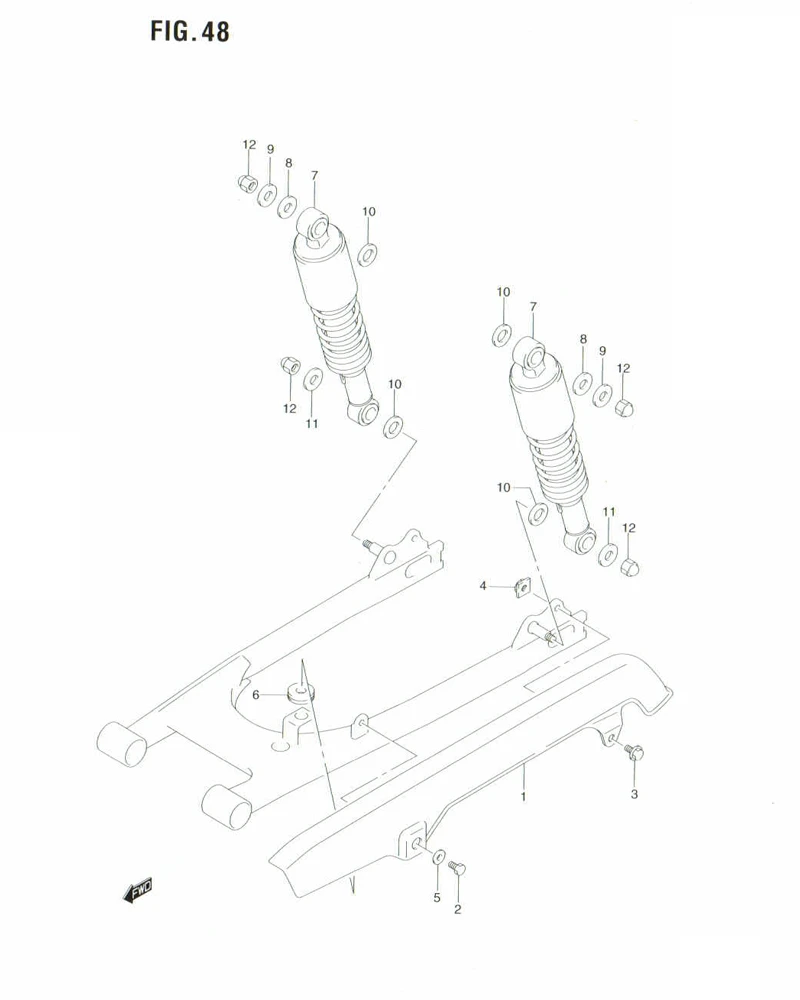

FIG. 48 CHAIN CASE

FIG. 48 CHAIN CASE

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61311-13002-000 SUB: 61311-13001-000	CASE, CHAIN	1	Rp62.500
2	01500-0610A-000 SUB: 01500-0610B-000	BOLT, FRONT	1	Rp6.500
3	01570-0612B-000	BOLT, REAR	1	Rp4.000
4	61316-45FA0-000	NUT, REAR	1	Rp4.000
5	61315-45F00-000	WASHER	1	Rp5.500
6	48169-12JA0-000 SUB: 09320-08018-000	CUSHION, INNER	1	Rp15.000
7	62100-45F50-000 SUB: 62100-45F21-000	ABSORBER ASSY, REAR SHOCK	2	Rp351.000
8	09160-10093-000	WASHER, UPPER	2	Rp12.500
9	DISCONTINUE SUB: 09160-10033-000	WASHER, UPPER NO.2	2	-
10	DISCONTINUE SUB: 62145-45F00-000	WASHER, INNER	4	-
11	09160-10093-000	WASHER, LOWER	2	Rp12.500
12	08313-10107-000	NUT	4	Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
