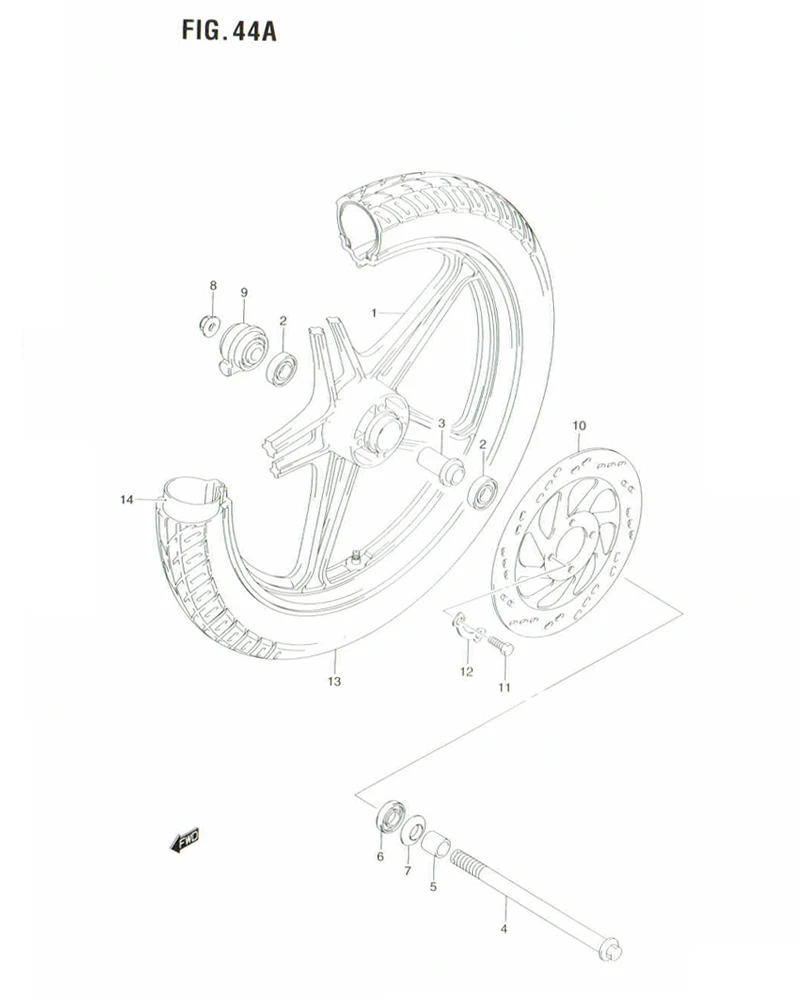

FIG. 44A FRONT WHEEL (EN125-2AK7)

FIG. 44A FRONT WHEEL (EN125-2AK7)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 54111-45F70-000	WHEEL, FRONT (18X1.60)	1	-
2	08133-6301B-000 SUB: 08133-63017-000	BEARING	2	Rp46.500
3	08133-6301B-000 SUB: 08133-63017-000	SPACER	1	Rp46.500
4	54711-05310-000	AXLE, FRONT	1	Rp61.000
5	54741-45F00-000	SPACER, LH	1	Rp13.500
6	54742-45F00-000	SEAL, FRONT HUB	1	Rp11.000
7	54892,45F00-000	COVER, FRONT HUB DUST SEAL	1	-
8	08319-3112A-000	NUT	1	Rp7.000
9	54600-36450-000 SUB: 54600-36410-000	BOX ASSY, SPEEDOMETER GEAR	1	Rp160.500
10	DISCONTINUE SUB: 59211-05500-000	DISC, FRONT BRAKE	1	-
11	59421-45F00-000 SUB: 09100-08140-000	BOLT (8X28)	4	Rp8.000
12	09169-08019-000	WASHER	2	Rp13.000
13	DISCONTINUE SUB: 55110-45F20-000	TIRE, FRONT (80/90-18)	1	-
14	55200-45F20-000	TUBE ASSY, WHEEL INNER	1	Rp65.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
