Thunder 125 EN125-2AK6

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 27 WIRING HARNESS (MODEL K5/K6)FIG. 27A WIRING HARNESS (MODEL K7)FIG. 27B HANDLE SWITCH (MODEL K6)FIG. 27C HANDLE SWITCH (MODEL K7)FIG. 28 FRAME FIG. 29 STAND FIG. 30 FOOTREST FIG. 31 FUEL TANK FIG. 32 FUEL COCK FIG. 33 FRAME COVER FIG. 35 FRONT FENDER FIG.36 HANDLEBAR FIG. 37 HANDLE LEVER (MODEL K5)FIG. 37A HANDLE LEVER (MODEL K6/K7)FIG. 38 REAR FENDER FIG. 39 LABEL FIG. 40 SEAT FIG. 41 SEAT TAIL COVER (EN125-2AK5/K6)FIG. 41 SEAT TAIL COVER (EN125-2AK7)FIG. 41B SEAT TAIL COVER (EN125-2AZK7)FIG. 42 FRONT DAMPER (MODEL K5/K6)FIG. 42A FRONT DAMPER (MODEL K7)FIG. 43 STEERING STEM FIG. 44 FRONT WHEEL (EN125-2AK5/K6/ZK7)FIG. 44A FRONT WHEEL (EN125-2AK7)FIG. 45 FRONT CALIPER FIG. 47 REAR SWINGING ARM FIG. 48 CHAIN CASE FIG. 49 REAR WHELL (EN125-2AK5)FIG. 49A REAR WHEEL (EN125-2AK6/ZK7)FIG. 49B REAR WHEEL (EN125-2AK7)

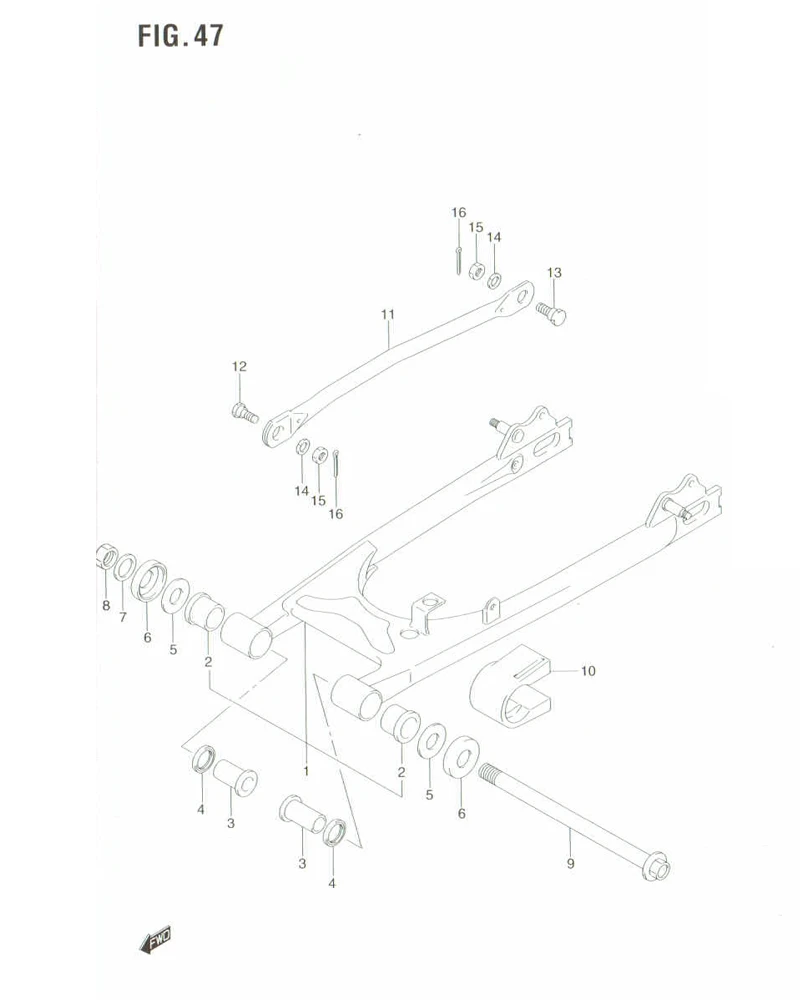

FIG. 47 REAR SWINGING ARM

FIG. 47 REAR SWINGING ARM

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61000-45F32-000 SUB: 61000-45F31-000	SWINGING ARM ASSY, REAR	1	Rp414.500
2	61261-45F11-000 SUB: 61261-45F10-000	.BUSH	2	Rp30.000
3	61251-05300-000	SPACER, ARM PIVOT	2	Rp121.500
4	09286-20001-000	OIL SEAL (20X27X5)	2	Rp18.000
5	08211-14341-000	WASHER	2	Rp18.000
6	61262-45002-000	COVER, ARM PIVOT	2	Rp48.500
7	08322-0114B-000	WASHER	1	Rp16.000
8	08319-2114A-000	NUT	1	Rp24.500
9-1	61211-05302-000	SHAFT, PIVOT	1	Rp125.500
9-2	61211-45F10-000	SHAFT, PIVOT	1	Rp55.500
10	61273H05300H000 SUB: 61273-05300-000	BUFFER, CHAIN TOUCH DEFENSE	1	Rp53.500
11	64310-26H00-000 SUB: 64310-45FA0-000	TORQUE LINK, REAR	1	Rp56.500
12	09111-08012-000	BOLT, FRONT (8X22.5)	1	Rp19.500
13	09111-08013-000	BOLT, REAR (8X26.5)	1	Rp5.500
14	09162-08008-000	LOCK WASHER	2	Rp16.500
15	09140-08008-000	NUT	2	Rp10.500
16	04111-2020A-000	COTTER PIN	2	Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
