Thunder 125 EN125-2AK6

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 27 WIRING HARNESS (MODEL K5/K6)FIG. 27A WIRING HARNESS (MODEL K7)FIG. 27B HANDLE SWITCH (MODEL K6)FIG. 27C HANDLE SWITCH (MODEL K7)FIG. 28 FRAME FIG. 29 STAND FIG. 30 FOOTREST FIG. 31 FUEL TANK FIG. 32 FUEL COCK FIG. 33 FRAME COVER FIG. 35 FRONT FENDER FIG.36 HANDLEBAR FIG. 37 HANDLE LEVER (MODEL K5)FIG. 37A HANDLE LEVER (MODEL K6/K7)FIG. 38 REAR FENDER FIG. 39 LABEL FIG. 40 SEAT FIG. 41 SEAT TAIL COVER (EN125-2AK5/K6)FIG. 41 SEAT TAIL COVER (EN125-2AK7)FIG. 41B SEAT TAIL COVER (EN125-2AZK7)FIG. 42 FRONT DAMPER (MODEL K5/K6)FIG. 42A FRONT DAMPER (MODEL K7)FIG. 43 STEERING STEM FIG. 44 FRONT WHEEL (EN125-2AK5/K6/ZK7)FIG. 44A FRONT WHEEL (EN125-2AK7)FIG. 45 FRONT CALIPER FIG. 47 REAR SWINGING ARM FIG. 48 CHAIN CASE FIG. 49 REAR WHELL (EN125-2AK5)FIG. 49A REAR WHEEL (EN125-2AK6/ZK7)FIG. 49B REAR WHEEL (EN125-2AK7)

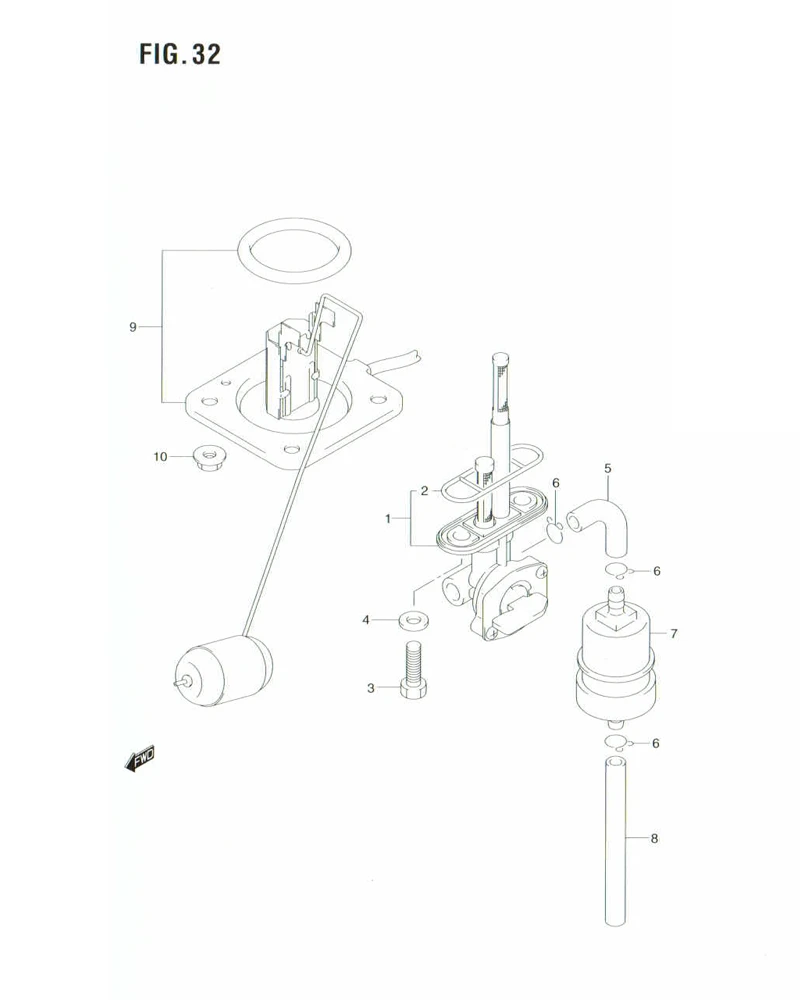

FIG. 32 FUEL COCK

FIG. 32 FUEL COCK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	44300-45F10-000	COCK ASSY, FUEL	1	Rp93.000
2	44348-87420-000	.O RING, JOINT	1	Rp10.500
3	09128-06057-000 SUB: 09128-06006-000	BOLT	2	Rp20.500
4	09168-06026-000	GASKET	2	Rp20.000
5	44421-45F10-000	HOSE, FUEL UPPER	1	Rp4.500
6	09401-08401-000	CLIP	4	Rp10.500
7	44330H45F11H000 SUB: 44330-45F10-000	FILTER, FUEL	1	Rp34.500
8	44422-45F10-000	HOSE, FUEL LOWER	1	Rp5.000
9	34810-45F00-000	GAUGE ASSY, FUEL LEVEL	1	Rp60.000
10	08316-10068-000	NUT	4	Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
