Thunder 125 EN125-2AK6

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 27 WIRING HARNESS (MODEL K5/K6)FIG. 27A WIRING HARNESS (MODEL K7)FIG. 27B HANDLE SWITCH (MODEL K6)FIG. 27C HANDLE SWITCH (MODEL K7)FIG. 28 FRAME FIG. 29 STAND FIG. 30 FOOTREST FIG. 31 FUEL TANK FIG. 32 FUEL COCK FIG. 33 FRAME COVER FIG. 35 FRONT FENDER FIG.36 HANDLEBAR FIG. 37 HANDLE LEVER (MODEL K5)FIG. 37A HANDLE LEVER (MODEL K6/K7)FIG. 38 REAR FENDER FIG. 39 LABEL FIG. 40 SEAT FIG. 41 SEAT TAIL COVER (EN125-2AK5/K6)FIG. 41 SEAT TAIL COVER (EN125-2AK7)FIG. 41B SEAT TAIL COVER (EN125-2AZK7)FIG. 42 FRONT DAMPER (MODEL K5/K6)FIG. 42A FRONT DAMPER (MODEL K7)FIG. 43 STEERING STEM FIG. 44 FRONT WHEEL (EN125-2AK5/K6/ZK7)FIG. 44A FRONT WHEEL (EN125-2AK7)FIG. 45 FRONT CALIPER FIG. 47 REAR SWINGING ARM FIG. 48 CHAIN CASE FIG. 49 REAR WHELL (EN125-2AK5)FIG. 49A REAR WHEEL (EN125-2AK6/ZK7)FIG. 49B REAR WHEEL (EN125-2AK7)

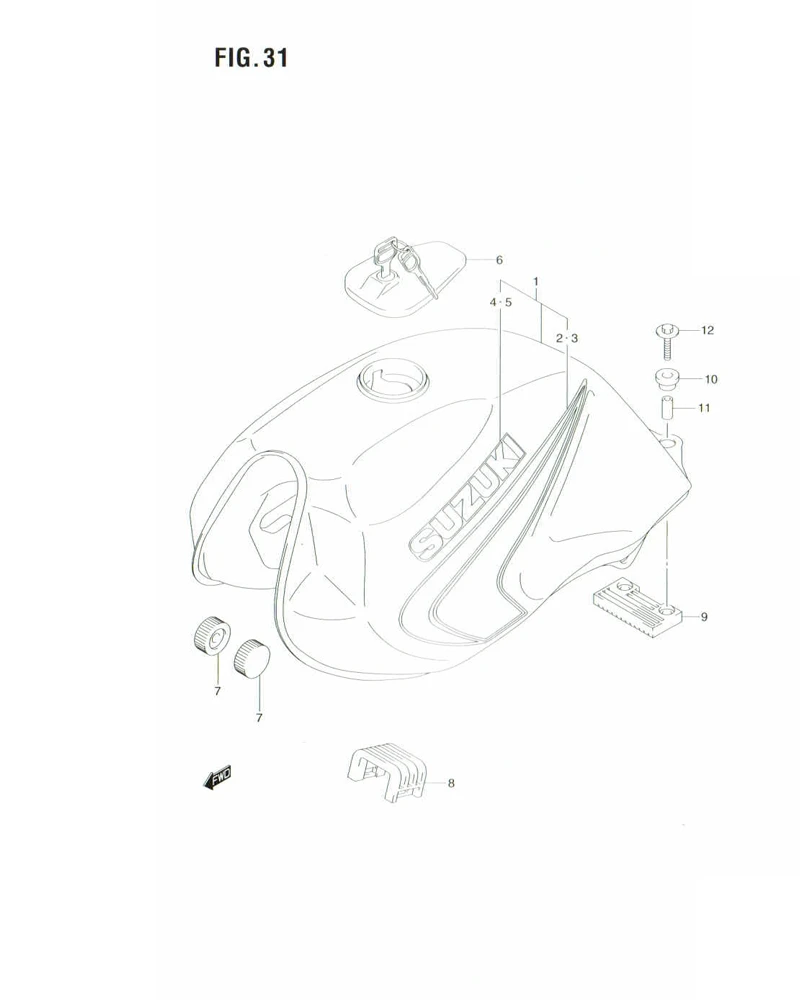

FIG. 31 FUEL TANK

No	No. Part	Description	Qty	Price Per Pcs
1-2	44011H22Y30HF02 SUB: 44100-45F30-YGB	TANK ASSY, FUEL (BLUE)	1	Rp1.805.000
1-3	44011H22Y30HF03 SUB: 44100-45F30-YHP	TANK ASSY, FUEL (BLACK)	1	Rp1.545.500
1-4	44011H22Y30HF04 SUB: 44100-45F30-YLN	TANK ASSY, FUEL (SILVER)	1	Rp1.262.500
1-5	44012H22Y60HF02 SUB: 44100-45F70-YFZ	TANK ASSY, FUEL (RED)	1	Rp1.574.500
1-6	44012H22Y60HF03 SUB: 44100-45F70-YGB	TANK ASSY, FUEL (BLUE)	1	Rp1.369.000
1-7	44012H22Y60HF01 SUB: 44100-45F70-YHP	TANK ASSY, FUEL (BLACK)	1	Rp1.528.500
1-8	44012H22Y60HF04 SUB: 44100-45F70-YLN	TANK ASSY, FUEL (SILVER)	1	Rp1.363.500
1-9	44100-45F60-YNZ	TANK ASSY, FUEL (WHITE)	1	-
1-1	44011H22Y30HF01 SUB: 44100-45F30-YFZ	TANK ASSY, FUEL (RED)	1	Rp1.805.000
2-2	DISCONTINUE SUB: 68110-45F30-YGB	.TAPE SET, RH (BLUE)	1	-
2-8	68110-45F70-YLN	.TAPE SET, RH (SILVER)	1	Rp70.000
2-7	68110-45F70-YHP	.TAPE SET, RH (BLACK)	1	Rp69.500
2-6	DISCONTINUE SUB: 68110-45F70-YGB	.TAPE SET, RH (BLUE)	1	-
2-5	DISCONTINUE SUB: 68110-45F70-YFZ	.TAPE SET, RH (RED)	1	-
2-4	68110-45F30-YLN	.TAPE SET, RH (SILVER)	1	Rp66.000
2-3	68110-45F30-YHP	.TAPE SET, RH (BLACK)	1	Rp65.500
2-1	DISCONTINUE SUB: 68110-45F30-YFZ	.TAPE SET, RH (RED)	1	-
3-3	68120-45F30-YHP	.TAPE SET, LH (BLACK)	1	Rp65.500
3-8	DISCONTINUE SUB: 68120-45F70-YLN	.TAPE SET, LH (SILVER)	1	-
3-7	68120-45F70-YHP	.TAPE SET, LH (BLACK)	1	Rp69.500
3-6	DISCONTINUE SUB: 68120-45F70-YGB	.TAPE SET, LH (BLUE)	1	-
3-4	68120-45F30-YLN	.TAPE SET, LH (SILVER)	1	Rp66.000
3-2	DISCONTINUE SUB: 68120-45F30-YGB	.TAPE SET, LH (BLUE)	1	-
3-1	DISCONTINUE SUB: 68120-45F30-YFZ	.TAPE SET, LH (RED)	1	-
3-5	DISCONTINUE SUB: 68120-45F70-YFZ	.TAPE SET, LH (RED)	1	-
4-1	68131-45F60-YFZ	.EMBLEM (RED)	2	-
4-2	68131-45F60-YNZ	.EMBLEM (WHITE)	2	-
4-3	DISCONTINUE SUB: 68111-45F70-YHP	.EMBLEM (BLACK)	2	-
4-4	DISCONTINUE SUB: 68111-45F70-YLN	.EMBLEM (SILVER)	2	-
5-1	DISCONTINUE SUB: 68132-45F10-YFZ	.EMBLEM (RED)	2	-
5-2	68132-45F10-YNZ	.EMBLEM (WHITE)	2	-
6	44200-45FB0-000 SUB: 44200-45F10-000	CAP SET, FUEL	1	Rp179.500
7	09329-10016-000	CUSHION, FRONT	2	Rp3.500
8	44541-38200-000	CUSHION, UPPER FRONT	1	Rp11.500
9	DISCONTINUE SUB: 44542-38300-000	CUSHION, UPPER REAR	1	-
10	09320-10022-000	CUSHION REAR, NO.2	2	Rp3.500
11	09180-06067-000	SPACER	2	Rp8.500
12	DISCONTINUE SUB: 09116-06084-000	BOLT	2	-
