Thunder 125 EN125-2AK6

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 27 WIRING HARNESS (MODEL K5/K6)FIG. 27A WIRING HARNESS (MODEL K7)FIG. 27B HANDLE SWITCH (MODEL K6)FIG. 27C HANDLE SWITCH (MODEL K7)FIG. 28 FRAME FIG. 29 STAND FIG. 30 FOOTREST FIG. 31 FUEL TANK FIG. 32 FUEL COCK FIG. 33 FRAME COVER FIG. 35 FRONT FENDER FIG.36 HANDLEBAR FIG. 37 HANDLE LEVER (MODEL K5)FIG. 37A HANDLE LEVER (MODEL K6/K7)FIG. 38 REAR FENDER FIG. 39 LABEL FIG. 40 SEAT FIG. 41 SEAT TAIL COVER (EN125-2AK5/K6)FIG. 41 SEAT TAIL COVER (EN125-2AK7)FIG. 41B SEAT TAIL COVER (EN125-2AZK7)FIG. 42 FRONT DAMPER (MODEL K5/K6)FIG. 42A FRONT DAMPER (MODEL K7)FIG. 43 STEERING STEM FIG. 44 FRONT WHEEL (EN125-2AK5/K6/ZK7)FIG. 44A FRONT WHEEL (EN125-2AK7)FIG. 45 FRONT CALIPER FIG. 47 REAR SWINGING ARM FIG. 48 CHAIN CASE FIG. 49 REAR WHELL (EN125-2AK5)FIG. 49A REAR WHEEL (EN125-2AK6/ZK7)FIG. 49B REAR WHEEL (EN125-2AK7)

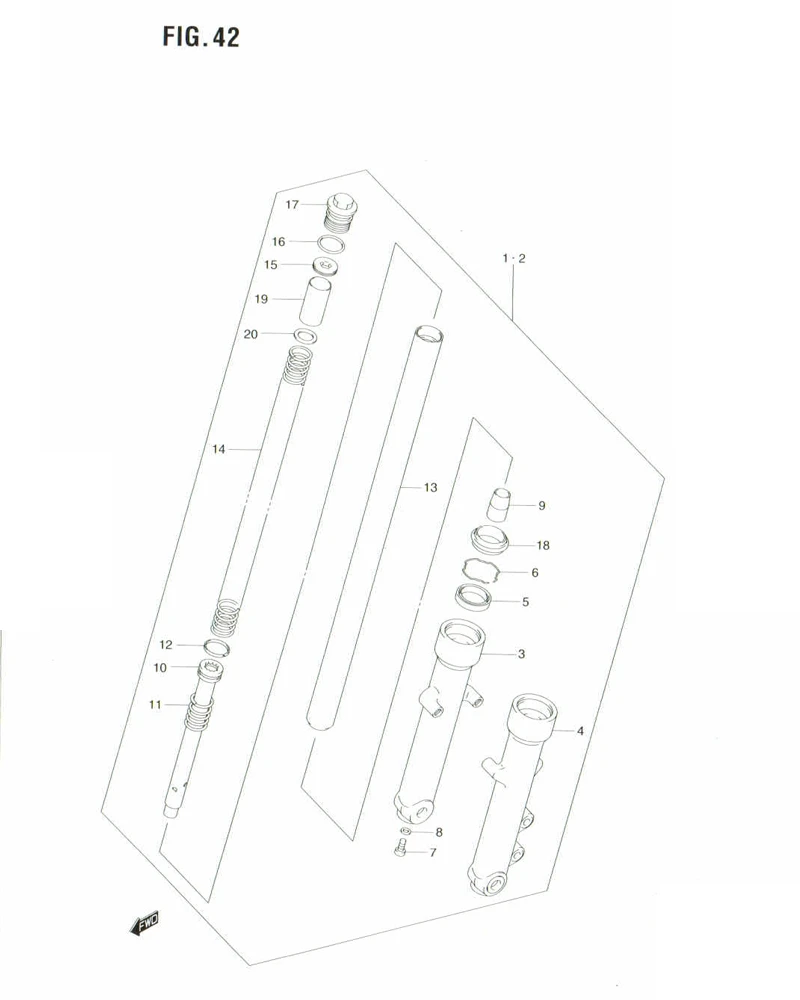

FIG. 42 FRONT DAMPER (MODEL K5/K6)

FIG. 42 FRONT DAMPER (MODEL K5/K6)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	51103-45F40-000	DAMPER ASSY, FRONT FORK RH	1	Rp780.000
2	51104-45F40-000	DAMPER ASSY, FRONT FORK LH	1	Rp780.000
3	51130-45F40-000	.TUBE, OUTER RH	1	Rp348.000
4	51140-45F40-000	.TUBE, OUTER LH	1	Rp348.000
5	51153H45F10H000 SUB: 51153-45F40-000	.OIL SEAL	2	Rp44.500
6	51156-45F40-000	.RING, OIL SEAL STOPPER	2	Rp21.000
7	DISCONTINUE SUB: 51147-45F40-000	.BOLT	2	-
8	51148-45F40-000	.GASKET	2	Rp7.000
9	51195-45F40-000	.PIECE, OIL LOCK	2	Rp20.000
10	51146-45F40-000	.CYLINDER	2	Rp56.500
11	51177-45F40-000	.SPRING, REBOUND	2	Rp9.500
12	51182-45F40-000	.RING	2	Rp11.000
13	51110-45F40-000	.TUBE, INNER	2	Rp330.500
14	51171-45F40-000	.SPRING, MAIN	2	Rp52.500
15	51178-45F40-000	.PLUG	2	Rp31.500
16	51117-45F40-000	.O RING	2	Rp5.500
17	51189-45F40-000	.CAP	2	Rp57.000
18	51173-45F40-000	.SEAL, DUST	2	Rp22.500
19	51176-45F40-000	.SPACER	2	Rp18.500
20	51192-45F40-000	.WASHER	2	Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
