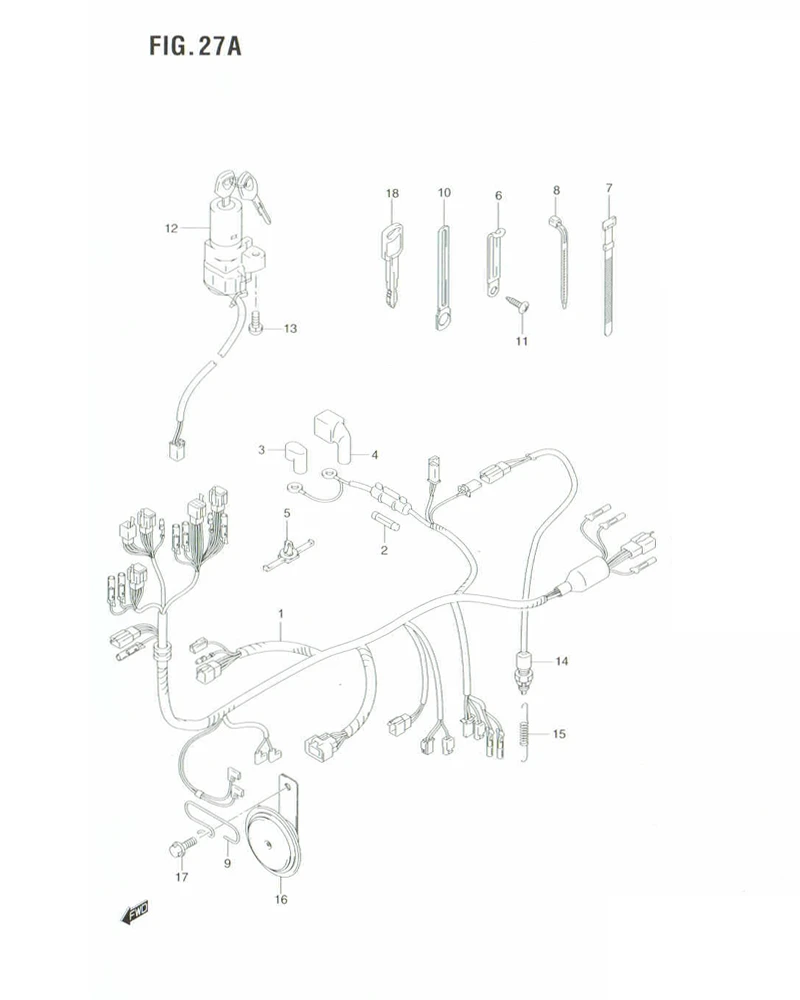

FIG. 27A WIRING HARNESS (MODEL K7)

FIG. 27A WIRING HARNESS (MODEL K7)
No No. Part Description Qty Price Per Pcs Remarks
1 36610-45F20-000 WIRING HARNESS 1 Rp458.500
2 09481-15001-000 .FUSE (15A) 1 Rp13.000
3 31861-10D00-000 .CAP, STARTER RELAY 1 Rp12.000
4 33624-43500-000 .CAP, STARTER RELAY 1 Rp8.500
5 36651-055J0-000 .CLAMP 1 Rp15.500
6 09404-06431-000 CLAMP (L:80) 2 Rp14.000
7 09407-12402-000 CLAMP (L:120) 2 Rp20.500
8-1 36990-25G00-000
SUB: 09407-14403-000		 CLAMP (L:125) 8 Rp13.000
8-2 09407-18402-000 CLAMP (L:165) 4 Rp8.000
8-3 09407-19401-000
SUB: 09407-25401-000		 CLAMP (L:235) 1 Rp31.500
9 DISCONTINUE
SUB: 36619-37300-000		 CLAMP 1 -
10 DISCONTINUE
SUB: 36651-05310-000		 CLAMP 1 -
11 03541-0410A-000
SUB: 03541-04103-000		 SCREW 1 Rp11.000
12 37100-45F00-000 LOCK ASSY, STEERING 1 Rp175.500
13 02112-3620A-000
SUB: 02112-3620B-000		 BOLT 2 Rp4.000
14 37740-12F00-000 SWITCH, ASSY, STOP LAMP 1 Rp26.000
15 09443-06012-000 SPRING 1 Rp17.000
16 38500-055D3-000
SUB: 38500-055D1-000		 HORN ASSY 1 Rp108.500
17 01550-0816A-000
SUB: 01550-0816B-000		 BOLT 1 Rp6.000
18 DISCONTINUE
SUB: 37146-45F00-000		 KEY, BLANK 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
