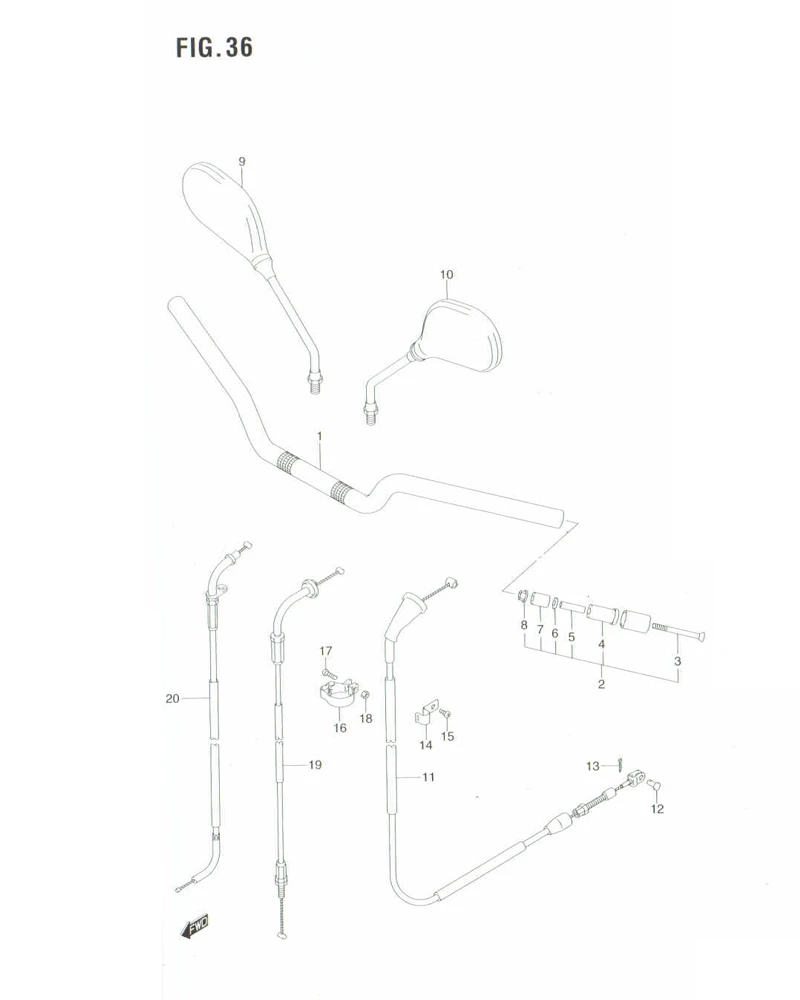

FIG.36 HANDLEBAR

FIG.36 HANDLEBAR
No No. Part Description Qty Price Per Pcs Remarks
1-2 56111-26H00-000
SUB: 56111-45F51-000		 HANDLEBAR 1 Rp125.000
1-1 56111-45F20-000 HANDLEBAR 1 Rp249.500
2 56278-28F00-000 BALANCER SET 2 Rp105.000
3 09127-06018-000 .SCREW 2 Rp4.000
4 56272-26D10-000
SUB: 56272-12FH0-000		 .EXPANDER 2 Rp62.000
5 56276-17D00-000 .SPACER 2 Rp9.000
6 56276-17D00-000 .WASHER 2 Rp9.000
7 DISCONTINUE
SUB: 56272-44500-000		 .EXPANDER 2 -
8 09159-06024-000 .NUT 2 Rp4.000
9 56500-36H00-000
SUB: 56500-45F10-000		 MIRROR ASSY,REAR VIEW RH 1 Rp65.000
10 56600-36H00-000
SUB: 56600-45F10-000		 MIRROR ASSY,REAR VIEW LH 1 Rp65.000
11-1 58200-45F41-000
SUB: 58200-45F00-000		 CABLE ASSY, CLUTCH 1 Rp91.500
11-2 58200-45F41-000
SUB: 58200-45F40-000		 CABLE ASSY, CLUTCH 1 Rp91.500
12 09200-06004-000 PIN 1 Rp12.500
13 04111-2015A-000 COTTER PIN 1 Rp4.500
14 DISCONTINUE
SUB: 58626-37400-000		 CLAMP, NO.1 1 -
15 02112-1610B-000 SCREW 1 -
16 DISCONTINUE
SUB: 36651-45F00-000		 CLAMP, NO.2 1 -
17 02112-0516A-000
SUB: 02112-05163-000		 SCREW 1 Rp5.500
18 DISCONTINUE
SUB: 08310-00053-000		 NUT 1 -
19-1 58300-45F10-000 CABLE ASSY, THROTTLE 1 Rp70.500
19-2 5830045F40 CABLE ASSY, THROTTLE 1 -
20 58410-45F01-000
SUB: 58410-45F00-000		 CABLE, STARATER 1 Rp78.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
