Thunder 125 EN125-2AK6

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 27 WIRING HARNESS (MODEL K5/K6)FIG. 27A WIRING HARNESS (MODEL K7)FIG. 27B HANDLE SWITCH (MODEL K6)FIG. 27C HANDLE SWITCH (MODEL K7)FIG. 28 FRAME FIG. 29 STAND FIG. 30 FOOTREST FIG. 31 FUEL TANK FIG. 32 FUEL COCK FIG. 33 FRAME COVER FIG. 35 FRONT FENDER FIG.36 HANDLEBAR FIG. 37 HANDLE LEVER (MODEL K5)FIG. 37A HANDLE LEVER (MODEL K6/K7)FIG. 38 REAR FENDER FIG. 39 LABEL FIG. 40 SEAT FIG. 41 SEAT TAIL COVER (EN125-2AK5/K6)FIG. 41 SEAT TAIL COVER (EN125-2AK7)FIG. 41B SEAT TAIL COVER (EN125-2AZK7)FIG. 42 FRONT DAMPER (MODEL K5/K6)FIG. 42A FRONT DAMPER (MODEL K7)FIG. 43 STEERING STEM FIG. 44 FRONT WHEEL (EN125-2AK5/K6/ZK7)FIG. 44A FRONT WHEEL (EN125-2AK7)FIG. 45 FRONT CALIPER FIG. 47 REAR SWINGING ARM FIG. 48 CHAIN CASE FIG. 49 REAR WHELL (EN125-2AK5)FIG. 49A REAR WHEEL (EN125-2AK6/ZK7)FIG. 49B REAR WHEEL (EN125-2AK7)

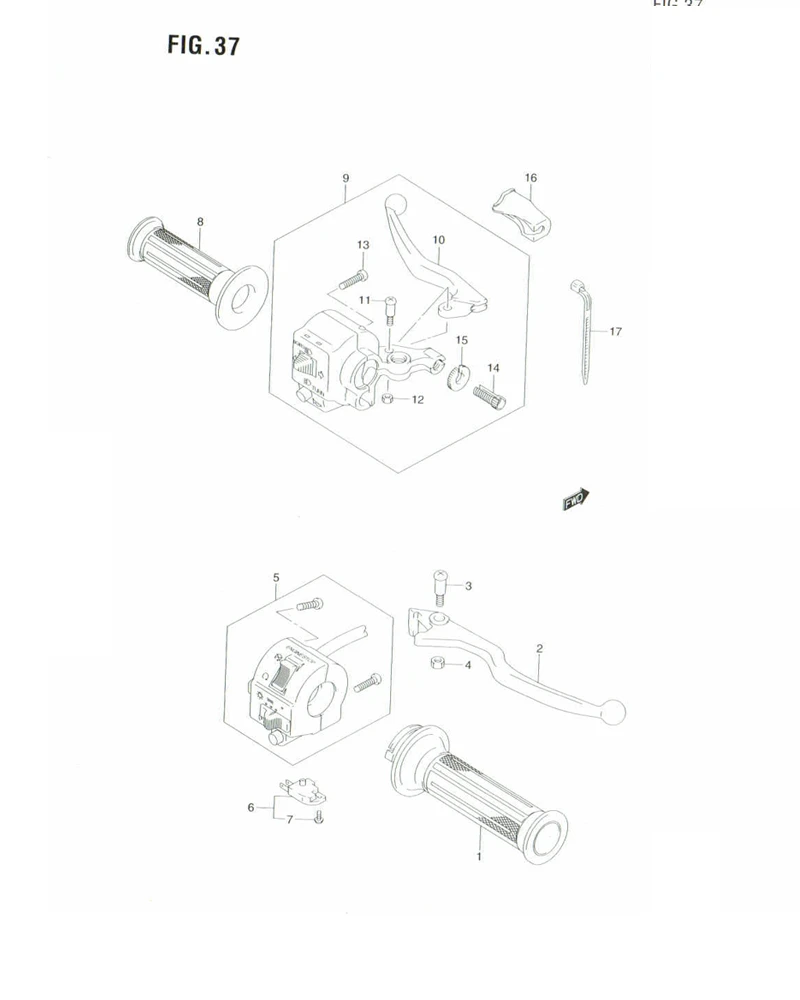

FIG. 37 HANDLE LEVER (MODEL K5)

FIG. 37 HANDLE LEVER (MODEL K5)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 57110-45F00-000	GRIP, THROTTLE	1	-
2	57421-13001-000	LEVER, BRAKE (BLACK)	1	Rp137.000
3	09139-06114-000 SUB: 09111-06075-000	SCREW	1	Rp15.000
4	DISCONTINUE SUB: 08319-21063-000	NUT	1	-
5	37200-45F10-000	SWITCH ASSY, HANDLE RH	1	Rp146.000
6	57460-17C00-000 SUB: 57460-17C01-000	SWITCH ASSY, STOP	1	Rp72.000
7	DISCONTINUE SUB: 57465-17C00-000	.SCREW	1	-
8	DISCONTINUE SUB: 57211-45F00-000	GRIP, LH	1	-
9	57500-45F10-000	LEVER ASSY, CLUTCH	1	Rp181.500
10	57621-45F10-000	.LEVER, CLUCTH	1	Rp55.500
11	DISCONTINUE SUB: 57431-45F10-000	.BOLT	1	-
12	08319-2105B-000	.NUT	1	-
13	DISCONTINUE SUB: 02112-0520B-000	.SCREW	1	-
14	DISCONTINUE SUB: 57441-45F10-000	.ADJUSTER	1	-
15	57442-45F10-000	.NUT	1	Rp22.500
16	57661H31000H000 SUB: 57661-31000-000	COVER, CLUTCH LEVER	1	Rp6.500
17	090407-12402000	CLAMP (L:120)	2	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
