Thunder 125 EN125-2AK6

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 27 WIRING HARNESS (MODEL K5/K6)FIG. 27A WIRING HARNESS (MODEL K7)FIG. 27B HANDLE SWITCH (MODEL K6)FIG. 27C HANDLE SWITCH (MODEL K7)FIG. 28 FRAME FIG. 29 STAND FIG. 30 FOOTREST FIG. 31 FUEL TANK FIG. 32 FUEL COCK FIG. 33 FRAME COVER FIG. 35 FRONT FENDER FIG.36 HANDLEBAR FIG. 37 HANDLE LEVER (MODEL K5)FIG. 37A HANDLE LEVER (MODEL K6/K7)FIG. 38 REAR FENDER FIG. 39 LABEL FIG. 40 SEAT FIG. 41 SEAT TAIL COVER (EN125-2AK5/K6)FIG. 41 SEAT TAIL COVER (EN125-2AK7)FIG. 41B SEAT TAIL COVER (EN125-2AZK7)FIG. 42 FRONT DAMPER (MODEL K5/K6)FIG. 42A FRONT DAMPER (MODEL K7)FIG. 43 STEERING STEM FIG. 44 FRONT WHEEL (EN125-2AK5/K6/ZK7)FIG. 44A FRONT WHEEL (EN125-2AK7)FIG. 45 FRONT CALIPER FIG. 47 REAR SWINGING ARM FIG. 48 CHAIN CASE FIG. 49 REAR WHELL (EN125-2AK5)FIG. 49A REAR WHEEL (EN125-2AK6/ZK7)FIG. 49B REAR WHEEL (EN125-2AK7)

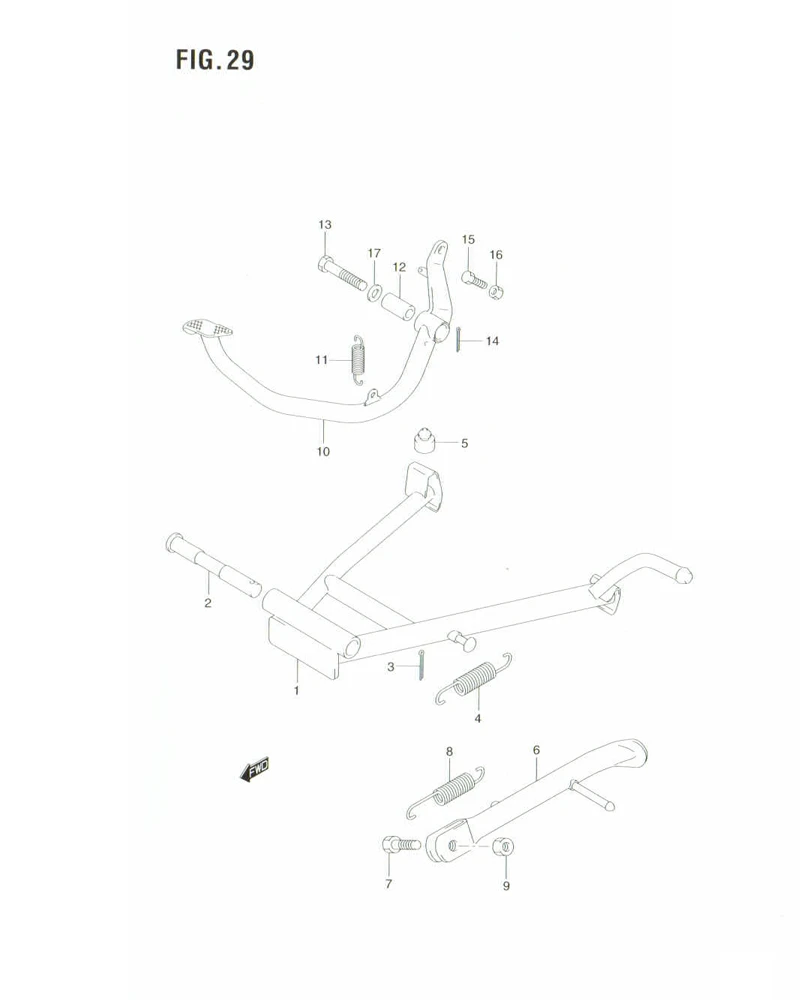

FIG. 29 STAND

FIG. 29 STAND

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	42100-45F00-000	STAND, CENTER	1	Rp200.000
2	42211-36504-000	SHAFT	1	Rp93.500
3	04111-2525A-000 SUB: 04111-25248-000	COTTER PIN	1	Rp3.500
4	09443-18006-XC0 SUB: 09443-18002-000	SPRING	1	Rp40.000
5	42278-45F00-000	CUSHION	1	Rp10.500
6	42310-45F00-000	STAND, PROP	1	Rp80.000
7	09100-10501-000	BOLT	1	Rp8.000
8	09443-17007-000	SPRING	1	Rp5.500
9	09140-10048-000	NUT	1	Rp14.000
10	43110-45F02-000 SUB: 43110-45F00-000	PEDAL, BRAKE	1	Rp171.000
11	09443-14015-000	SPRING	1	Rp23.000
12	43231-05302-000	SPACER	1	Rp13.500
13	43213-45F00-000	BOLT	1	Rp13.000
14	04111-2020A-000	COTTER PIN	1	Rp5.000
15	DISCONTINUE SUB: 43159-45F00-000	BOLT	1	-
16	08310-0006B-000	NUT	1	Rp4.500
17	08322-0110B-000	WASHER	1	Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
