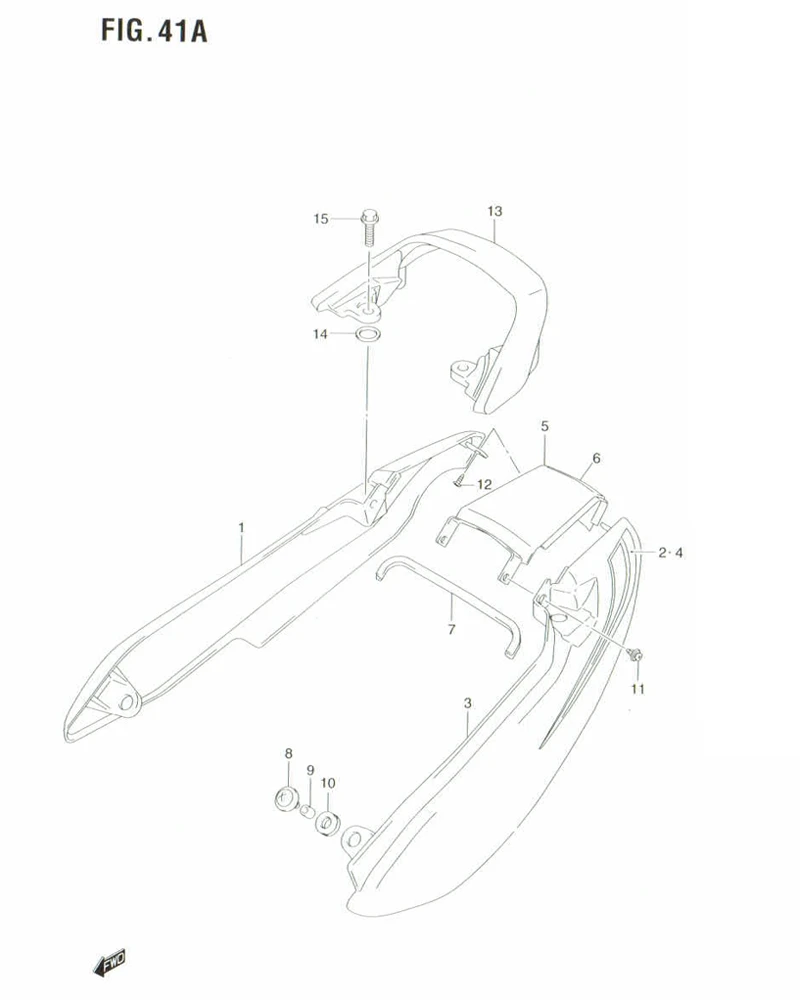

FIG. 41 SEAT TAIL COVER (EN125-2AK7)

FIG. 41 SEAT TAIL COVER (EN125-2AK7)
No No. Part Description Qty Price Per Pcs Remarks
1 45511-45F00-YHP COVER, SEAT TAIL RH (BLACK) 1 Rp234.500
2-1 68310-45F20-YFZ TAPE SET, TAIL COVER, R (RED) 1 Rp62.500
2-2 68310-45F20-YGB TAPE SET, TAIL COVER, R (BLUE) 1 Rp62.500
2-3 68310-45F20-YHP TAPE SET, TAIL COVER, R 1 Rp62.000
2-4 DISCONTINUE
SUB: 68310-45F20-YLN		 TAPE SET, TAIL COVER, R 1 -
3 45512-45F00-YHP COVER, SEAT TAIL LH (BLACK) 1 Rp234.500
4-1 68320-45F20-YFZ TAPE SET, TAIL COVER, L (RED) 1 Rp62.500
4-2 68320-45F20-YGB TAPE SET, TAIL COVER, L (BLUE) 1 Rp62.500
4-3 68320-45F20-YHP TAPE SET, TAIL COVER, L 1 Rp62.000
4-4 68320-45F20-YLN TAPE SET, TAIL COVER, L 1 Rp61.500
5 45513-45F00-YHP COVER, SEAT TAIL CENTER 1 Rp105.000
6 DISCONTINUE
SUB: 68211-28D00L000		 EMBLEM, SEAT TAIL OVER 1 -
7 45515-45F00-000 CUSHION, SEAT TAIL COVER 1 Rp14.500
8 DISCONTINUE
SUB: 45521-45F00-000		 SCREW, SEAT TAIL COVER FRONT 2 -
9 09180-06263-000 SPACER, SEAT TAIL COVER FRONT 2 Rp12.500
10 09320-08518-000
SUB: 09320-08047-000		 CUSHION, SEAT TAIL COVER FRONT 2 Rp29.500
11 0909-06322 CLIP, SEAT TAIL COVER REAR 2 -
12 03541-0412B-000 SCREW, SEAT TAIL COVER REAR 2 Rp4.000
13 46211-28D00-YGC HANDLE, PILLION RIDER 1 -
14 DISCONTINUE
SUB: 46212-28D00-000		 CUSHION, PILLION HANDLE 2 -
15 01550-0830B-000 BOLT 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
