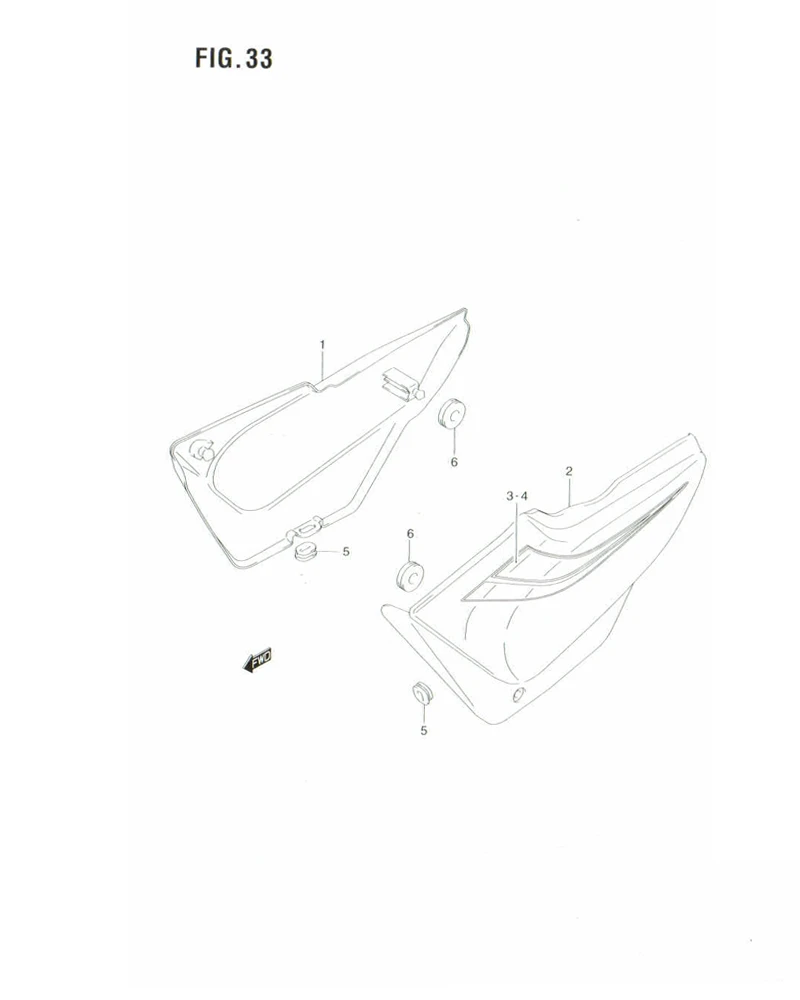

FIG. 33 FRAME COVER

FIG. 33 FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1-2 47111-45F00-YGB COVER, FRAME RH (BLUE) 1 Rp176.500
1-3 47111-45F00-YHP COVER, FRAME RH (BLACK) 1 Rp202.500
1-4 47111-45F00-YLN COVER, FRAME RH (SILVER) 1 Rp155.500
1-5 47111-45F00-YNZ COVER, FRAME RH (WHITE) 1 -
1-1 47111-45F00-YFZ COVER, FRAME RH (RED) 1 Rp185.000
2-1 47211-45F00-YFZ COVER, FRAME RH (RED) 1 Rp185.000
2-2 47211-45F00-YGB COVER, FRAME RH (BLUE) 1 Rp176.500
2-3 47211-45F00-YHP COVER, FRAME RH (BLACK) 1 Rp202.500
2-4 47211-45F00-YLN COVER, FRAME RH (SILVER) 1 Rp155.500
2-5 47211-45F00-YNZ COVER, FRAME RH (WHITE) 1 -
3-5 68410-45F70-YFZ TAPE SET, RH (RED) 1 Rp62.500
3-8 DISCONTINUE
SUB: 68410-45F70-YLN		 TAPE SET, RH (SILVER) 1 -
3-7 68410-45F70-YHP TAPE SET, RH (BLACK) 1 Rp62.500
3-6 68410-45F70-YGB TAPE SET, RH (BLUE) 1 Rp62.500
3-4 DISCONTINUE
SUB: 68410-45F10-YLN		 TAPE SET, RH (SILVER) 1 -
3-3 68410-45F10-YHP TAPE SET, RH (BLACK) 1 Rp38.000
3-2 68410-45F10-YGB TAPE SET, RH (BLUE) 1 Rp38.500
3-1 DISCONTINUE
SUB: 68410-45F10-YFZ		 TAPE SET, RH (RED) 1 -
4-1 DISCONTINUE
SUB: 68420-45F10-YFZ		 TAPE SET, LH (RED) 1 -
4-2 68420-45F10-YGB TAPE SET, LH (BLUE) 1 Rp38.500
4-3 DISCONTINUE
SUB: 68420-45F10-YHP		 TAPE SET, LH (BLACK) 1 -
4-4 DISCONTINUE
SUB: 68420-45F10-YLN		 TAPE SET, LH (SILVER) 1 -
4-5 68420-45F70-YFZ TAPE SET, LH (RED) 1 Rp62.500
4-6 68420-45F70-YGB TAPE SET, LH (BLUE) 1 Rp62.500
4-7 68420-45F70-YHP TAPE SET, LH (BLACK) 1 Rp62.500
4-8 DISCONTINUE
SUB: 68420-45F70-YLN		 TAPE SET, LH (SILVER) 1 -
5 09320-03004-000 CUSHION, LOWER RH 2 Rp7.000
6 48169-12JA0-000
SUB: 09320-08018-000		 CUSHION 4 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
