Thunder 125 EN125-2AK6

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 27 WIRING HARNESS (MODEL K5/K6)FIG. 27A WIRING HARNESS (MODEL K7)FIG. 27B HANDLE SWITCH (MODEL K6)FIG. 27C HANDLE SWITCH (MODEL K7)FIG. 28 FRAME FIG. 29 STAND FIG. 30 FOOTREST FIG. 31 FUEL TANK FIG. 32 FUEL COCK FIG. 33 FRAME COVER FIG. 35 FRONT FENDER FIG.36 HANDLEBAR FIG. 37 HANDLE LEVER (MODEL K5)FIG. 37A HANDLE LEVER (MODEL K6/K7)FIG. 38 REAR FENDER FIG. 39 LABEL FIG. 40 SEAT FIG. 41 SEAT TAIL COVER (EN125-2AK5/K6)FIG. 41 SEAT TAIL COVER (EN125-2AK7)FIG. 41B SEAT TAIL COVER (EN125-2AZK7)FIG. 42 FRONT DAMPER (MODEL K5/K6)FIG. 42A FRONT DAMPER (MODEL K7)FIG. 43 STEERING STEM FIG. 44 FRONT WHEEL (EN125-2AK5/K6/ZK7)FIG. 44A FRONT WHEEL (EN125-2AK7)FIG. 45 FRONT CALIPER FIG. 47 REAR SWINGING ARM FIG. 48 CHAIN CASE FIG. 49 REAR WHELL (EN125-2AK5)FIG. 49A REAR WHEEL (EN125-2AK6/ZK7)FIG. 49B REAR WHEEL (EN125-2AK7)

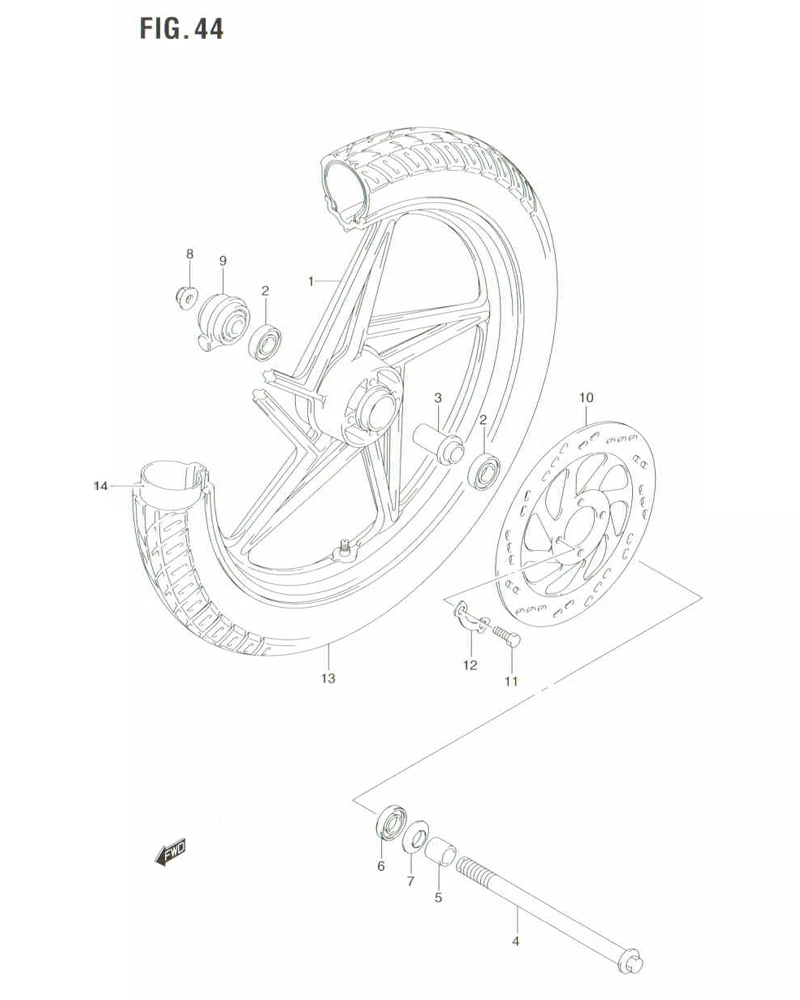

FIG. 44 FRONT WHEEL (EN125-2AK5/K6/ZK7)

FIG. 44 FRONT WHEEL (EN125-2AK5/K6/ZK7)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 54111-45F30-000	WHEEL, FRONT (18X1.60)	1	-
2	08133-6301B-000 SUB: 08133-63017-000	BEARING	2	Rp46.500
3	54731H2A000H000 SUB: 54731-45F00-000	SPACER	1	Rp23.000
4-1	54711-05310-000 SUB: 54711-05300-000	AXLE, FRONT	1	Rp61.000
4-2	54711-05310-000	AXLE, FRONT	1	Rp61.000
5	54741-45F00-000	SPACER, LH	1	Rp13.500
6	54742-45F00-000	SEAL, FRONT HUB	1	Rp11.000
7	54892-45F00-000	COVER, FRONT HUB DUST SEAL	1	Rp6.500
8	08319-3112A-000	NUT	1	Rp7.000
9	54600-36450-000 SUB: 54600-36410-000	BOX ASSY, SPEEDOMETER GEAR	1	Rp160.500
10	DISCONTINUE SUB: 59211-05500-000	DISC, FRONT BRAKE	1	-
11	59421-45F00-000 SUB: 09100-08140-000	BOLT (8X28)	4	Rp8.000
12	09169-08019-000	WASHER	2	Rp13.000
13	DISCONTINUE SUB: 55110-45F20-000	TIRE, FRONT (80/90-18)	1	-
14	55200-45F20-000	TUBE ASSY, WHEEL INNER	1	Rp65.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
