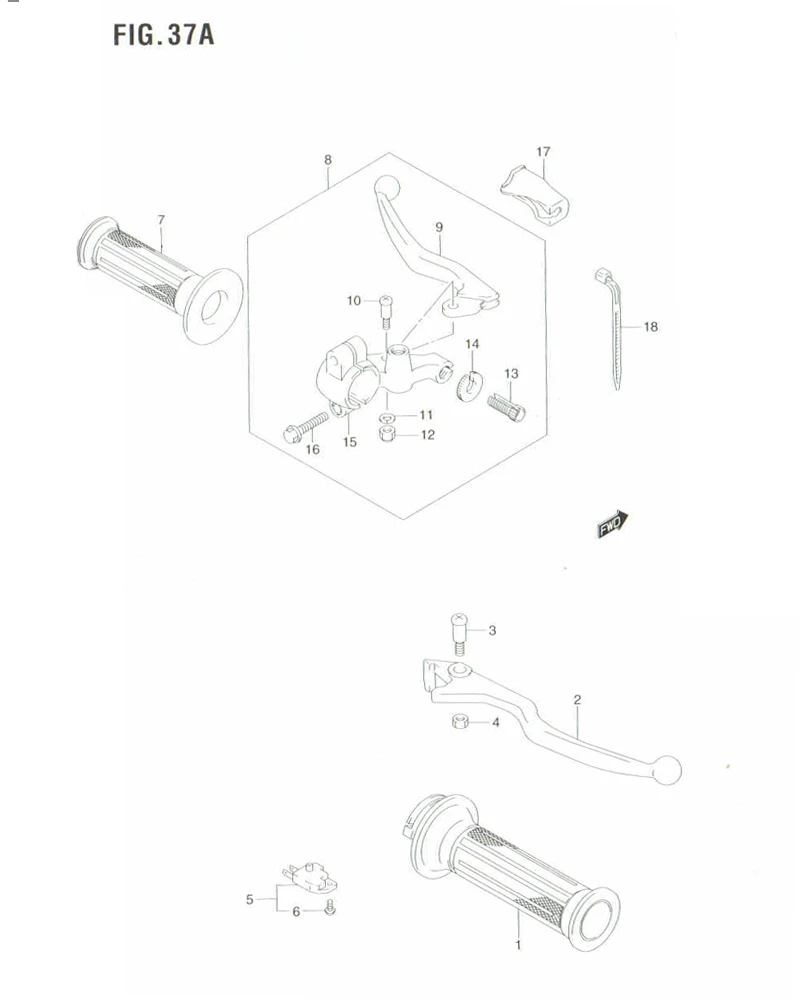

FIG. 37A HANDLE LEVER (MODEL K6/K7)

FIG. 37A HANDLE LEVER (MODEL K6/K7)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	57110-28G10-000	GRIP, THROTTLE	1	Rp44.500
2	57421-13001-000	LEVER, BRAKE (BLACK)	1	Rp137.000
3	09139-06114-000 SUB: 09111-06075-000	SCREW	1	Rp15.000
4	08319-2106A-000 SUB: 08319-21065-000	NUT	1	Rp5.000
5	57460-17C00-000 SUB: 57460-17C01-000	SWITCH ASSY, STOP	1	Rp72.000
6	DISCONTINUE SUB: 57465-17C00-000	.SCREW	1	-
7	57211-22D01-000	GRIP, LH	1	Rp38.500
8	57500-45FA1-000 SUB: 57500-45FA0-000	LEVER ASSY, CLUTCH	1	Rp154.500
9	57621-45FA0-000	.LEVER, CLUTCH	1	Rp75.500
10	57431-45F00-000	.BOLT	1	Rp9.000
11	08321-0106B-000	.LOCK WASHER	1	-
12	08310-0006A-000	.NUT	1	Rp2.500
13	57441-45F00-000	.ADJUSTER	1	Rp16.500
14	57442-45F00-000	.NUT	1	Rp22.500
15	57512-45F00-000	.BRACKET, HOLDER	1	Rp53.500
16	01547-0620B-000	.BOLT	2	Rp6.500
17	57661H31000H000 SUB: 57661-31000-000	COVER, CLUTCH LEVER	1	Rp6.500
18	09407-12402-000	CLAMP (L:120)	2	Rp20.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
