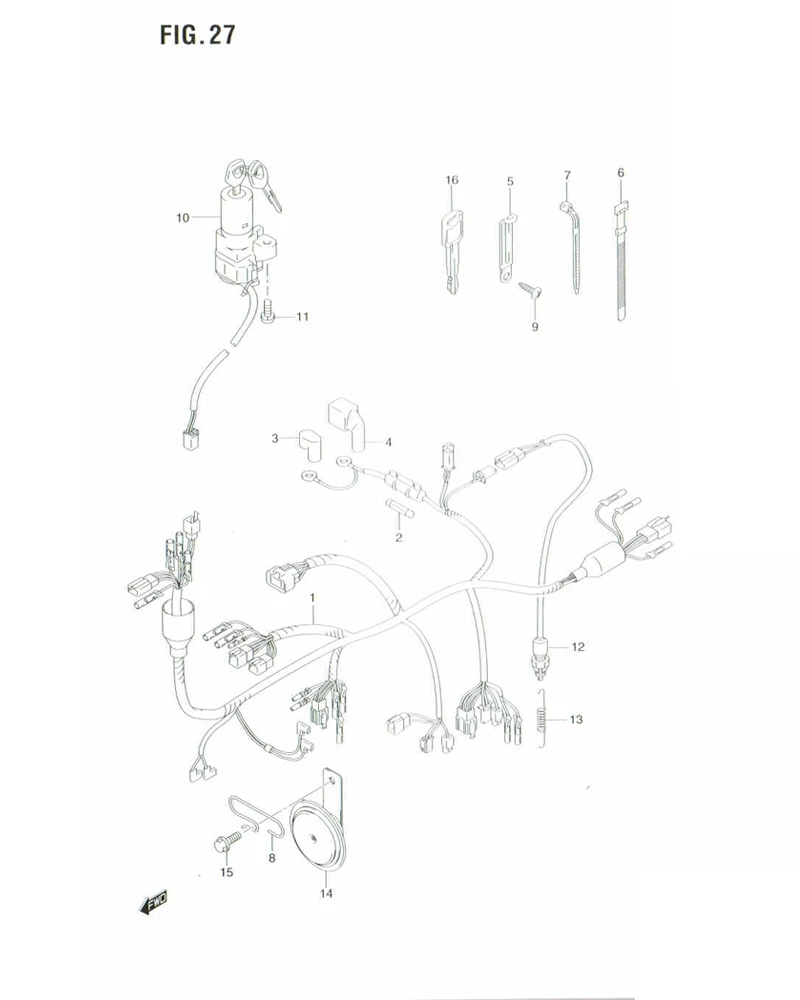

FIG. 27 WIRING HARNESS (MODEL K5/K6)

FIG. 27 WIRING HARNESS (MODEL K5/K6)
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 36610-055R0-000		 WIRING HARNESS 1 -
1-1 DISCONTINUE
SUB: 36610-05540-000		 WIRING HARNESS 1 -
2 09481-15001-000 .FUSE (15A) 1 Rp13.000
3 31861-10D00-000 .CAP, STARTER RELAY 1 Rp12.000
4 33624-43500-000 .CAP, STARTER RELAY 1 Rp8.500
5 09404-06431-000 CLAMP (L:80) 3 Rp14.000
6 09407-12402-000 CLAMP (L:120 2 Rp20.500
7-3 09407-19401-000
SUB: 09407-25401-000		 CLAMP (L:235) 1 Rp31.500
7-2 09407-18402-000 CLAMP (L:165) 4 Rp8.000
7-1 36990-25G00-000
SUB: 09407-14403-000		 CLAMP (L:125) 8 Rp13.000
8 DISCONTINUE
SUB: 36619-37300-000		 CLAMP 1 -
9 03541-0410A-000
SUB: 03541-04103-000		 SCREW 1 Rp11.000
10 37100-01D81-000 LOCK ASSY, STEERING 1 Rp228.500
11 02112-3620A-000
SUB: 02112-36203-000		 BOLT 2 Rp4.000
12 37740-12F00-000 SWITCH, ASSY, STOP LAMP 1 Rp26.000
13 09443-06012-000 SPRING 1 Rp17.000
14 38500-055D3-000
SUB: 38500-055D1-000		 HORN ASSY 1 Rp108.500
15 01550-0816A-000
SUB: 01550-08163-000		 BOLT 1 Rp6.000
16 DISCONTINUE
SUB: 37146-45F00-000		 KEY, BLANK 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
