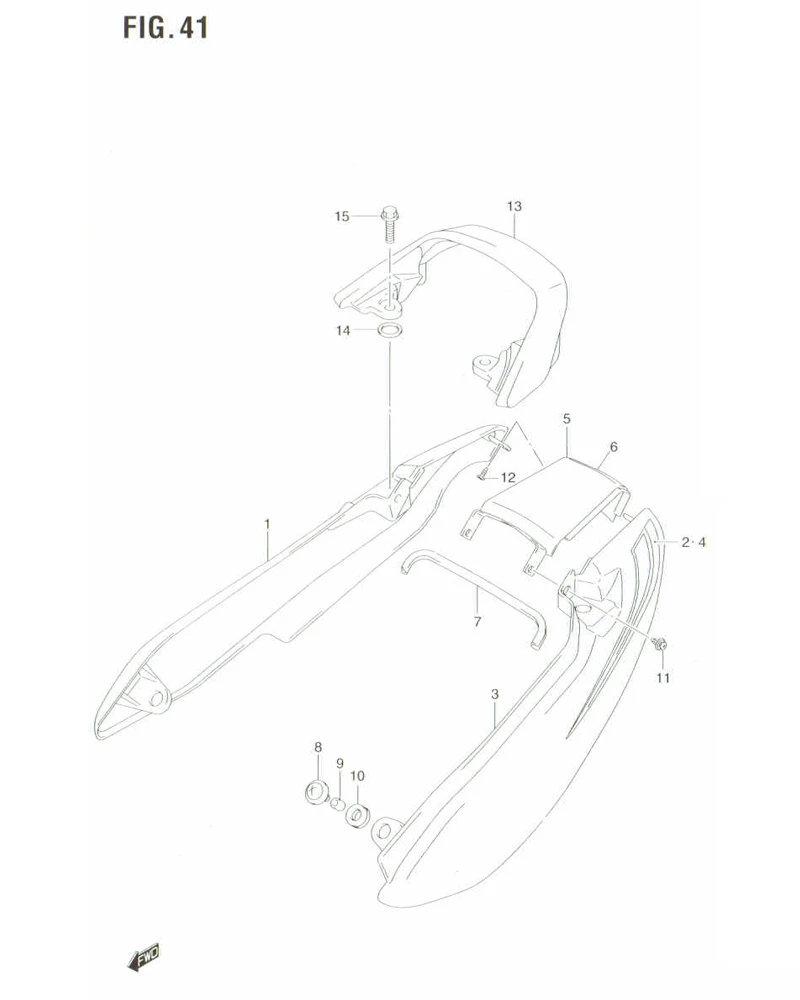

FIG. 41 SEAT TAIL COVER (EN125-2AK5/K6)

No	No. Part	Description	Qty	Price Per Pcs
1-2	45511-45F00-YGB	COVER, SEAT TAIL RH (BLUE)	1	Rp234.500
1-3	45511-45F00-YHP	COVER, SEAT TAIL RH (BLACK)	1	Rp234.500
1-4	45511-45F00-815 SUB: 45511-45F00-YLN	COVER, SEAT TAIL RH (SILVER)	1	Rp147.500
1-1	45511-45F00-YFZ	COVER, SEAT TAIL RH (RED)	1	Rp147.500
2-1	DISCONTINUE SUB: 68310-45F10-YFZ	TAPE SET, TAIL COVER, R (RED)	1	-
2-2	DISCONTINUE SUB: 68310-45F10-YGB	TAPE SET, TAIL COVER, R (BLUE)	1	-
2-3	DISCONTINUE SUB: 68310-45F10-YHP	TAPE SET, TAIL COVER, R	1	-
2-4	DISCONTINUE SUB: 68310-45F10-YLN	TAPE SET, TAIL COVER, R	1	-
3-1	45512-45F00-YFZ	COVER, SEAT TAIL LH (RED)	1	Rp147.500
3-2	45512-45F00-YGB	COVER, SEAT TAIL LH (BLUE)	1	Rp234.500
3-3	45512-45F00-YHP	COVER, SEAT TAIL LH (BLACK)	1	Rp234.500
3-4	45512-45F00-815 SUB: 45512-45F00-YLN	COVER, SEAT TAIL LH (SILVER)	1	Rp147.500
4-4	DISCONTINUE SUB: 68320-45F10-YLN	TAPE SET, TAIL COVER, L	1	-
4-3	DISCONTINUE SUB: 68320-45F10-YHP	TAPE SET, TAIL COVER, L	1	-
4-2	68320-45F10-YGB\	TAPE SET, TAIL COVER, L (BLUE)	1	-
4-1	DISCONTINUE SUB: 68320-45F10-YFZ	TAPE SET, TAIL COVER, L (RED)	1	-
5-1	45513-45F00-YFZ	COVER, SET TAIL CENTER (RED)	1	Rp111.000
5-2	45513-45F00-YGB	COVER, SET TAIL CENTER (BLUE)	1	Rp108.500
5-3	45513-45F00-YHP	COVER, SET TAIL CENTER	1	Rp105.000
5-4	45513-45F00-815 SUB: 45513-45F00-YLN	COVER, SET TAIL CENTER	2	Rp108.500
6	DISCONTINUE SUB: 68211-28D00L000	EMBLEM,SEAT TAIL COVER (RED)	1	-
7	45515-45F00-000	CUSHION, SEAT TAIL COVER	1	Rp14.500
8	DISCONTINUE SUB: 45521-45F00-000	SCREW, SEAT TAIL COVER FRONT	2	-
9	09180-06263-000	SPACER, SEAT TAIL COVER FRONT	2	Rp12.500
10	09320-08518-000 SUB: 09320-08047-000	CUSHION, SEAT TAIL COVER FRONT	2	Rp29.500
11	09409-06322-5PK	CLIP, SEAT TAIL COVER REAR	2	Rp19.000
12	03541-0412A-000 SUB: 03541-04123-000	SCREW, SEAT TAIL COVER REAR	2	Rp3.500
13	46211-28D00-YGC	HANDLE, PILLION RIDER	1	-
14	DISCONTINUE SUB: 46212-28D00-000	CUSHION, PILLION HANDLE	2	-
15	01550-0830A-000 SUB: 01550-08303-000	BOLT	2	Rp4.000
