Thunder 125 EN125-2AK6

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 27 WIRING HARNESS (MODEL K5/K6)FIG. 27A WIRING HARNESS (MODEL K7)FIG. 27B HANDLE SWITCH (MODEL K6)FIG. 27C HANDLE SWITCH (MODEL K7)FIG. 28 FRAME FIG. 29 STAND FIG. 30 FOOTREST FIG. 31 FUEL TANK FIG. 32 FUEL COCK FIG. 33 FRAME COVER FIG. 35 FRONT FENDER FIG.36 HANDLEBAR FIG. 37 HANDLE LEVER (MODEL K5)FIG. 37A HANDLE LEVER (MODEL K6/K7)FIG. 38 REAR FENDER FIG. 39 LABEL FIG. 40 SEAT FIG. 41 SEAT TAIL COVER (EN125-2AK5/K6)FIG. 41 SEAT TAIL COVER (EN125-2AK7)FIG. 41B SEAT TAIL COVER (EN125-2AZK7)FIG. 42 FRONT DAMPER (MODEL K5/K6)FIG. 42A FRONT DAMPER (MODEL K7)FIG. 43 STEERING STEM FIG. 44 FRONT WHEEL (EN125-2AK5/K6/ZK7)FIG. 44A FRONT WHEEL (EN125-2AK7)FIG. 45 FRONT CALIPER FIG. 47 REAR SWINGING ARM FIG. 48 CHAIN CASE FIG. 49 REAR WHELL (EN125-2AK5)FIG. 49A REAR WHEEL (EN125-2AK6/ZK7)FIG. 49B REAR WHEEL (EN125-2AK7)

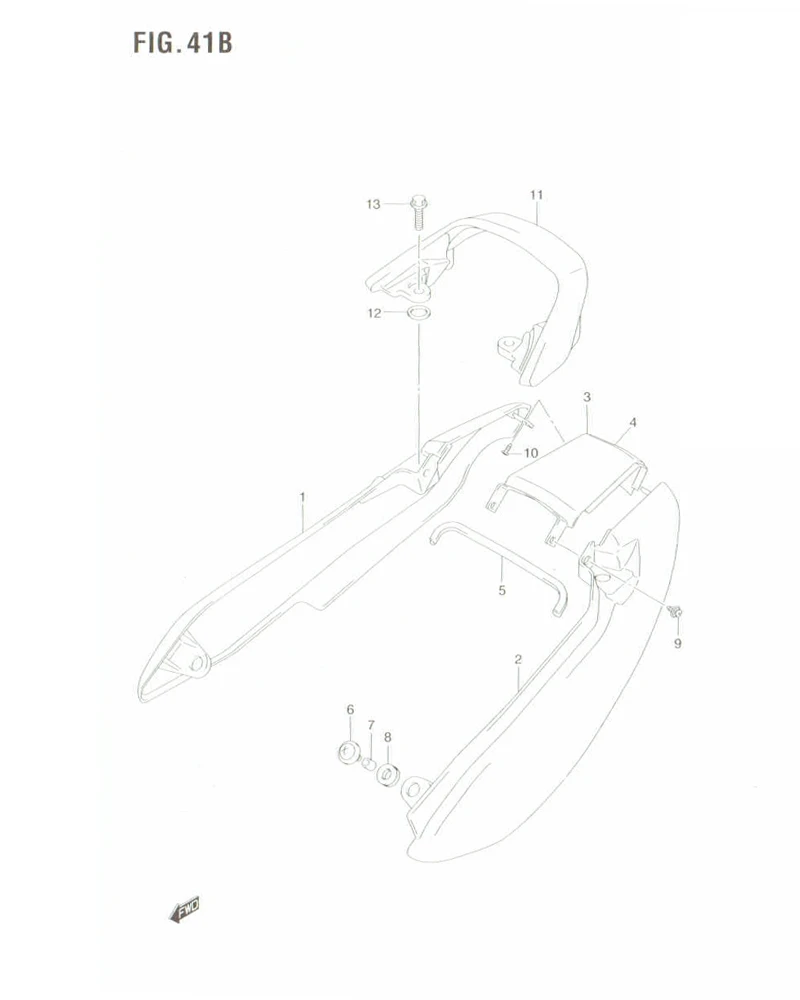

FIG. 41B SEAT TAIL COVER (EN125-2AZK7)

FIG. 41B SEAT TAIL COVER (EN125-2AZK7)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	45511-45F00-YNZ	COVER, SEAT TAIL RH (WHITE)	1	-
2	45512-45F00-YNZ	COVER, SEAT TAIL LH (WHITE)	1	-
3	45513-45F00-YNZ	COVER, SEAT TAIL CENTER	1	-
4	DISCONTINUE SUB: 68211-28D00L000	EMBLEM, SEAT TAIL COVER	1	-
5	45515-45F00-000	CUSHION, SEAT TAIL COVER	1	Rp14.500
6	DISCONTINUE SUB: 45521-45F00-000	SCREW, SEAT TAIL COVER FRONT	2	-
7	09180-06263-000	SPACER, SEAT TAIL COVER FRONT	2	Rp12.500
8	09320-08518-000 SUB: 09320-08047-000	CUSHION, SEAT TAIL COVER FRONT	2	Rp29.500
9	09409-06322-5PK SUB: 09409-06322-000	CLIP, SEAT TAIL COVER REAR	2	Rp19.000
10	03541-0412B-000	SCREW, SEAT TAIL COVER REAR	2	Rp4.000
11	46211-28D00-YGC	HANDLE, PILLION RIDER	1	-
12	DISCONTINUE SUB: 46212-28D00-000	CUSHION, PILLION HANDLE	2	-
13	01550-0830B-000	BOLT	2	Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
