SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 PILLION FOOTRESTFIG.31 PILLION HANDLEFIG.32 FUEL TANKFIG.33 FUEL COCKFIG.34 FRAME COVERFIG.35 FRAME SIDE COVERFIG.36 FRONT LEG SHIELDFIG.37 REAR LEG SHIELDFIG.38 LEG SHIELD COVERFIG.39 LUGGAGE BOXFIG.40 FRONT FENDERFIG.41 HANDLE BARFIG.42 HANDLE COVERFIG.43 HANDLE LEVERFIG.44 REAR FENDERFIG.45 LABELFIG.46 SEATFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 REAR SHOCK ABSORBERFIG.53 REAR WHELL

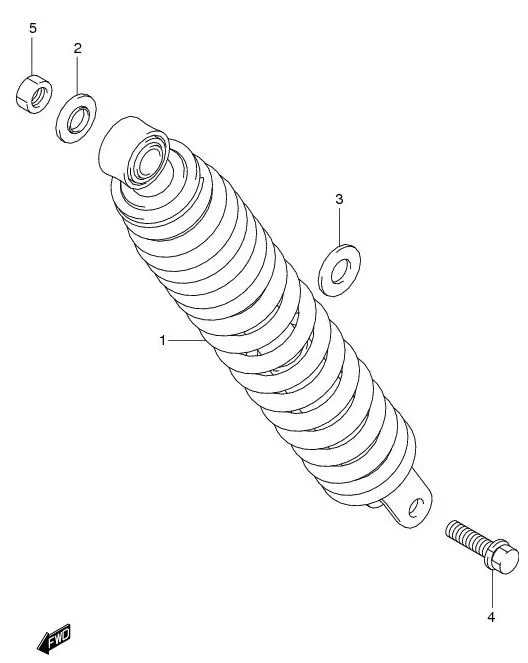

FIG.52 REAR SHOCK ABSORBER

FIG.52 REAR SHOCK ABSORBER
No No. Part Description Qty Price Per Pcs Remarks
1-1 62100-41H10-YHG
SUB: 62100B41H10NYHG		 ABSORBER ASSY, REAR SHOCK (MET OORT GRAY) 1 Rp331.500
1-2 62100-41H30-019
SUB: 62100B41H30N019		 ABSORBER ASSY, REAR SHOCK (SOLID BLACK) 1 Rp230.000
1-3 62100-41H30-13L
SUB: 62100B41H30N13L		 ABSORBER ASSY, REAR SHOCK (BRIGHT SILVER) 1 Rp250.000
1-4 62100-41H30-YWL
SUB: 62100B41H30NYWL		 ABSORBER ASSY, REAR SHOCK (FIGHTING RED) 1 Rp250.000
2 09160-10152-000
SUB: 09160B10152N000		 WASHER, UPPER OUTER 1 Rp4.000
3 09160-12085-000
SUB: 09160B12085N000		 WASHER, UPPER INNER 1 Rp6.500
4 01570-1035B-000 BOLT, RR SHOCK ABS LOWER 1 Rp14.000
5 08310-0010A-000
SUB: 08310-0010B-000		 NUT, RR SHOCK ABS UPPER 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
