  5. FIG.37 REAR LEG SHIELD

SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 PILLION FOOTRESTFIG.31 PILLION HANDLEFIG.32 FUEL TANKFIG.33 FUEL COCKFIG.34 FRAME COVERFIG.35 FRAME SIDE COVERFIG.36 FRONT LEG SHIELDFIG.37 REAR LEG SHIELDFIG.38 LEG SHIELD COVERFIG.39 LUGGAGE BOXFIG.40 FRONT FENDERFIG.41 HANDLE BARFIG.42 HANDLE COVERFIG.43 HANDLE LEVERFIG.44 REAR FENDERFIG.45 LABELFIG.46 SEATFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 REAR SHOCK ABSORBERFIG.53 REAR WHELL

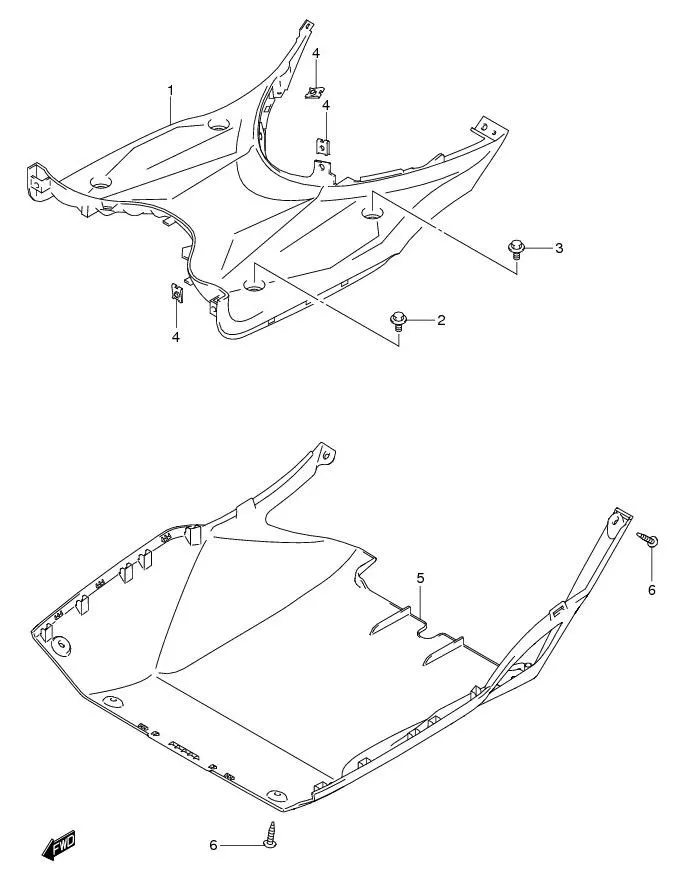

FIG.37 REAR LEG SHIELD

FIG.37 REAR LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 48121-41H10-000
SUB: 48121B41H10N000		 SHIELD, LEG REAR (BLACK) 1 Rp49.500
2 09111-06072-000
SUB: 09111B06072N000		 BOLT, FRONT 2 Rp3.500
3 09111-06102-000
SUB: 09111B06102N000		 BOLT, FRONT 2 Rp3.500
4 09148-05045-000
SUB: 09148B05045N000		 NUT 6 Rp4.000
5 48138-41H10-000
SUB: 48138B41H10N000		 SHIELD, LEG LOWER REAR (BLACK) 1 Rp93.000
6 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 6 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
