SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 PILLION FOOTRESTFIG.31 PILLION HANDLEFIG.32 FUEL TANKFIG.33 FUEL COCKFIG.34 FRAME COVERFIG.35 FRAME SIDE COVERFIG.36 FRONT LEG SHIELDFIG.37 REAR LEG SHIELDFIG.38 LEG SHIELD COVERFIG.39 LUGGAGE BOXFIG.40 FRONT FENDERFIG.41 HANDLE BARFIG.42 HANDLE COVERFIG.43 HANDLE LEVERFIG.44 REAR FENDERFIG.45 LABELFIG.46 SEATFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 REAR SHOCK ABSORBERFIG.53 REAR WHELL

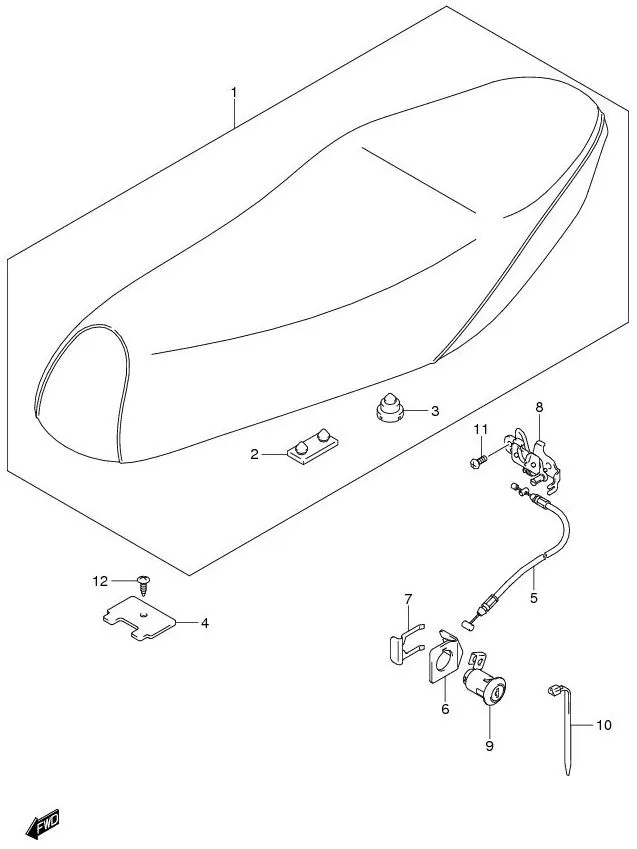

FIG.46 SEAT

FIG.46 SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 45100-41H50-W7T
SUB: 45100B41H50NW7T		 SEAT ASSY (BLACK) 1 Rp257.500
2 45148-13H10-000
SUB: 45148B13H10N000		 •CUSHION, SEAT MOUNT REAR 2 Rp7.500
3 45149-41H00-000
SUB: 45149B41H00N000		 •CUSHION, SEAT MOUNT CTR 2 Rp6.500
4 45271-41H00-000
SUB: 45271B41H00N000		 PLATE, SEAT HINGE 1 Rp7.500
5 45280-41H10-000
SUB: 45280B41H10N000		 CABLE, SEAT LOCK 1 Rp20.500
6 45288-41H00-000
SUB: 45288B41H00N000		 GUIDE, SEAT LOCK CABLE 1 Rp7.500
7 45289-11F00-000
SUB: 45289B11F00N000		 PLATE, SEAT LOCK ASSY 1 Rp4.000
8 45700-09G30-000
SUB: 45700B09G10N000		 BRACKET, STRIKER SUPPORT 1 Rp33.500
9 95700-14F60-000
SUB: 95700B14F60N000		 LOCK ASSY, SEAT 1 Rp75.500
10 09407-18402-000
SUB: 09407B18402N000		 CLAMP, SEAT LOCK CABLE 1 Rp8.000
11 01547-0610A-000
SUB: 02112B0610AN000		 SCREW, STRIKER SUPPORT 2 Rp3.000
12 02142-0512A-000
SUB: 02142B0512AN000		 SCREW, SEAT HINGE PLATE 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
