SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 PILLION FOOTRESTFIG.31 PILLION HANDLEFIG.32 FUEL TANKFIG.33 FUEL COCKFIG.34 FRAME COVERFIG.35 FRAME SIDE COVERFIG.36 FRONT LEG SHIELDFIG.37 REAR LEG SHIELDFIG.38 LEG SHIELD COVERFIG.39 LUGGAGE BOXFIG.40 FRONT FENDERFIG.41 HANDLE BARFIG.42 HANDLE COVERFIG.43 HANDLE LEVERFIG.44 REAR FENDERFIG.45 LABELFIG.46 SEATFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 REAR SHOCK ABSORBERFIG.53 REAR WHELL

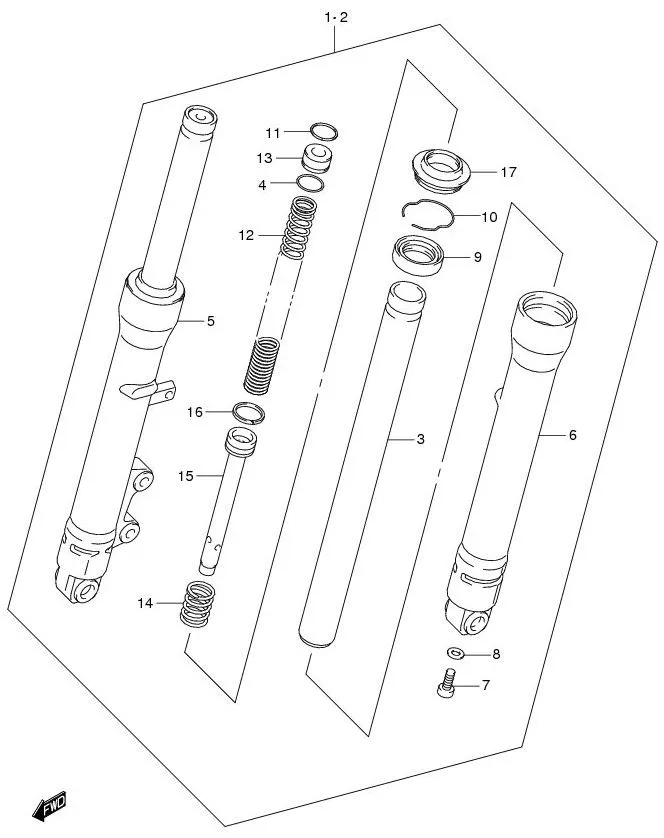

FIG.47 FRONT DAMPER

FIG.47 FRONT DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 51103B41H20NYHG		 DAMPER ASSY, FRONT FORK RH (OORT GRAY) 1 -
1-3 51103-41H40-13L
SUB: 51103B41H40N13L		 DAMPER ASSY, FRONT FORK RH (BRIGHT SILVER) 1 Rp566.000
1-1 51103-41H20-13L
SUB: 51103B41H20N13L		 DAMPER ASSY, FRONT FORK RH (BRIGHT SILVER) 1 Rp532.000
2-1 51104-41H20-13L
SUB: 51104B41H20N13L		 DAMPER ASSY, FRONT FORK LH (BRIGHT SILVER) 1 Rp532.000
2-2 DISCONTINUE
SUB: 51104B41H20NYHG		 DAMPER ASSY, FRONT FORK LH (OORT GRAY) 1 -
2-3 51104-41H40-13L
SUB: 51104B41H40N13L		 DAMPER ASSY, FRONT FORK LH (BRIGHT SILVER) 1 Rp566.000
3 51110-41H00-000
SUB: 51110B41H00N000		 •TUBE, INNER 2 Rp185.500
4 51117-09G00-000
SUB: 51117B09G00N000		 •O RING 2 Rp3.500
5-1 51131-41H20-13L
SUB: 51131B41H20N13L		 •TUBE, OUTER, R (BRIGHT SILVER) 1 Rp214.000
5-2 DISCONTINUE
SUB: 51131B41H20NYHG		 •TUBE, OUTER, R (OORT FRAY) 1 -
5-3 51131-41H40-13L
SUB: 51131B41H40N13L		 •TUBE, OUTER, R (BRIGHT SILVER) 1 Rp232.500
6-2 DISCONTINUE
SUB: 51141B41H20NYHG		 •TUBE, OUTER, L (OORT FRAY) 1 -
6-3 51141-41H40-13L
SUB: 51141B41H40N13L		 •TUBE, OUTER, L (BRIGHT SILVER) 1 Rp232.500
6-1 51141-41H20-13L
SUB: 51141B41H20N13L		 •TUBE, OUTER, L (BRIGHT SILVER) 1 Rp214.000
7 51147-06F10-000
SUB: 51147B06F10N000		 •BOLT 2 Rp6.500
8 51148-31030-000
SUB: 51148B31030N000		 •GASKET 2 Rp4.000
9 51153-09G00-000
SUB: 51153B09G00N000		 •SEAL, OIL 2 Rp16.500
10 51156-09G00-000
SUB: 51156B09G00N000		 •RING, SNAP 2 Rp4.500
11 51169-09G00-000
SUB: 51169B09G00N000		 •RING, STOPPER 2 Rp4.000
12 51171-41H20-000
SUB: 51171B41H00N000		 •SPRING, FRONT 2 Rp24.500
13 51175-09G00-000
SUB: 51175B09G00N000		 •SEAT, SPRING 2 Rp10.500
14 51177-47E01-000
SUB: 51177B47E01N000		 •SPRING, REBOUND 2 Rp5.500
15 51194-41H20-000
SUB: 51194B41H00N000		 •CYLINDER 2 Rp29.500
16 51196-16H00-000
SUB: 51196B16H00N000		 •RING, PISTON 2 Rp7.000
17 51571-09G00-000
SUB: 51571B09G00N000		 •SEAL, DUST 2 Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
