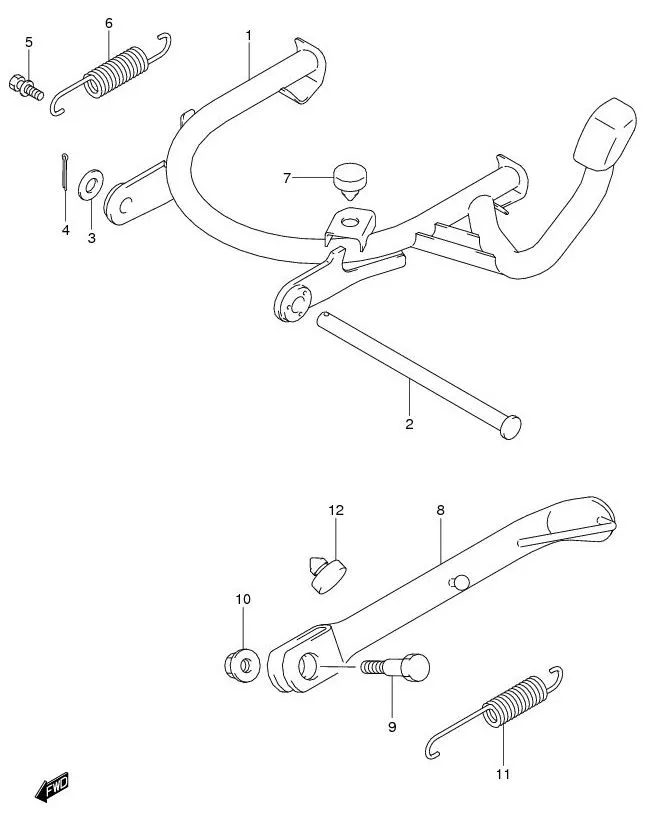

FIG.29 STAND

FIG.29 STAND
No No. Part Description Qty Price Per Pcs Remarks
1 42100-41H10-000
SUB: 42100B41H10N000		 STAND, CENTER 1 Rp140.500
2 42211-41H10-000
SUB: 42211B41H10N000		 SHAFT 1 Rp15.000
3 08322-0110B-000
SUB: 08322B0110BN000		 WASHER 1 Rp4.500
4 04111-3020A-000
SUB: 04111B3020AN000		 COTTER PIN 1 Rp2.500
5 42251-46G10-000
SUB: 42251B46G10N000		 HOOK, SPRING 1 Rp10.000
6 09443-17006-000
SUB: 09443B17006N000		 SPRING 1 Rp16.000
7 09321-10001-000
SUB: 09321-10001L000		 CUSHION 1 Rp6.500
8 42310-41H10-000
SUB: 42310B41H10N000		 STAND, PROP 1 Rp47.000
9 42341-09G01-000
SUB: 42341B09G01N000		 BOLT 1 Rp5.000
10 08319-3110A-000
SUB: 08319B3110AN000		 NUT 1 Rp4.500
11 09443-14022-000
SUB: 09443-14022L000		 SPRING 1 Rp5.000
12 09321-10001-000
SUB: 09321-10002-000		 CUSHION 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
