SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 PILLION FOOTRESTFIG.31 PILLION HANDLEFIG.32 FUEL TANKFIG.33 FUEL COCKFIG.34 FRAME COVERFIG.35 FRAME SIDE COVERFIG.36 FRONT LEG SHIELDFIG.37 REAR LEG SHIELDFIG.38 LEG SHIELD COVERFIG.39 LUGGAGE BOXFIG.40 FRONT FENDERFIG.41 HANDLE BARFIG.42 HANDLE COVERFIG.43 HANDLE LEVERFIG.44 REAR FENDERFIG.45 LABELFIG.46 SEATFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 REAR SHOCK ABSORBERFIG.53 REAR WHELL

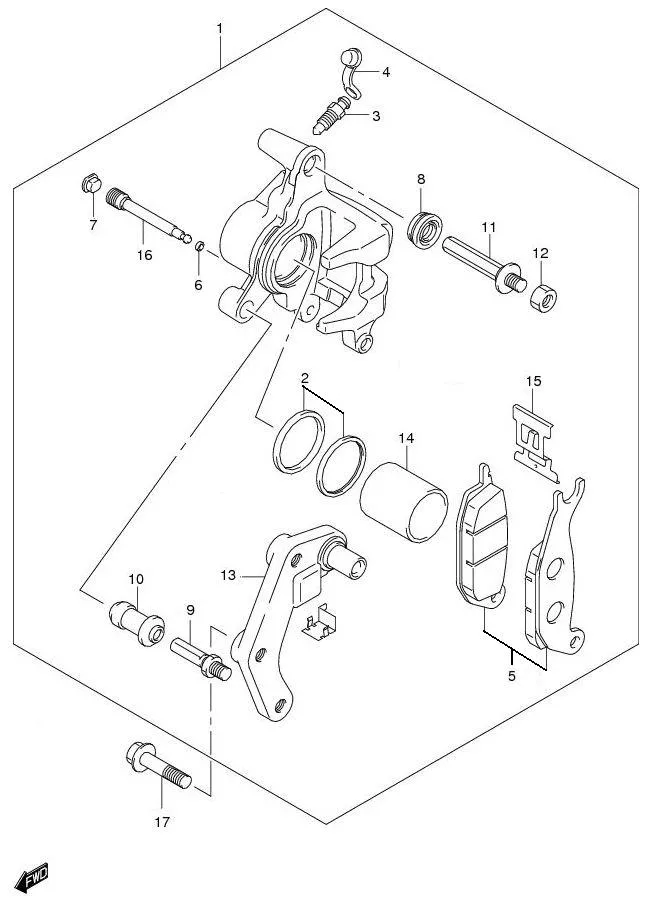

FIG.50 FRONT CALIPER

FIG.50 FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1-2 59100-41H20-000
SUB: 59100B41H20N000		 CALIPER ASSY, FRONT (BLACK) 1 Rp897.500
1-1 59100-41H00-000
SUB: 59100B41H00N000		 CALIPER ASSY, FRONT (MAG GOLD) 1 Rp984.000
2 59100-38860-000
SUB: 59100B38860N000		 •SEAL SET PISTON (2PCS) 1 Rp37.500
3 59121-01A00-000
SUB: 59121-01A00L000		 •SCREW BLEEDER 1 Rp14.500
4 59122-01A00-000
SUB: 59122B01A00N000		 •CAP BLEEDER 1 Rp3.000
5 69100-46800-000
SUB: 69100B46800N000		 •PAD SET NON ASBESTOS 1 Rp90.000
6 59145-37F00-000 •RING,STOPPER 1 Rp27.000
7 59146-20G00-000
SUB: 59146B20G00N000		 •PLUG PIN 1 Rp5.500
8 59303-14500-000
SUB: 59303B14500N000		 •BOOT B 1 Rp12.500
9 59382-14500-000
SUB: 59382B14500N000		 •PIN 1 Rp13.500
10 59386-13A00-000
SUB: 59386B13A00N000		 •BOOT PUSH 1 Rp14.000
11 59387-46G00-000
SUB: 59387B46G00N000		 •PIN BOLT 1 Rp23.500
12 59388-00B20-000
SUB: 59388B00B20N000		 •NUT 1 Rp28.500
13 DISCONTINUE
SUB: 59720B46G00N000		 •BRACKET 1 -
14 69104-20G00-000
SUB: 69104B20G00N000		 •PISTON SET 1 Rp169.000
15 69115-20G01-000
SUB: 69115B20G01N000		 •SPRING PAD 1 Rp35.000
16 69345-20G00-000
SUB: 69345B20G00N000		 •PIN HANGER 1 Rp25.000
17 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
