SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 PILLION FOOTRESTFIG.31 PILLION HANDLEFIG.32 FUEL TANKFIG.33 FUEL COCKFIG.34 FRAME COVERFIG.35 FRAME SIDE COVERFIG.36 FRONT LEG SHIELDFIG.37 REAR LEG SHIELDFIG.38 LEG SHIELD COVERFIG.39 LUGGAGE BOXFIG.40 FRONT FENDERFIG.41 HANDLE BARFIG.42 HANDLE COVERFIG.43 HANDLE LEVERFIG.44 REAR FENDERFIG.45 LABELFIG.46 SEATFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 REAR SHOCK ABSORBERFIG.53 REAR WHELL

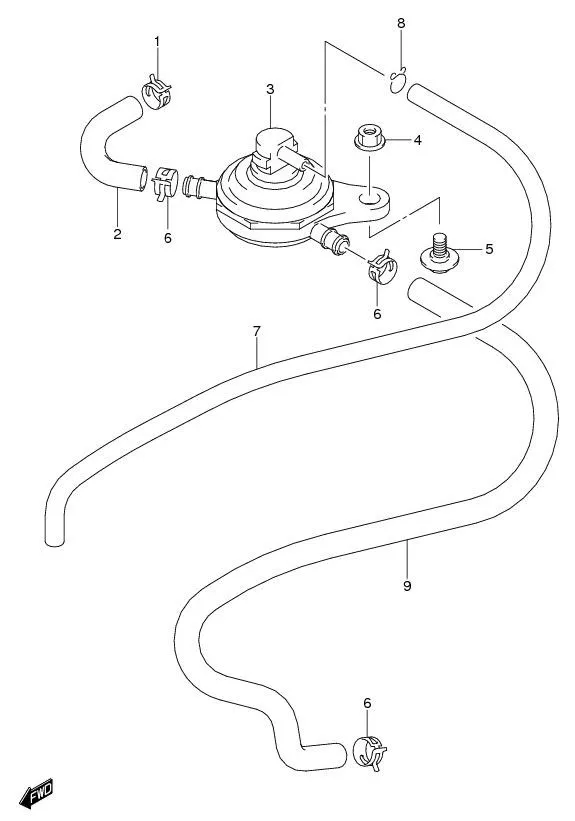

FIG.33 FUEL COCK

FIG.33 FUEL COCK
No No. Part Description Qty Price Per Pcs Remarks
1 09401-10409-000
SUB: 09401B10409N000		 CLIP 1 Rp7.500
2 44421-41H00-000 HOSE, FUEL 1 Rp30.500
3 44300-09G00-000
SUB: 44300B09G00N000		 COCK ASSY, FUEL 1 Rp278.000
4 08316-1006A-000
SUB: 08316B1006BN000		 NUT, COCK 1 Rp2.000
5 09111-06102-000
SUB: 09111B06102N000		 BOLT 1 Rp3.500
6 09401-09403-000
SUB: 09401B09403N000		 CLIP 3 Rp3.500
7 44425-41H00-000
SUB: 44425B41H00N000		 HOSE, VACUUM 1 Rp56.000
8 09401-06101-000
SUB: 09401B06101N000		 CLIP, VACUUM 1 Rp2.000
9 DISCONTINUE
SUB: 44422-41H00-000		 HOSE, CARB 1 -
10 36990-25G00-000
SUB: 09407-14403L000		 CLAMP, FUEL HOSE 1 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
