SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 PILLION FOOTRESTFIG.31 PILLION HANDLEFIG.32 FUEL TANKFIG.33 FUEL COCKFIG.34 FRAME COVERFIG.35 FRAME SIDE COVERFIG.36 FRONT LEG SHIELDFIG.37 REAR LEG SHIELDFIG.38 LEG SHIELD COVERFIG.39 LUGGAGE BOXFIG.40 FRONT FENDERFIG.41 HANDLE BARFIG.42 HANDLE COVERFIG.43 HANDLE LEVERFIG.44 REAR FENDERFIG.45 LABELFIG.46 SEATFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 REAR SHOCK ABSORBERFIG.53 REAR WHELL

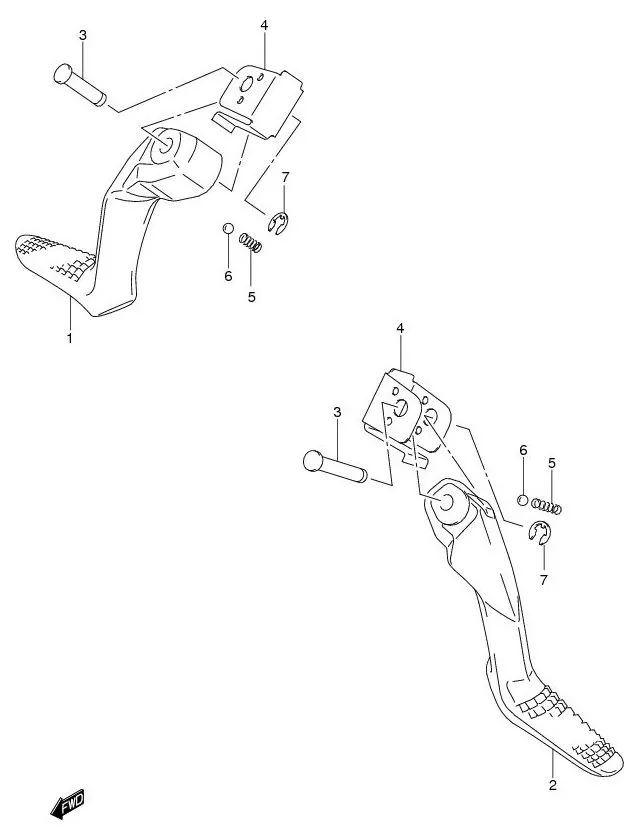

FIG.30 PILLION FOOTREST

FIG.30 PILLION FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 43611-41H00-000
SUB: 43611B41H00N000		 BAR, PILLION RH 1 Rp156.000
2 43621-41H00-000
SUB: 43621B41H00N000		 BAR, PILLION LH 1 Rp156.000
3 43641-41H00-000
SUB: 43641B41H00N000		 PIN 2 Rp6.500
4 43816-41H00-000
SUB: 43816B41H00N000		 PLATE 2 Rp15.000
5 DISCONTINUE
SUB: 09440B05040N000		 SPRING 2 -
6 06111M07004-000 BALL 2 Rp3.000
7 08332-1106A-000
SUB: 08332B1106AN000		 E RING 2 Rp8.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
