SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 PILLION FOOTRESTFIG.31 PILLION HANDLEFIG.32 FUEL TANKFIG.33 FUEL COCKFIG.34 FRAME COVERFIG.35 FRAME SIDE COVERFIG.36 FRONT LEG SHIELDFIG.37 REAR LEG SHIELDFIG.38 LEG SHIELD COVERFIG.39 LUGGAGE BOXFIG.40 FRONT FENDERFIG.41 HANDLE BARFIG.42 HANDLE COVERFIG.43 HANDLE LEVERFIG.44 REAR FENDERFIG.45 LABELFIG.46 SEATFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 REAR SHOCK ABSORBERFIG.53 REAR WHELL

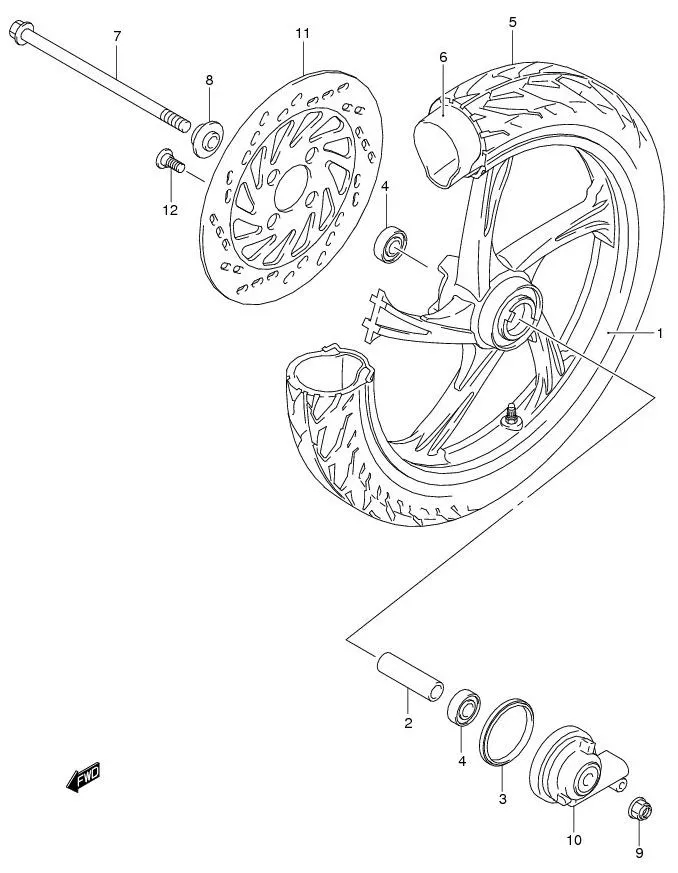

FIG.49 FRONT WHELL

FIG.49 FRONT WHELL
No No. Part Description Qty Price Per Pcs Remarks
1-1 54111-41H20-291
SUB: 54111B41H20N291		 WHEEL, FRONT (14X1.60) (BLACK 50% GLOSS) 1 Rp755.500
1-2 54111-41H20-X0J
SUB: 54111B41H20NX0J		 WHEEL, FRONT (14X1.60) (BLACK MET MATT) 1 Rp765.500
2 DISCONTINUE
SUB: 54731B41H10N000		 SPACER, FR HUB BEARING 1 -
3 54742-41H00-000
SUB: 54742B41H00N000		 SEAL, FRONT HUB 1 Rp9.500
4 08123-63007-000
SUB: 08123-63007L000		 BEARING, FRONT HUB 2 Rp32.500
5 55110-41H10-000
SUB: 55110B41H10N000		 TIRE, FRONT 1 Rp253.000
6 65200-46G10-000
SUB: 65200B46G10N000		 TUBE ASSY, WHEEL INNER 1 Rp59.500
7 54711-41H10-000
SUB: 54711B41H00N000		 AXLE, FRONT 1 Rp15.500
8 54750-46100-000
SUB: 54750-46100L000		 SPACER, FRONT AXLE RH 1 Rp12.500
9 08319-3110A-000
SUB: 08319B3110AN000		 NUT, FRONT AXLE 1 Rp4.500
10 54600-41H10-000
SUB: 54600B41H10N000		 BOX ASSY, SPEEDOMETER GEAR 1 Rp154.000
11 59211-09G50-000
SUB: 59211B09G50N000		 DISC, FRONT BRAKE 1 Rp215.000
12 59218-09G10-000
SUB: 59218B09G00N000		 BOLT, FRONT BRAKE DISC 4 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
