SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 PILLION FOOTRESTFIG.31 PILLION HANDLEFIG.32 FUEL TANKFIG.33 FUEL COCKFIG.34 FRAME COVERFIG.35 FRAME SIDE COVERFIG.36 FRONT LEG SHIELDFIG.37 REAR LEG SHIELDFIG.38 LEG SHIELD COVERFIG.39 LUGGAGE BOXFIG.40 FRONT FENDERFIG.41 HANDLE BARFIG.42 HANDLE COVERFIG.43 HANDLE LEVERFIG.44 REAR FENDERFIG.45 LABELFIG.46 SEATFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 REAR SHOCK ABSORBERFIG.53 REAR WHELL

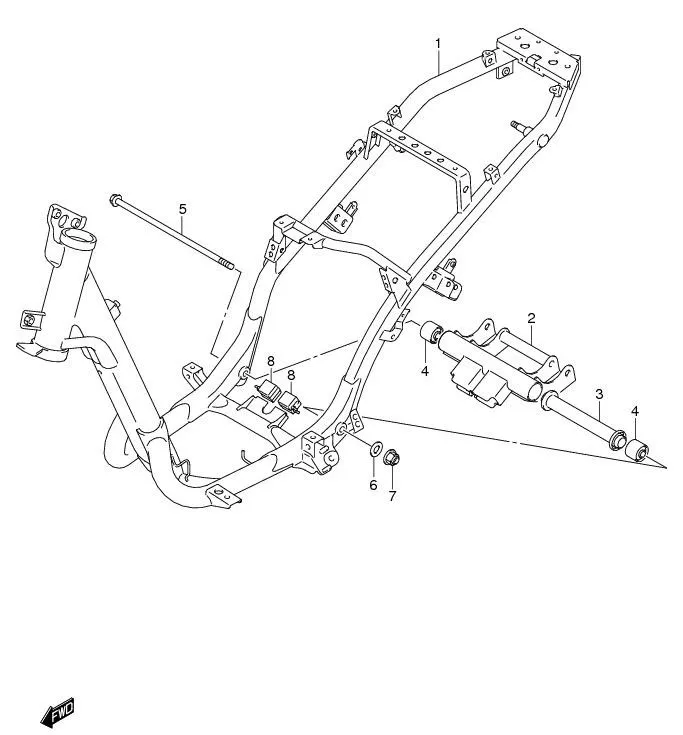

FIG.28 FRAME

FIG.28 FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 41100-41H10-000
SUB: 41100B41H10N000		 FRAME 1 Rp1.814.500
2 41180-41H00-000
SUB: 41180B41H00N000		 BRACKET, CRANKCASE 1 Rp185.000
3 41170-41H00-000
SUB: 41170B41H00N000		 SPACER 1 Rp54.000
4 41184-41H10-000
SUB: 41184B41H10N000		 BUSH 2 Rp114.000
5 DISCONTINUE
SUB: 09103B12102N000		 BOLT 1 -
6 41188-41H00-000 WASHER 1 Rp7.000
7 08319-3112A-000
SUB: 08319B3112AN000		 NUT 1 Rp7.000
8 DISCONTINUE
SUB: 41185B41H00N000		 CUSHION, STOP 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
