SKYDRIVE (UK125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.28 FRAMEFIG.29 STANDFIG.30 PILLION FOOTRESTFIG.31 PILLION HANDLEFIG.32 FUEL TANKFIG.33 FUEL COCKFIG.34 FRAME COVERFIG.35 FRAME SIDE COVERFIG.36 FRONT LEG SHIELDFIG.37 REAR LEG SHIELDFIG.38 LEG SHIELD COVERFIG.39 LUGGAGE BOXFIG.40 FRONT FENDERFIG.41 HANDLE BARFIG.42 HANDLE COVERFIG.43 HANDLE LEVERFIG.44 REAR FENDERFIG.45 LABELFIG.46 SEATFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 REAR SHOCK ABSORBERFIG.53 REAR WHELL

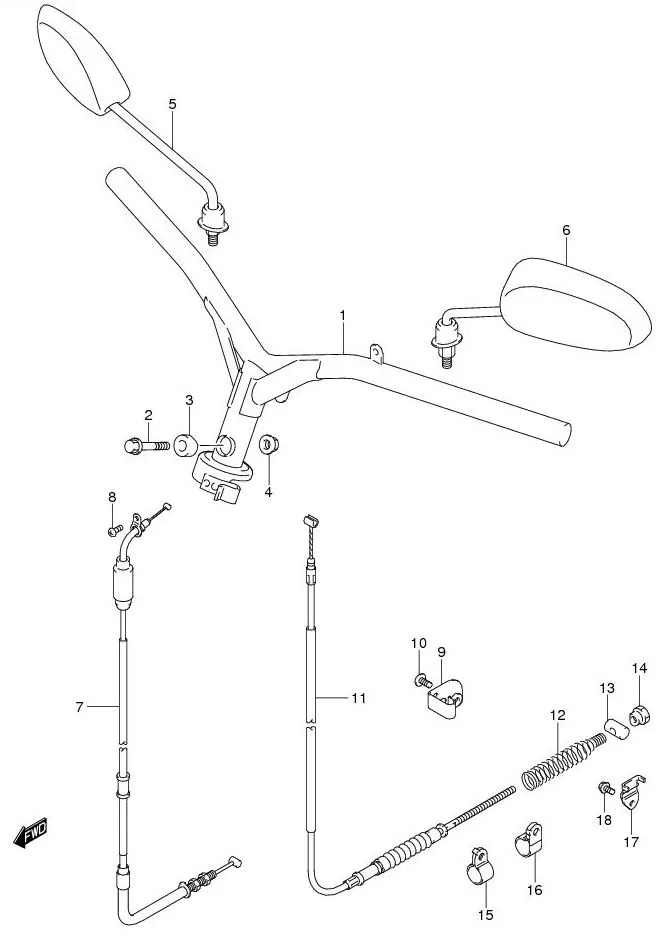

FIG.41 HANDLE BAR

FIG.41 HANDLE BAR
No No. Part Description Qty Price Per Pcs Remarks
1 56110-41H30-000
SUB: 56110B41H30N000		 HANDLEBAR 1 Rp188.000
2 09103-10126-000
SUB: 09103B10126N000		 BOLT 1 Rp28.500
3 51358-09G00-000
SUB: 51358B09G00N000		 STOPPER 1 Rp8.000
4 08319-3110A-000
SUB: 08319B3110AN000		 NUT 1 Rp4.500
5 56500-09GE1-000
SUB: 56500B09GE1N000		 MIRROR ASY, REAR VIEW RH 1 Rp84.500
6 56600-09GE1-000
SUB: 56600B09GE1N000		 MIRROR ASY, REAR VIEW LH 1 Rp84.500
7 58300-41H10-000
SUB: 58300B41H10N000		 CABLE ASSY, THROTTLE 1 Rp155.500
8 02112-0512A-000
SUB: 02112B0512AN000		 SCREW 1 Rp2.500
9 58620-41H00-000
SUB: 58620B41H00N000		 CLAMP, CABLE 1 Rp10.000
10 02142-0612A-000
SUB: 02142B0612BN000		 SCREW, CABLE CLAMP 1 Rp4.000
11 58510-41H10-000
SUB: 58510B41H10N000		 CABLE ASSY, REAR BRAKE 1 Rp157.000
12 58562-46G00-000
SUB: 58562B46G00N000		 SPRING 1 Rp4.000
13 09209-11002-000
SUB: 09209B11002N000		 PIN 1 Rp7.500
14 09150-06010-000
SUB: 09150B06010N000		 NUT 1 Rp4.500
15 DISCONTINUE
SUB: 58577B46G20N000		 CLAMP, BRAKE CABLE FRONT 1 -
16 DISCONTINUE
SUB: 58577B46G30N000		 CLAMP, BRAKE CABLE CENTER 1 -
17 DISCONTINUE
SUB: 58575B46G00N000		 PLATE, REAR 1 -
18 01547-0610A-000
SUB: 01547B0610AN000		 BOLT 1 Rp3.000
19 DISCONTINUE
SUB: 09407-25401L000		 CLAMP 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
